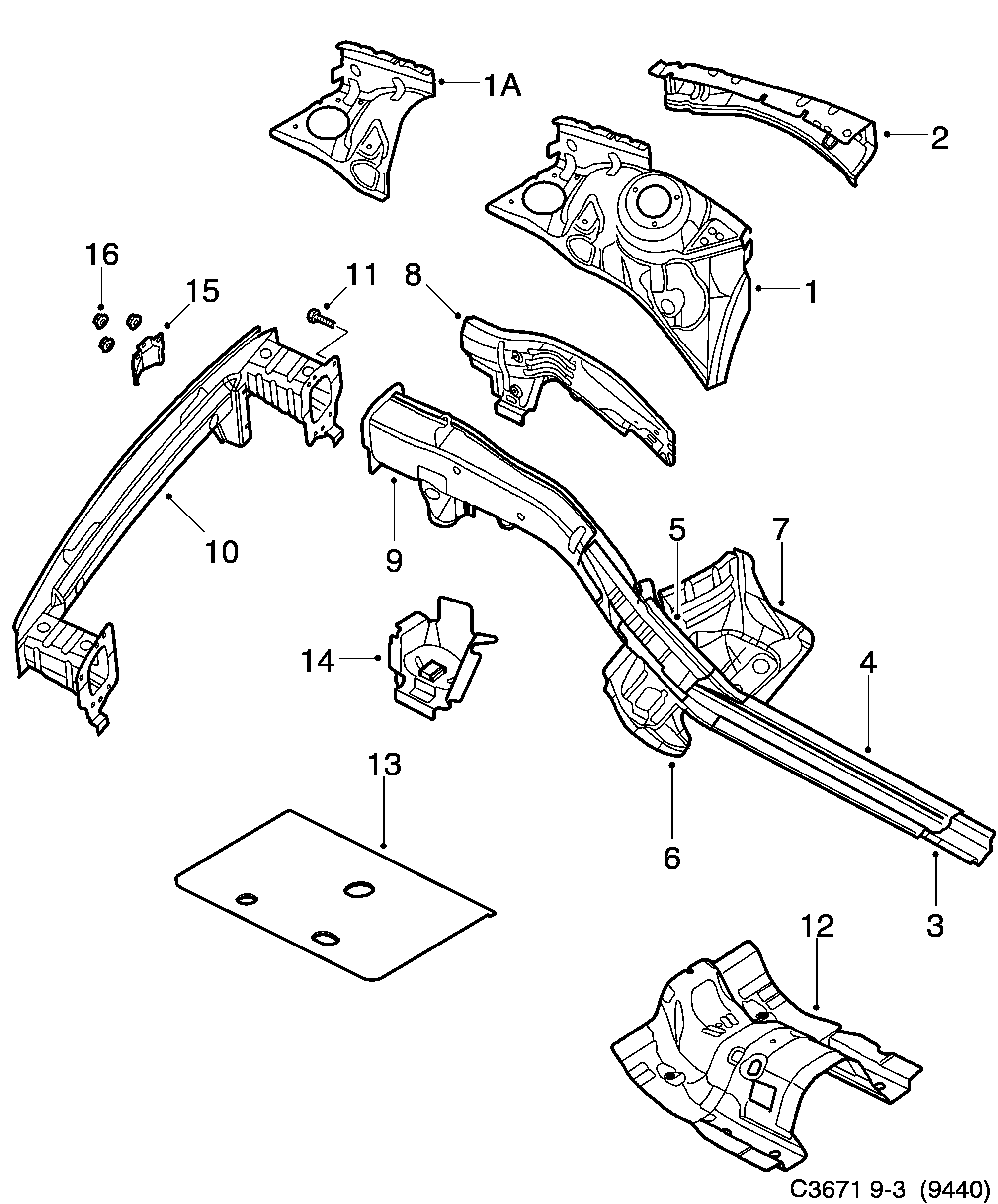

Group 8a Car body, external, section 250
| Pos | Article | Part No. |
|---|---|---|
| 1 | Wheel housing | 12797860 |
| 1 | Wheel housing | 93187379 (replaces 12797861) |
| 1 | Wheel housing | 93187379 |
| 1A | Wheel housing | 12799885 |
| 1A | Wheel housing | 12799886 |
| 2 | Reinforcement | 12797845 |
| 2 | Reinforcement | 12797846 |
| 3 | Reinforcing member | 93192278 (replaces 12797866) |
| 3 | Reinforcement | 93192278 |
| 3 | Reinforcing member | 93166883 (replaces 12801937) |
| 3 | Reinforcement | 93166883 |
| 4 | Extension | 12797867 |
| 4 | Extension | 12797873 |
| 5 | Cover plate | 12797863 |
| 5 | Cover plate | 12797869 |
| 6 | Extension | 12802407 |
| 6 | Extension | 12802408 |
| 7 | Support | 12797865 |
| 7 | Support | 12797871 |
| 8 | Cover plate | 12797864 |
| 8 | Cover plate | 12801428 |
| 9 | Reinforcing member | 12798771 |
| 9 | Reinforcing member | 12798773 |
| 10 | Front member | 12769713 (replaces 12797542) |
| 10 | Front member | 12769713 (replaces 12801057) |
| 10 | Impact bar | 12769713 |
| 11 | Screw | 12768930 (replaces 12805852) |
| 11 | Screw | 12768930 |
| 12 | Support member | 12797862 |
| 13 | Reinforcement | 12794427 |
| 14 | Support | 93174614 |
| 14 | Support | 93174615 |
| 15 | Support | 12844524 |
| 16 | Hexagon nut | 11514596 |
