Saab 9-3 (9440) 2004-2011 Hydraulic system

Group 8a Car body, external, section 235

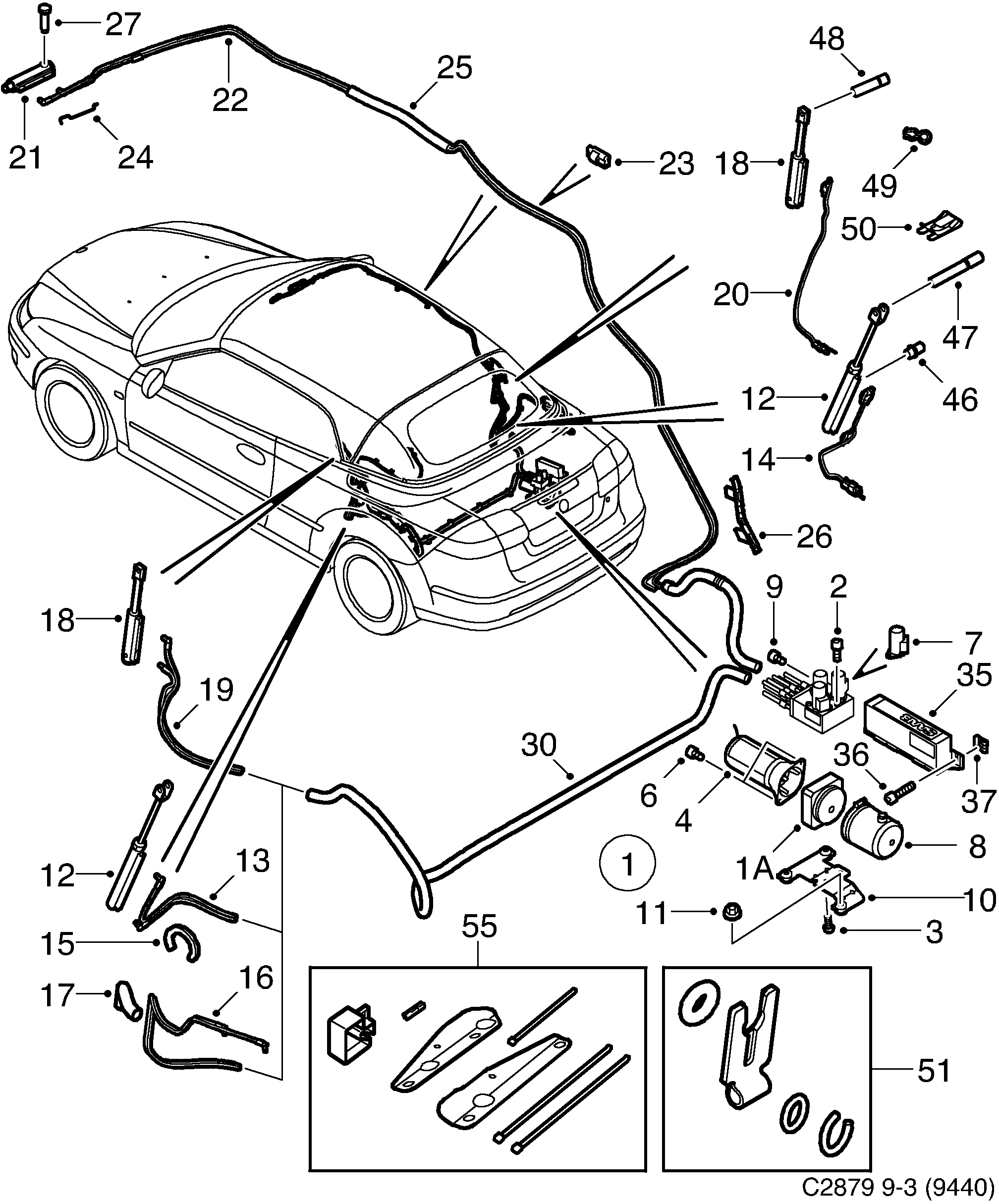

Saab 9-3 (9440) Hydraulic system diagram

Pos	Article	Part No.
1	Pump unit	12833522
2	Screw	12833933
3	Screw	12833934
4	Electrical motor	12833537
6	Screw	12833932
7	Valve	12833528
8	Oil reservoir	12833531
9	Screw	12833523
10	Retainer	12833539
11	Nut	11900445
12	Hydraulic cylinder	12833494
12	Hydraulic cylinder	12833495
13	Hydraulic hose	12833496
13	Hydraulic hose	12833498
14	Sensor	12833500
15	Hose guide	12833897
16	Hydraulic hose	12833503
16	Hydraulic hose	12833505
17	Cable protection	12833939
18	Hydraulic cylinder	12833508
18	Hydraulic cylinder	12833509
19	Hydraulic hose	12833510
19	Hydraulic hose	12833512
20	Sensor	12833514
21	Hydraulic cylinder	12833515
22	Kit	12833516
23	Clip	12833574
24	Locking wire	12833485
25	Cable protection	12833938
26	Cable channel	12833896
27	Bearing bolt	12833579
30	Cable harness	12833519
35	Control unit	12776215 (replaces 12833518)
35	Control unit	12776215
37	Clip	92152376
46	Bearing bolt	12833473
47	Clevis pin	12833471
48	Clevis pin	12833472
49	Locking pin	12833474
50	Clip	92152377
51	O-ring kit	12833524
55	Repair kit	12765357
	Tie strap	12765356
	Tie strap	11900512
	Mounting tool	12765358
