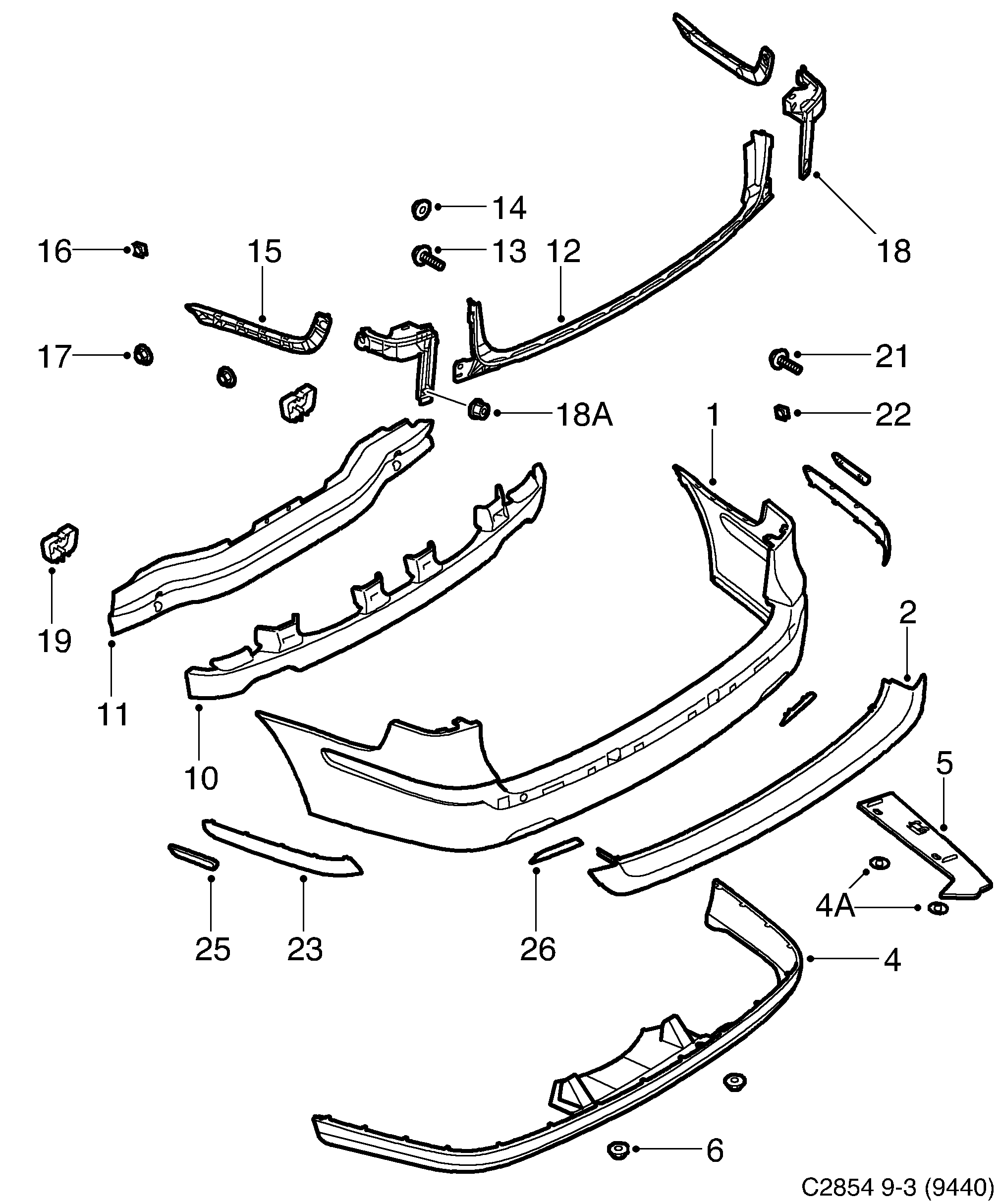

Group 8a Car body, external, section 1720
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 12805303 |
| 1 | Cover | 12769710 |
| 2 | Decor strip | 12796661 |
| 2 | Decor strip | 12756062 |
| 4 | Spoiler | 12796665 |
| 4 | Spoiler | 12805321 |
| 4 | Spoiler | 12758655 |
| 4A | Rivet | 90214832 (replaces 90214255) |
| 5 | Air deflector | 12805145 |
| 6 | Nut | 90413589 |
| 10 | Foam part | 12796663 |
| 11 | Rail | 12804394 |
| 12 | Bracket | 12794232 |
| 12 | Bracket | 12777812 |
| 13 | Screw | 24413560 |
| 14 | Nut | 90506890 |
| 15 | Bracket | 12794234 |
| 15 | Bracket | 12794235 |
| 16 | Clip nut | 11094111 |
| 17 | Nut | 92152037 |
| 18 | Bracket | 12794228 |
| 18 | Bracket | 12794229 |
| 18A | Plastic nut | 90482479 |
| 19 | Spacer | 12794233 |
| 21 | Hexagon screw | 92150086 |
| 22 | Nut | 12759568 |
| 23 | Decor strip | 12796685 |
| 23 | Decor strip | 12796686 |
| 23 | Decor strip | 12796659 |
| 23 | Decor strip | 12796660 |
| 25 | Reflector tag | 12793990 |
| 25 | Reflector tag | 12793991 |
| 26 | Reflector tag | 12777306 (replaces 12831581) |
| 26 | Reflector tag | 12777307 (replaces 12831582) |
