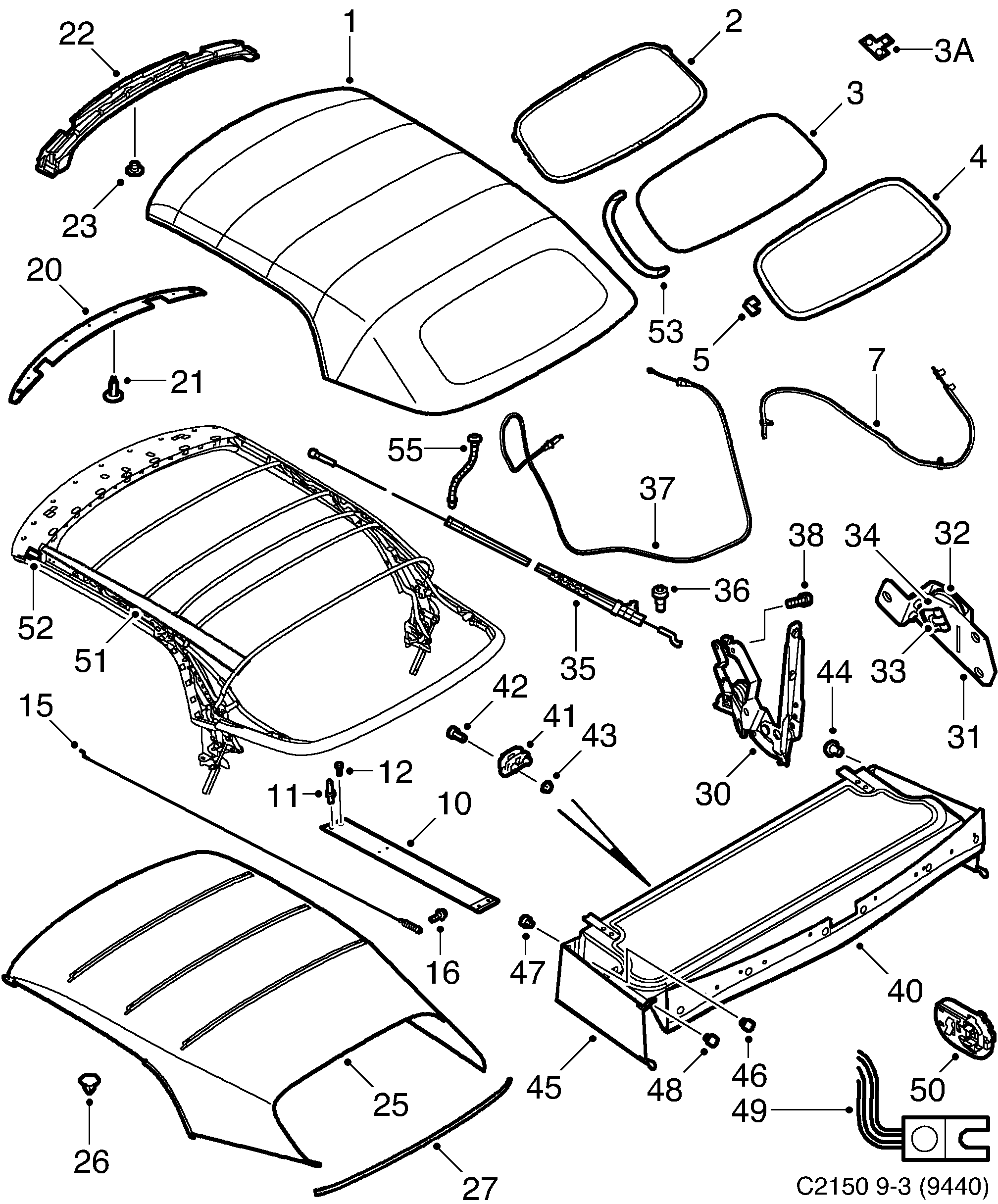

Group 8a Car body, external, section 170
| Pos | Article | Part No. |
|---|---|---|
| Top cloth | 12764713 (replaces 12833642) | |
| Top cloth | 12764713 | |
| Top cloth | 12780345 | |
| Top cloth | 12764712 (replaces 12833641) | |
| Top cloth | 12764712 | |
| Top cloth | 12780344 | |
| Top cloth | 12764711 (replaces 12833640) | |
| Top cloth | 12764711 | |
| Top cloth | 12764711 (replaces 12769235) | |
| Top cloth | 12780343 | |
| Top cloth | 12780342 (replaces 12833639) | |
| Top cloth | 12780342 (replaces 12764710) | |
| Top cloth | 12780342 (replaces 12769234) | |
| Top cloth | 12780342 | |
| Top cloth | 12772912 | |
| Top cloth | 12780347 | |
| Top cloth | 12783804 | |
| 1 | Top cloth | 12833599 |
| 1 | Top cloth | 12833600 |
| 1 | Top cloth | 12778134 |
| 1 | Top cloth | 12845848 |
| 2 | Rear window frame | 12833595 |
| 3 | Rear window | 12764709 (replaces 12833552) |
| 3 | Rear window | 12764709 |
| 3A | Connecting tab | 12788931 |
| 4 | Seal | 12833553 |
| 5 | Clip | 12833575 |
| 7 | Cable harness | 12833646 |
| 10 | Stay pad | 12833458 |
| 10 | Stay pad | 12833459 |
| 11 | Rivet | 12833460 |
| 12 | Screw | 12833649 |
| 15 | Cable | 12833573 |
| 16 | Screw | 92152383 |
| 20 | Fixed plate | 12833558 |
| 21 | Screw | 12833559 |
| 21 | Plastic nut | 12759532 |
| 22 | Cover | 12833550 |
| 22 | Cover | 12833551 |
| 23 | Plug | 12833197 |
| 23 | Plug | 12833353 |
| 25 | Headlining | 12833597 |
| 25 | Headlining | 12833598 |
| 26 | Clip | 12833556 |
| 27 | Tape | 12833578 |
| 30 | Drive unit | 12833572 |
| 31 | Retainer | 12833477 |
| 32 | Trailing wheel | 12833478 |
| 33 | Bearing bolt | 12833544 |
| 34 | Clip | 92152376 |
| 35 | Cable | 12833475 |
| 36 | Bearing bolt | 12833476 |
| 37 | Cable | 12833582 |
| 38 | Screw | 11900354 |
| 40 | Cloth | 12852824 (replaces 12830165) |
| 40 | Cloth | 12852824 |
| 41 | Hinge | 12831093 |
| 42 | Screw | 92150505 |
| 42 | Screw | 12779831 |
| 43 | Nut | 11900428 |
| 44 | Screw | 12780621 (replaces 92152215) |
| 45 | Cover | 12832620 |
| 45 | Cover | 12832621 |
| 46 | Bushing | 92152313 |
| 47 | Clip | 92152314 |
| 48 | Clip | 24463723 |
| 49 | Sensor | 12772594 (replaces 12833637) |
| 49 | Sensor | 12772594 |
| 50 | Bracket | 12760318 |
| 51 | Stay pad | 12833688 |
| 51 | Stay pad | 12833689 |
| 52 | Cover | 12833686 |
| 52 | Cover | 12833687 |
| 53 | Rear window frame | 12833684 |
| 53 | Rear window frame | 12833685 |
| 55 | Draining hose | 12831731 |
