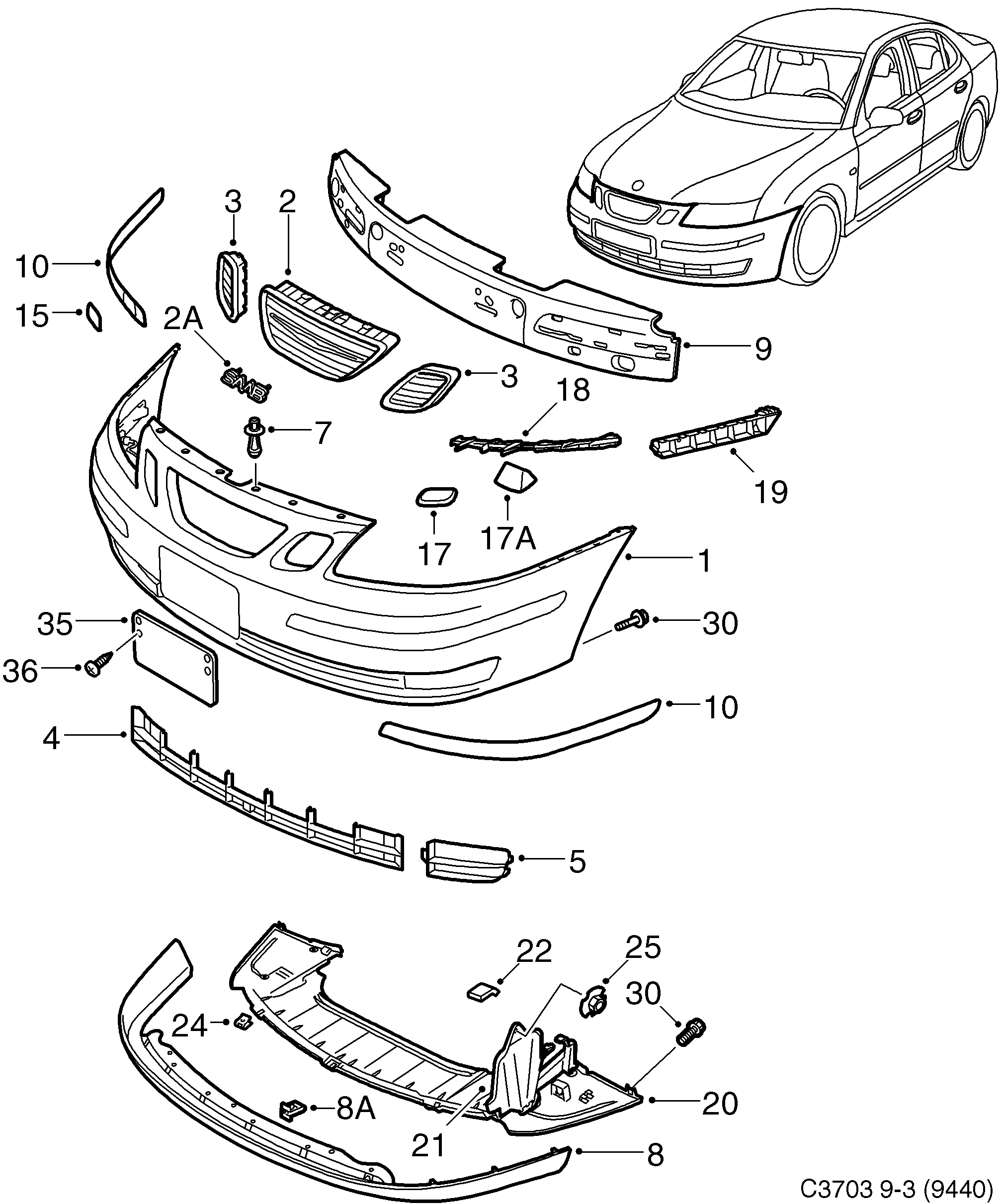

Group 8a Car body, external, section 1620
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cover | 12797996 |
| 1 | Cover | 12769708 |
| 1 | Cover | 12787218 |
| 1 | Cover | 12769709 |
| 1 | Cover | 12804116 |
| 2 | Grille | 12797998 |
| 2A | Emblem | 4830071 |
| 3 | Grille | 12797997 |
| 3 | Grille | 12797999 |
| 4 | Grille | 12786008 |
| 5 | Grille | 12786010 |
| 5 | Grille | 12786011 |
| 7 | Rivet | 92152011 |
| 8 | Spoiler | 12797804 |
| 8 | Spoiler | 12788060 |
| 8 | Spoiler | 12759772 (replaces 12802143) |
| 8 | Spoiler | 12759772 |
| 8A | Clip | 12763576 |
| 9 | Foam part | 12787219 |
| 10 | Decor strip | 12787998 |
| 10 | Decor strip | 12787999 |
| 10 | Decor strip | 12788001 |
| 10 | Decor strip | 12788002 |
| 15 | Cover | 12786009 |
| 17 | Cover | 12798000 |
| 17 | Cover | 12798002 |
| 17A | Cover | 12805260 |
| 18 | Attaching rail | 12786310 |
| 18 | Attaching rail | 12786311 |
| 19 | Attaching rail | 12785981 |
| 19 | Attaching rail | 12785982 |
| 20 | Air shield | 12787169 |
| 21 | Support | 12777898 (replaces 12787167) |
| 21 | Support | 12787169 (replaces 12806075) |
| 21 | Support | 12787168 |
| 21 | Support | 12777898 |
| 22 | Support | 12799598 |
| 24 | Clip nut | 11094111 |
| 25 | Nut | 92152037 |
| 25 | Nut | 92151925 (replaces 92150596) |
| 25 | Nut | 12771572 |
| 30 | Hexagon screw | 92150086 |
| 35 | Bracket | 12786338 |
| 36 | Screw | 92153219 (replaces 92150384) |
| 36 | Mounting kit | 12804284 |
