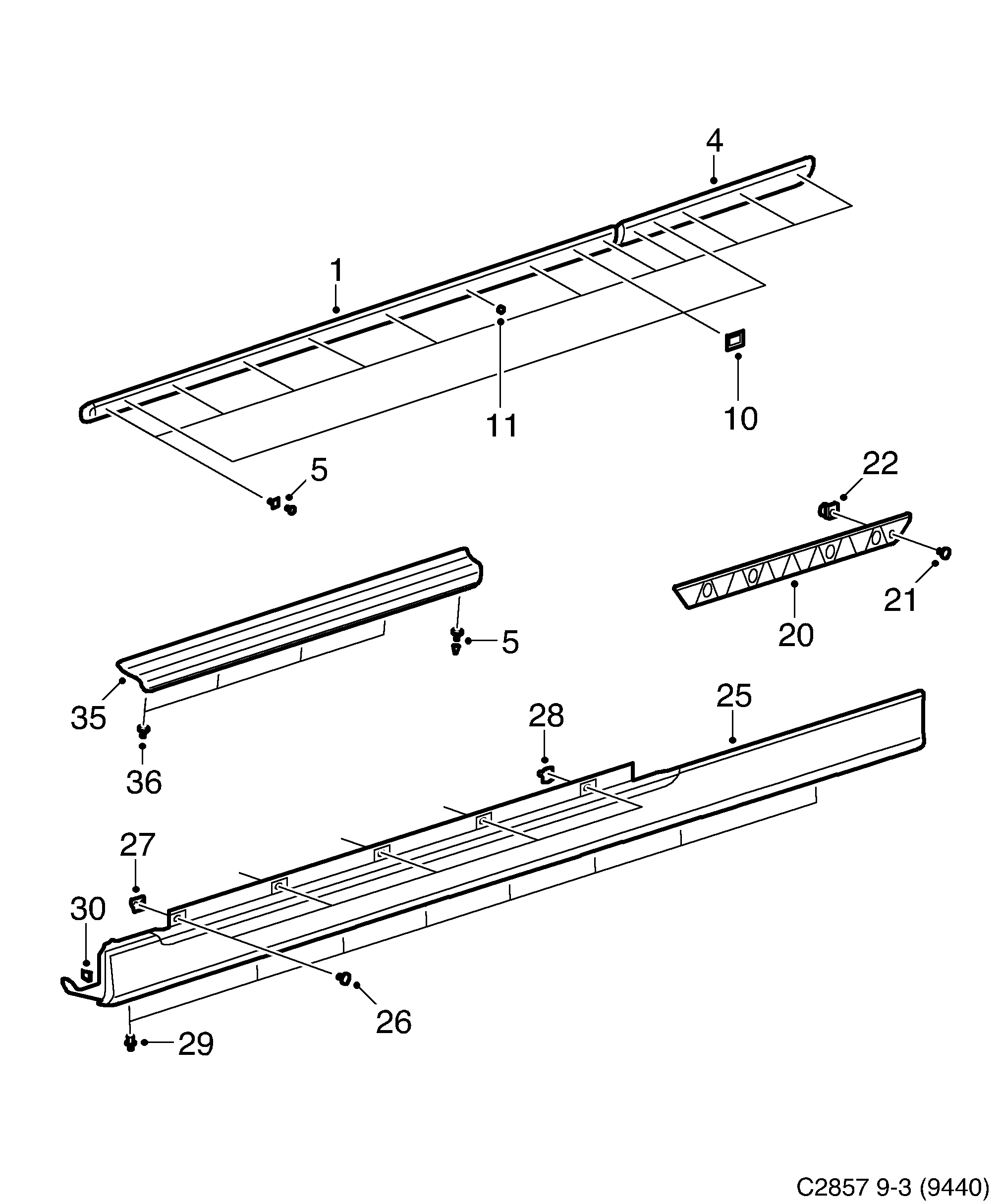

Group 8a Car body, external, section 1195
| Pos | Article | Part No. |
|---|---|---|
| 1 | Decor strip | 12830175 |
| 1 | Decor strip | 12830178 |
| 1 | Decor strip | 12779885 |
| 1 | Decor strip | 12779886 |
| 5 | Clip | 92152204 |
| 10 | Rubber seal | 12791498 |
| 4 | Decor strip | 12830182 |
| 4 | Decor strip | 12830184 |
| 4 | Decor strip | 12779887 |
| 4 | Decor strip | 12779888 |
| 11 | Bushing | 92152202 |
| 20 | Attaching rail | 12831286 |
| 21 | Screw | 92151994 (replaces 92152213) |
| 22 | Press nut | 92152015 |
| 25 | Sill protection | 12830196 |
| 25 | Sill protection | 12830200 |
| 25 | Sill protection | 12832823 |
| 25 | Sill protection | 12832824 |
| 25 | Sill protection | 12803330 |
| 25 | Sill protection | 12803340 |
| 26 | Screw | 92152146 |
| 27 | Bushing | 92152148 |
| 28 | Bushing | 92152040 |
| 29 | Expanding rivet | 92152321 |
| 30 | Clip nut | 11094111 |
| 35 | Sill protection | 12830192 |
| 35 | Sill protection | 12830194 |
| 35 | Sill protection | 12831845 |
| 35 | Sill protection | 12831846 |
| 35 | Sill protection | 12831843 |
| 35 | Sill protection | 12831844 |
| 35 | Sill protection | 12804123 |
| 35 | Sill protection | 12804124 |
| 35 | Sill protection | 12772844 |
| 35 | Sill protection | 12772845 |
| 35 | Sill protection | 12804912 |
| 35 | Sill protection | 12804916 |
| 35 | Sill protection | 12804913 |
| 35 | Sill protection | 12804917 |
| 35 | Sill protection | 12804914 |
| 35 | Sill protection | 12804918 |
| 35 | Sill protection | 12756411 |
| 35 | Sill protection | 12756412 |
| 36 | Clip | 92152149 |
