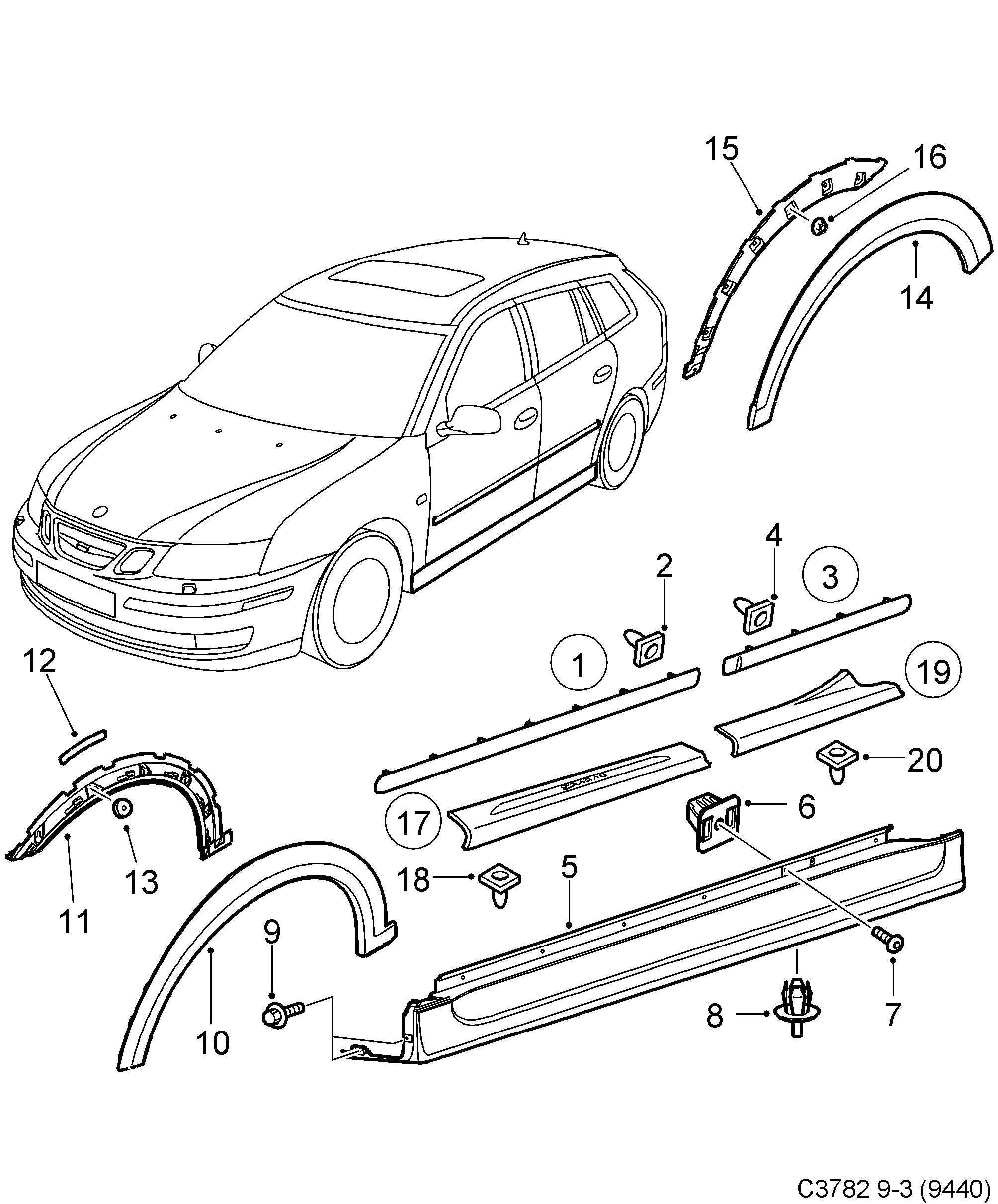

Group 8a Car body, external, section 1192
| Pos | Article | Part No. |
|---|---|---|
| 1 | Decor strip | 12786316 |
| 1 | Decor strip | 12786317 |
| 2 | Clip | 92152204 |
| 3 | Decor strip | 12786324 |
| 3 | Decor strip | 12786325 |
| 5 | Sill protection | 12785877 |
| 5 | Sill protection | 12785878 |
| 5 | Sill protection | 12800621 |
| 5 | Sill protection | 12800622 |
| 5 | Sill protection | 12800623 |
| 5 | Sill protection | 12800624 |
| 5 | Sill protection | 12781608 |
| 5 | Sill protection | 12781609 |
| 6 | Bushing | 92152040 |
| 7 | Screw | 92153006 (replaces 92150386) |
| 8 | Rivet | 90138810 |
| 9 | Hexagon screw | 92150086 |
| 9 | Screw | 92153149 |
| 10 | Plate | 12841667 |
| 10 | Plate | 12841668 |
| 11 | Retainer | 12841666 |
| 11 | Retainer | 12841665 |
| 12 | Protective foil | 12849751 |
| 13 | Clip | 12845011 |
| 14 | Plate | 12841664 |
| 14 | Plate | 12841663 |
| 15 | Retainer | 12841662 |
| 15 | Retainer | 12841661 |
| 16 | Nut | 11089471 |
| 17 | Sill protection | 12786332 |
| 17 | Sill protection | 12786333 |
| 17 | Sill protection | 12803114 |
| 17 | Sill protection | 12803117 |
| 17 | Sill protection | 12803115 |
| 17 | Sill protection | 12803118 |
| 17 | Sill protection | 12803116 |
| 17 | Sill protection | 12803119 |
| 17 | Sill protection | 12781860 |
| 17 | Sill protection | 12781861 |
| 17 | Sill protection | 12783600 |
| 17 | Sill protection | 12783601 |
| 18 | Clip | 92152182 |
| 19 | Sill protection | 12786334 |
| 19 | Sill protection | 12786335 |
