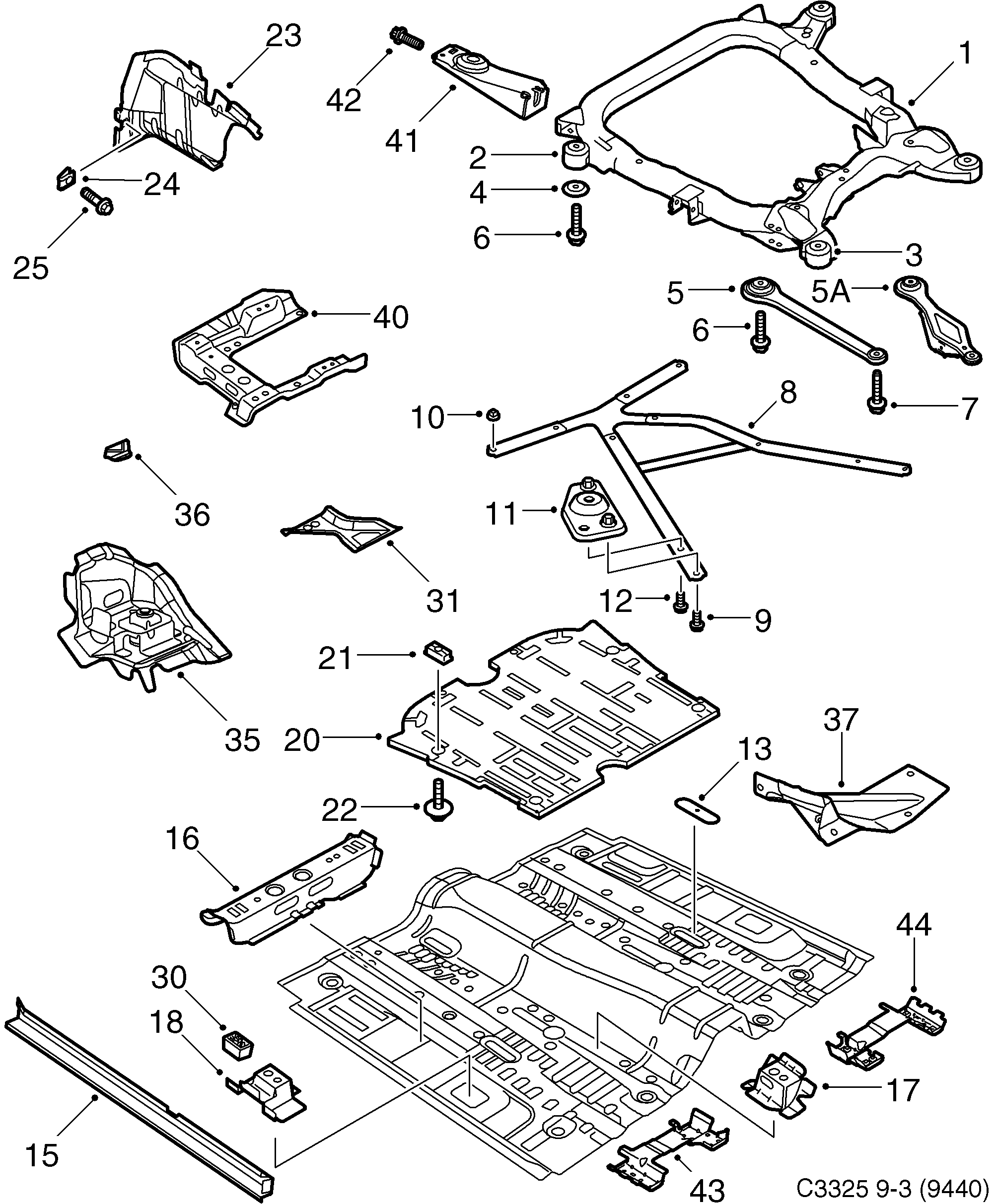

Group 8a Car body, external, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Frame | 24401525 |
| 1 | Frame | 12779173 |
| 1 | Frame | 12805261 |
| 1 | Frame | 12779175 (replaces 12831398) |
| 1 | Frame | 12762721 (replaces 12805905) |
| 1 | Frame | 12762721 |
| 1 | Frame | 12762720 |
| 1 | Frame | 12777984 |
| 2 | Bushing | 13247173 (replaces 24401110) |
| 2 | Bushing | 12831239 |
| 3 | Bushing | 13247174 (replaces 24445293) |
| 3 | Bushing | 12832833 |
| 3 | Bushing | 12759331 |
| 4 | Washer | 24404106 |
| 5 | Bracket | 12798599 |
| 5A | Support | 12842677 (replaces 12842435) |
| 5A | Support | 12842677 |
| 6 | Screw | 13122435 |
| 6 | Hexagon screw | 11102621 |
| 7 | Screw | 11102611 |
| 8 | Front axle stay | 12831387 |
| 8 | Front axle stay | 12805522 |
| 8 | Brace | 12764825 |
| 9 | Hexagon screw | 11900186 |
| 9 | Hexagon screw | 92153206 (replaces 92150029) |
| 9 | Hexagon screw | 92153206 |
| 10 | Cage nut | 24431684 |
| 11 | Bushing | 12831240 |
| 11 | Bushing | 12831291 |
| 12 | Hexagon screw | 92152110 |
| 13 | Plug | 24405611 |
| 15 | Sill plate | 12797831 |
| 15 | Sill plate | 12797832 |
| 16 | Member | 12797838 |
| 16 | Member | 12797839 |
| 17 | Reinforcement | 93194547 (replaces 12797840) |
| 17 | Reinforcement | 93194547 |
| 17 | Reinforcement | 93194548 (replaces 12797841) |
| 17 | Reinforcement | 93194548 |
| 18 | Seat bracket | 12797842 |
| 18 | Seat bracket | 12797843 |
| 20 | Sound insulating baffle | 12788541 |
| 20 | Sound insulating baffle | 12765980 (replaces 12804497) |
| 20 | Sound insulating baffle | 12765980 |
| 21 | Expanding nut | 92152304 |
| 21 | Nut | 24441317 |
| 22 | Hexagon screw | 92150086 |
| 22 | Screw | 92153149 |
| 23 | Sound insulating baffle | 12798775 |
| 24 | Clip nut | 11094111 |
| 30 | Jack support | 12842964 (replaces 12794590) |
| 31 | Reinforcement | 12832553 |
| 31 | Reinforcement | 12832554 |
| 35 | Support | 12832644 |
| 35 | Support | 12832645 |
| 36 | Bracket | 12832555 |
| 36 | Bracket | 12832556 |
| 37 | Bracket | 12832557 |
| 37 | Bracket | 12832558 |
| 40 | Seat member | 12832559 |
| 40 | Crossmember | 12772590 |
| 40 | Seat member | 12832560 |
| 40 | Crossmember | 12772591 |
| 41 | Bracket | 13140216 |
| 42 | Screw | 90529713 |
| 43 | Reinforcement | 93192563 |
| 44 | Reinforcement | 93192564 |
