Saab 9-3 (9440) 2008-2011 Rear axle All wheel drive (XWD)

Group 7 Suspension system, section 350

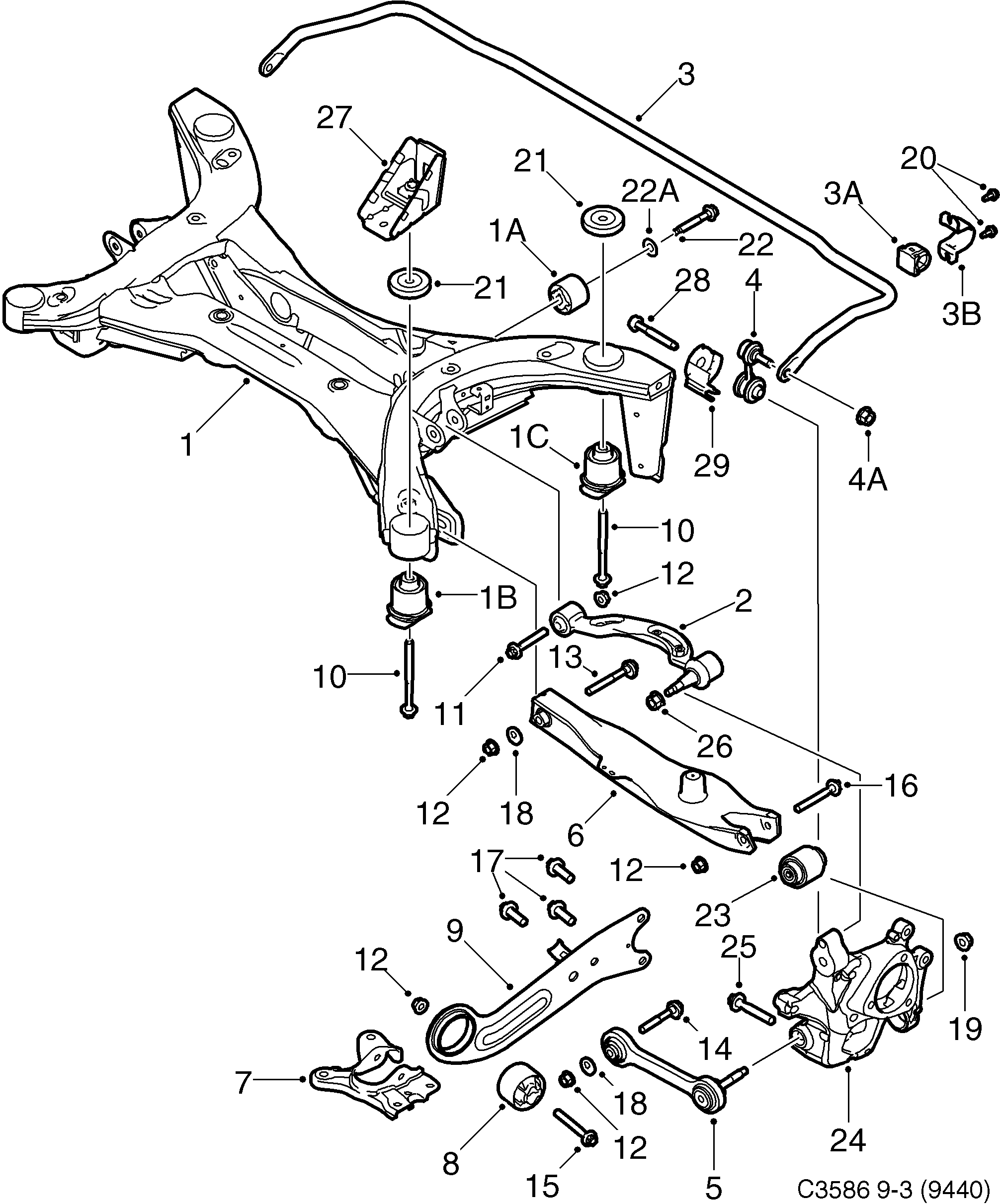

Saab 9-3 (9440) Rear axle All wheel drive (XWD) diagram

Pos	Article	Part No.
1	Rear axle	12777847
1	Rear axle	12845896
1A	Bushing	13243708
1A	Bushing	12845897
1B	Bushing	12762370
1C	Bushing	12786341
2	Control arm, upper	12777855
3	Stabilizer bar	12777972
3A	Stabilizer bar	12777971
3B	Brace	13192892
4	Shackle	12777969
4A	Nut	11516078
5	Cross stay	12777856
6	Cross stay	24417090
7	Bracket	13204451
7	Bracket	13204452
8	Damper bushing	24452034
9	Longitudinal link	24436245
9	Longitudinal link	24436246
10	Screw	11102641
11	Hexagon screw	11102431
12	Nut	11094488
13	Hexagon screw	24422973
14	Hexagon screw	24422972
15	Hexagon screw	11102401
16	Hexagon screw	11102411
17	Screw	11103321
18	Washer	24428132
19	Nut	11094506
21	Washer	12781348
22	Hexagon screw	11609598
22A	Washer	92153204
23	Bushing	24469643
24	Bracket	12842613
24	Bracket	12842614
25	Screw	13108188
25	Screw	11570675
26	Nut	11900443
27	Bracket	12793360
27	Bracket	12793361
28	Screw	92151523
29	Sleeve	12784312
29	Sleeve	12784313
