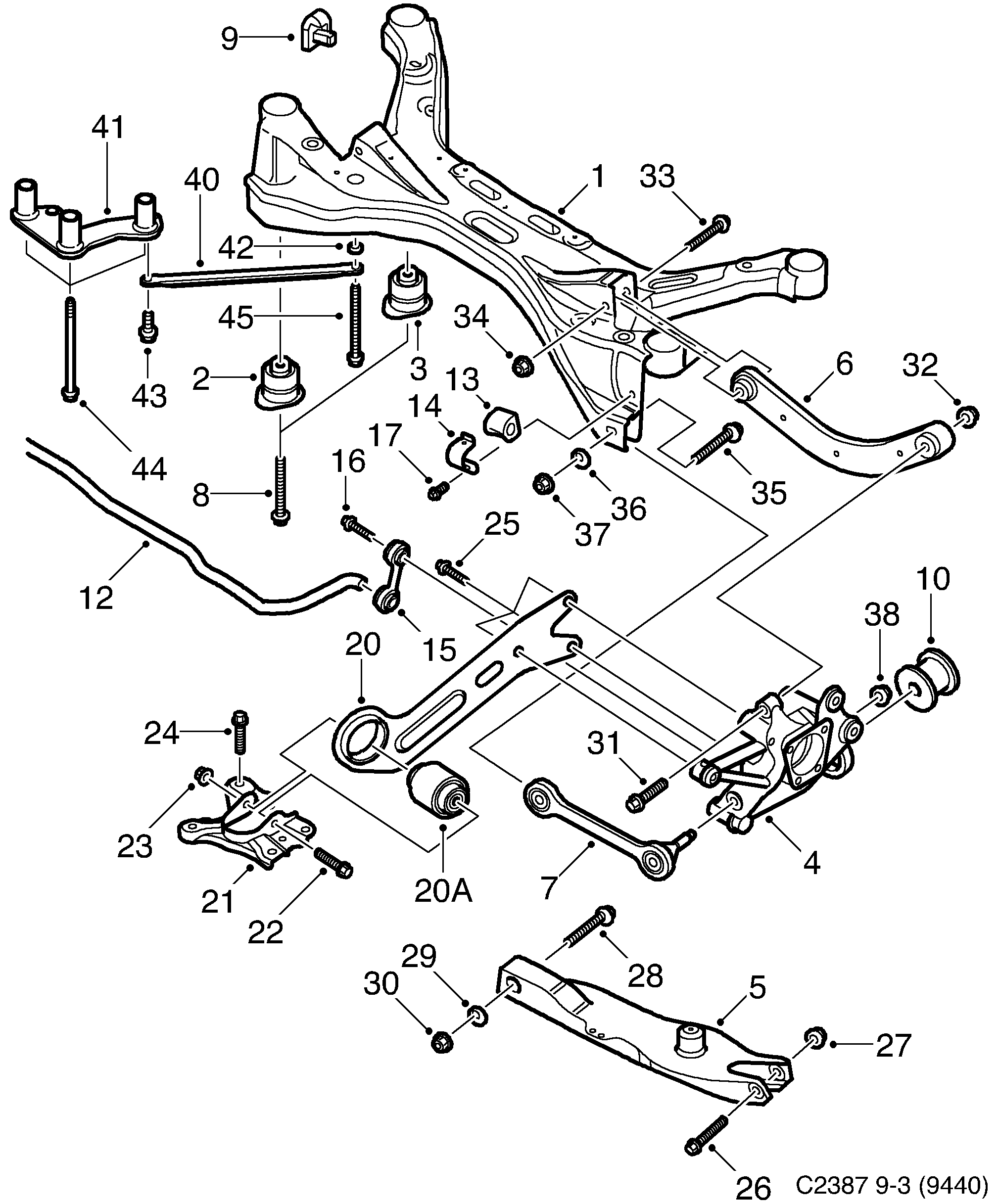

Group 7 Suspension system, section 300
| Pos | Article | Part No. |
|---|---|---|
| 1 | Rear axle | 12787125 |
| 1 | Rear axle | 12756396 |
| 1 | Rear axle housing | 12761536 |
| 1 | Support frame | 12831642 |
| 2 | Bushing | 12786340 |
| 2 | Bushing | 12762370 |
| 2 | Bushing | 12831239 |
| 3 | Bushing | 12786341 |
| 4 | Spindle housing | 12799589 |
| 4 | Spindle housing | 12756708 |
| 4 | Spindle housing | 12799590 |
| 4 | Spindle housing | 12756709 |
| 10 | Bushing | 24469643 |
| 5 | Cross stay | 24417090 |
| 6 | Cross stay | 13230274 (replaces 13105744) |
| 6 | Control arm, upper | 13230274 |
| 7 | Cross stay | 12793813 |
| 8 | Screw | 11102641 |
| 8 | Hexagon screw | 11589278 (replaces 92152140) |
| 8 | Hexagon screw | 11102621 |
| 9 | Protecting casing | 24466639 |
| 12 | Stabilizer bar | 24457382 (replaces 24459743) |
| 12 | Stabilizer bar | 24457381 |
| 12 | Stabilizer bar | 24457383 (replaces 24459744) |
| 12 | Stabilizer bar | 24457382 |
| 12 | Stabilizer bar | 24457383 |
| 13 | Bushing | 24457385 |
| 13 | Bushing | 24457386 |
| 13 | Bushing | 24457843 |
| 14 | Cap | 24468096 |
| 15 | Link | 13104120 |
| 16 | Hexagon screw | 11102491 |
| 17 | Hexagon screw | 11102971 |
| 20 | Longitudinal link | 24436245 |
| 20 | Longitudinal link | 24436246 |
| 20A | Bushing | 12756395 (replaces 12795024) |
| 20A | Bushing | 12756395 |
| 21 | Bracket | 13204451 (replaces 24402285) |
| 21 | Bracket | 13204451 |
| 21 | Bracket | 13204452 (replaces 24402286) |
| 21 | Bracket | 13204452 |
| 22 | Hexagon screw | 11102401 |
| 23 | Nut | 11094488 (replaces 90576123) |
| 23 | Nut | 11094488 |
| 24 | Hexagon screw | 13198720 (replaces 11102651) |
| 24 | Flange screw | 13198720 |
| 24 | Hexagon screw | 11589278 |
| 25 | Bolt | 11589351 |
| 26 | Hexagon screw | 11102411 |
| 28 | Hexagon screw | 24422973 |
| 29 | Washer | 24428132 |
| 31 | Hexagon screw | 11102421 |
| 31 | Torx screw | 12767679 |
| 32 | Nut | 11094506 |
| 32 | Nut | 11900443 |
| 33 | Hexagon screw | 11102431 |
| 35 | Hexagon screw | 24422972 |
| 40 | Brace | 12831584 |
| 41 | Bracket | 12831586 |
| 41 | Bracket | 12781399 |
| 41 | Bracket | 12831587 |
| 41 | Bracket | 12781400 |
| 42 | Sleeve | 12851160 |
| 43 | Hexagon screw | 11900040 |
| 45 | Hexagon screw | 13198721 (replaces 24435830) |
