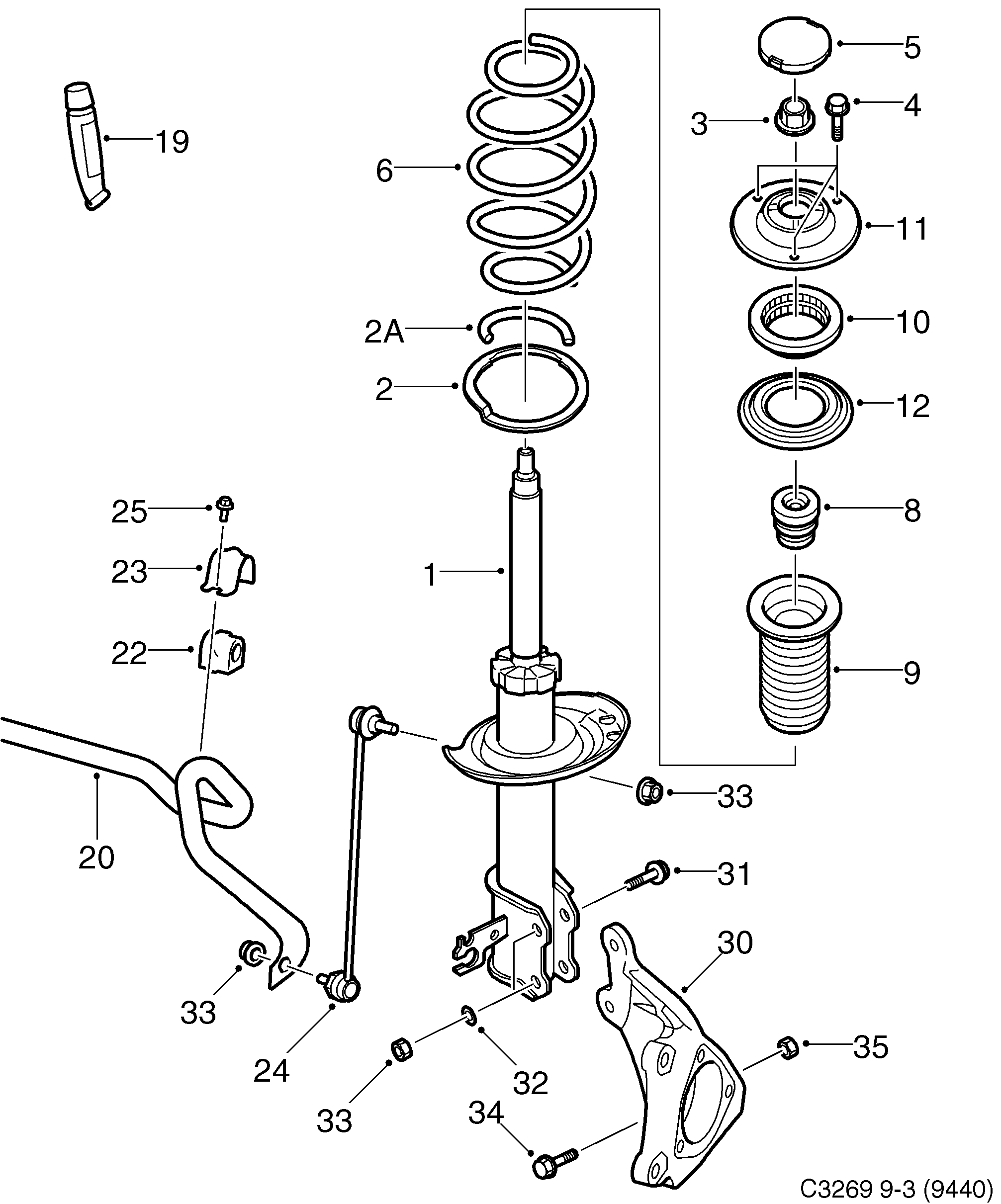

Group 7 Suspension system, section 125
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring strut | 12772032 (replaces 12762863) |
| 1 | Spring strut | 12772033 (replaces 12762864) |
| 1 | Spring strut | 12772032 (replaces 93190589) |
| 1 | Spring strut | 12772033 (replaces 93190590) |
| 1 | Spring strut | 93190090 |
| 1 | Spring strut | 12772032 (replaces 12766007) |
| 1 | Spring strut | 12772033 (replaces 12766008) |
| 1 | Spring strut | 12772032 (replaces 93190592) |
| 1 | Spring strut | 12772033 (replaces 93190593) |
| 1 | Spring strut | 93190091 |
| 1 | Spring strut | 12772032 (replaces 12762867) |
| 1 | Spring strut | 12772033 (replaces 12762868) |
| 1 | Spring strut | 12772032 (replaces 93190606) |
| 1 | Spring strut | 12772033 (replaces 93190607) |
| 1 | Spring strut | 93190092 |
| 1 | Spring strut | 12772032 (replaces 12803099) |
| 1 | Spring strut | 12772033 (replaces 12803100) |
| 1 | Spring strut | 12772032 (replaces 93190597) |
| 1 | Spring strut | 12772033 (replaces 93190598) |
| 1 | Spring strut | 93190126 |
| 1 | Spring strut | 12772032 (replaces 12803103) |
| 1 | Spring strut | 12772033 (replaces 12803104) |
| 1 | Spring strut | 12772032 (replaces 93190585) |
| 1 | Spring strut | 12772033 (replaces 93190586) |
| 1 | Spring strut | 93190127 |
| 1 | Spring strut | 12772032 (replaces 12762869) |
| 1 | Spring strut | 12772033 (replaces 12762870) |
| 1 | Spring strut | 12772032 (replaces 93190612) |
| 1 | Spring strut | 12772033 (replaces 93190613) |
| 1 | Spring strut | 93190083 |
| 1 | Spring strut | 93190626 (replaces 12762871) |
| 1 | Spring strut | 12772033 (replaces 12762872) |
| 1 | Spring strut | 12772032 (replaces 93190626) |
| 1 | Spring strut | 12772033 (replaces 93190627) |
| 1 | Spring strut | 93190082 |
| 1 | Spring strut | 12772032 (replaces 12758760) |
| 1 | Spring strut | 93190623 (replaces 12758761) |
| 1 | Spring strut | 12772032 (replaces 93190622) |
| 1 | Spring strut | 93190623 |
| 1 | Spring strut | 93166820 |
| 1 | Spring strut | 12772032 (replaces 12758764) |
| 1 | Spring strut | 12772033 (replaces 12758765) |
| 1 | Spring strut | 12772032 (replaces 93190630) |
| 1 | Spring strut | 12772033 (replaces 93190631) |
| 1 | Spring strut | 93190081 |
| 1 | Spring strut | 93192511 |
| 1 | Spring strut | 93192871 |
| 1 | Spring strut | 93166945 (replaces 93192832) |
| 1 | Spring strut | 93166945 |
| 2A | Protecting hose | 13178464 (replaces 12755342) |
| 2A | Protecting hose | 13178464 |
| 3 | Lock nut | 24433051 |
| 4 | Screw | 11900365 |
| 4 | Screw | 11900364 |
| 5 | Cover | 24435885 |
| 6 | Spring | 93190591 (replaces 12756515) |
| 6 | Spring | 93190591 |
| 6 | Spring | 93190594 (replaces 12756517) |
| 6 | Spring | 93190594 |
| 6 | Spring | 93190595 (replaces 12756518) |
| 6 | Spring | 93190595 |
| 6 | Spring | 93190608 (replaces 12756519) |
| 6 | Spring | 93190608 |
| 6 | Spring | 93190609 (replaces 12786394) |
| 6 | Spring | 93190609 |
| 6 | Spring | 93190596 (replaces 12786061) |
| 6 | Spring | 93190596 |
| 6 | Spring | 93190599 (replaces 12805759) |
| 6 | Spring | 93190599 |
| 6 | Spring | 93190610 (replaces 12786395) |
| 6 | Spring | 93190610 |
| 6 | Spring | 93190587 (replaces 12803642) |
| 6 | Spring | 93190587 |
| 6 | Spring | 93190611 (replaces 12803645) |
| 6 | Spring | 93190611 |
| 6 | Spring | 93190614 (replaces 12790741) |
| 6 | Spring | 93190614 |
| 6 | Spring | 93190615 (replaces 12756520) |
| 6 | Spring | 93190615 |
| 6 | Spring | 93190628 (replaces 12794617) |
| 6 | Spring | 93190628 |
| 6 | Spring | 93190629 (replaces 12756521) |
| 6 | Spring | 93190629 |
| 6 | Spring | 93190624 (replaces 12758766) |
| 6 | Spring | 93190624 |
| 6 | Spring | 93190625 (replaces 12758767) |
| 6 | Spring | 93190625 |
| 6 | Spring | 93190632 (replaces 12758768) |
| 6 | Spring | 93190632 |
| 6 | Spring | 93190633 (replaces 12758769) |
| 6 | Spring | 93190633 |
| 6 | Spring | 93192512 |
| 6 | Spring | 93192513 |
| 6 | Spring | 93192571 |
| 6 | Spring | 93192572 |
| 6 | Spring | 12780359 |
| 6 | Spring | 12780358 |
| 6 | Spring | 12778029 |
| 6 | Front spring | 12778028 |
| 6 | Front spring | 12783937 |
| 6 | Front spring | 12783938 |
| 8 | Bump stop | 12786062 |
| 8 | Hollow bumper | 12783011 |
| 8 | Hollow bumper | 12783012 |
| 9 | Flexible hose | 55700767 |
| 10 | Ball bearing | 13270705 (replaces 93191295) |
| 10 | Ball bearing | 13270705 |
| 11 | Support bearing | 13188763 |
| 11 | Support bearing | 13188764 |
| 12 | Shield | 13239683 |
| 19 | Grease | 9117810 |
| 20 | Stabilizer bar | 13204074 |
| 20 | Stabilizer bar | 13204072 |
| 22 | Bearing | 13204070 |
| 22 | Bearing | 13204071 |
| 23 | Brace | 13192892 |
| 24 | Link rod | 13237130 |
| 20 | Stabilizer bar | 12781981 |
| 22 | Bearing | 93193816 |
| 23 | Brace | 93193817 |
| 25 | Screw | 11588723 |
| 30 | Steering knuckle housing | 12786671 |
| 30 | Steering knuckle housing | 12767944 |
| 30 | Steering knuckle housing | 12786672 |
| 30 | Steering knuckle housing | 12767945 |
| 30 | Steering knuckle housing | 13136696 |
| 30 | Steering knuckle housing | 13136697 |
| 31 | Hexagon screw | 92152298 |
| 32 | Washer | 11011199 (replaces 92150260) |
| 32 | Washer | 11011199 |
| 33 | Nut | 11094488 |
| 34 | Hexagon screw | 24461287 |
| 35 | Nut | 90576769 |
