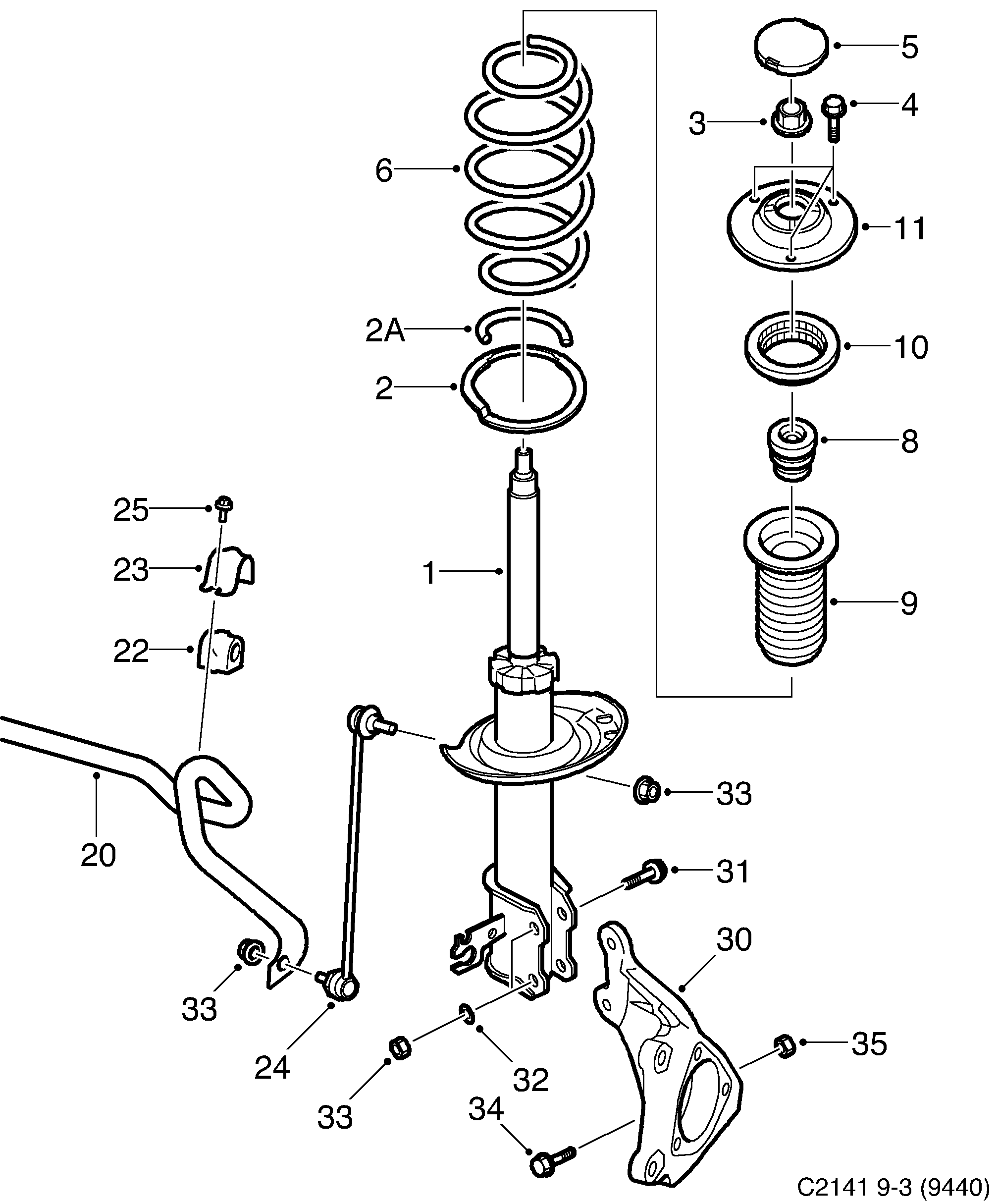

Group 7 Suspension system, section 100
| Pos | Article | Part No. |
|---|---|---|
| 1 | Spring strut | 12772032 (replaces 12786052) |
| 1 | Spring strut | 12772033 (replaces 12786053) |
| 1 | Spring strut | 12772032 (replaces 12797612) |
| 1 | Spring strut | 12772033 (replaces 12797613) |
| 1 | Spring strut | 12772032 (replaces 12786054) |
| 1 | Spring strut | 12772033 (replaces 12786055) |
| 1 | Spring strut | 12772032 (replaces 12786056) |
| 1 | Spring strut | 12772033 (replaces 12786057) |
| 1 | Spring strut | 12772032 (replaces 12797614) |
| 1 | Spring strut | 12772033 (replaces 12797615) |
| 1 | Spring strut | 12772032 (replaces 12786390) |
| 1 | Spring strut | 12772033 (replaces 12786391) |
| 1 | Spring strut | 12772032 (replaces 12756499) |
| 1 | Spring strut | 12772033 (replaces 12756500) |
| 1 | Spring strut | 12772032 (replaces 12756501) |
| 1 | Spring strut | 12772033 (replaces 12756502) |
| 1 | Spring strut | 12772032 (replaces 12756503) |
| 1 | Spring strut | 12772033 (replaces 12756504) |
| 1 | Spring strut | 12772032 (replaces 12756505) |
| 1 | Spring strut | 12772033 (replaces 12756506) |
| 1 | Spring strut | 12772032 (replaces 12794613) |
| 1 | Spring strut | 12772033 (replaces 12794614) |
| 1 | Spring strut | 93190626 (replaces 12794615) |
| 1 | Spring strut | 12772033 (replaces 12794616) |
| 1 | Spring strut | 12772032 (replaces 12756507) |
| 1 | Spring strut | 12772033 (replaces 12756508) |
| 1 | Spring strut | 12772032 (replaces 12756509) |
| 1 | Spring strut | 12772033 (replaces 12756510) |
| 1 | Spring strut | 93190626 (replaces 12756511) |
| 1 | Spring strut | 12772033 (replaces 12756512) |
| 1 | Spring strut | 93190626 (replaces 12756513) |
| 1 | Spring strut | 12772033 (replaces 12756514) |
| 1 | Spring strut | 12772032 (replaces 12803097) |
| 1 | Spring strut | 12772033 (replaces 12803098) |
| 1 | Spring strut | 12772032 (replaces 12756495) |
| 1 | Spring strut | 12772033 (replaces 12756496) |
| 1 | Spring strut | 12772032 (replaces 12805895) |
| 1 | Spring strut | 12772033 (replaces 12805896) |
| 1 | Spring strut | 12772032 (replaces 12805899) |
| 1 | Spring strut | 12772033 (replaces 12805900) |
| 1 | Spring strut | 12772032 (replaces 12805901) |
| 1 | Spring strut | 12772033 (replaces 12805902) |
| 2 | Spacer leaf | 12794486 |
| 2A | Protecting hose | 13178464 (replaces 12802932) |
| 2A | Protecting hose | 13178464 (replaces 12755342) |
| 3 | Lock nut | 24433051 |
| 4 | Hexagon screw | 24436242 |
| 4 | Screw | 11900365 |
| 5 | Cover | 24435885 |
| 6 | Spring | 93190594 (replaces 12786059) |
| 6 | Spring | 93190595 (replaces 12786060) |
| 6 | Spring | 93190596 (replaces 12786061) |
| 6 | Spring | 93190608 (replaces 12786393) |
| 6 | Spring | 93190609 (replaces 12786394) |
| 6 | Spring | 93190610 (replaces 12786395) |
| 6 | Spring | 93190594 (replaces 12756517) |
| 6 | Spring | 93190595 (replaces 12756518) |
| 6 | Spring | 93190608 (replaces 12756519) |
| 6 | Spring | 93190614 (replaces 12790741) |
| 6 | Spring | 93190615 (replaces 12790052) |
| 6 | Spring | 93190628 (replaces 12794617) |
| 6 | Spring | 93190629 (replaces 12790053) |
| 6 | Spring | 93190615 (replaces 12756520) |
| 6 | Spring | 93190629 (replaces 12756521) |
| 6 | Spring | 93190591 (replaces 12803727) |
| 6 | Spring | 93190591 (replaces 12756515) |
| 6 | Spring | 93190599 (replaces 12805759) |
| 6 | Spring | 93190587 (replaces 12805760) |
| 8 | Bump stop | 12786062 |
| 9 | Bellows | 55700767 (replaces 9231099) |
| 9 | Flexible hose | 55700767 |
| 10 | Ball bearing | 13270705 (replaces 93191295) |
| 11 | Support bearing | 13188763 (replaces 24435884) |
| 11 | Support bearing | 13188763 (replaces 12793902) |
| 11 | Support bearing | 13188763 |
| 20 | Stabilizer bar | 24421799 |
| 20 | Stabilizer bar | 24411075 |
| 22 | Bushing | 24428002 |
| 22 | Bushing | 9191188 |
| 23 | Cap | 9191187 |
| 24 | Link | 13237130 (replaces 24417251) |
| 25 | Hexagon screw | 11900172 |
| 30 | Steering knuckle housing | 12786671 |
| 30 | Steering knuckle housing | 12786672 |
| 30 | Steering knuckle housing | 13136696 |
| 30 | Steering knuckle housing | 13136697 |
| 31 | Hexagon screw | 92152298 |
| 32 | Washer | 11011199 (replaces 92150260) |
| 33 | Nut | 11094488 (replaces 90576123) |
| 33 | Nut | 11094488 |
| 34 | Hexagon screw | 24461287 |
| 35 | Nut | 90576769 |
