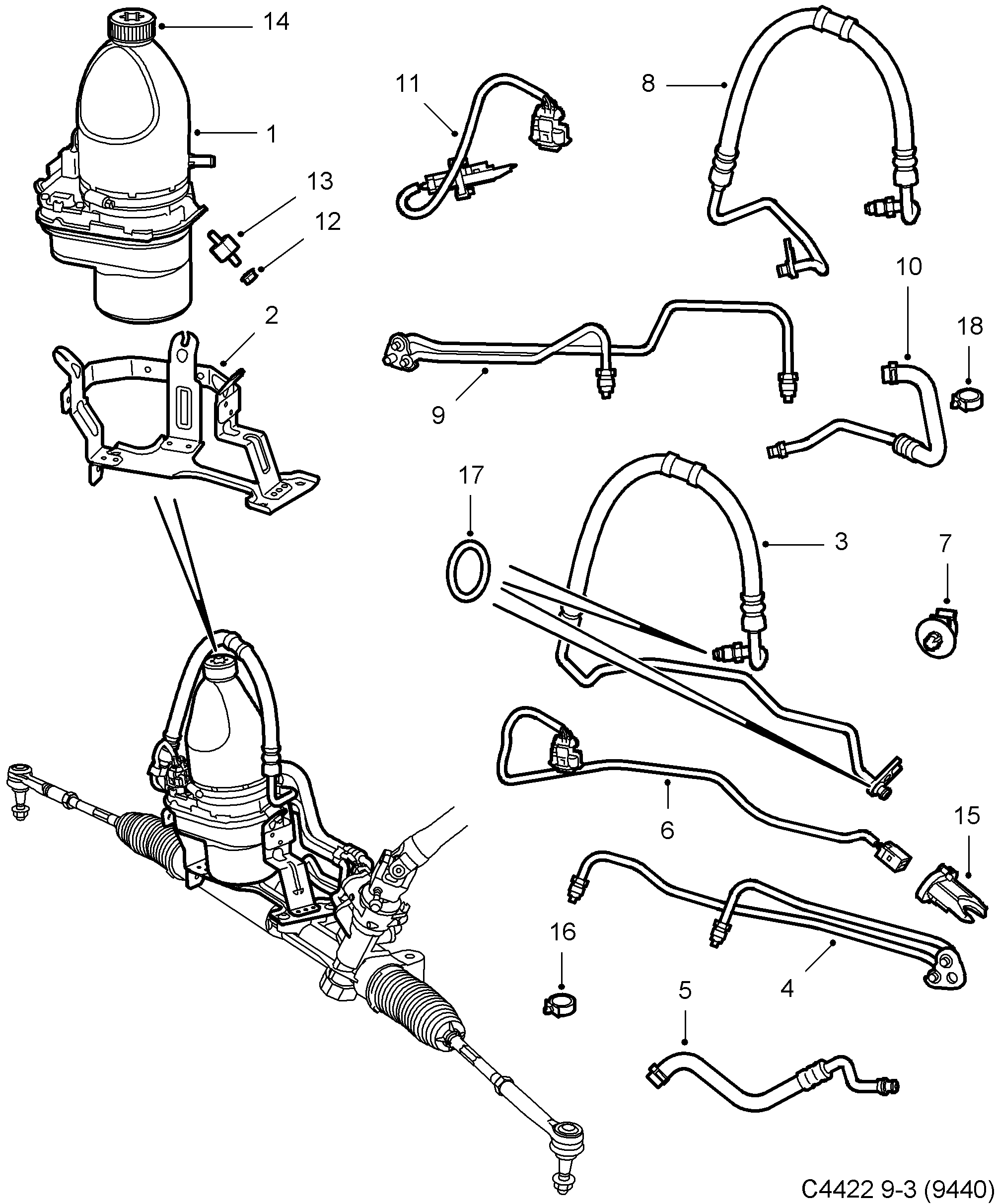

Group 6 Front wheel suspension, section 1500
| Pos | Article | Part No. |
|---|---|---|
| 1 | Power steering pump | 93183575 (replaces 93180406) |
| 1 | Pump, hydraulic oil | 93183575 |
| 2 | Bracket | 93172290 |
| 3 | Hose | 93179809 (replaces 93172785) |
| 3 | Feed line | 93179809 |
| 4 | Oil pipe | 93172774 |
| 5 | Hose | 93172782 |
| 6 | Cable network | 93172767 |
| 7 | Clamp | 90243382 |
| 8 | Hose | 24456719 |
| 9 | Oil pipe | 93172775 |
| 10 | Hose | 93172784 |
| 11 | Cable network | 93172769 |
| 12 | Hexagon nut | 9199228 |
| 13 | Rubber buffer | 9194921 |
| 14 | Oil filler cap | 93172289 |
| 15 | Sensor | 93172341 |
| 16 | Hose clamp | 24453106 |
| 17 | O-ring | 93176057 |
| 17 | O-ring | 93176060 |
| 18 | Clip | 93181226 |
