Saab 9-3 (9440) 2006-2011 Hydraulic pump hoses

Group 6 Front wheel suspension, section 1320

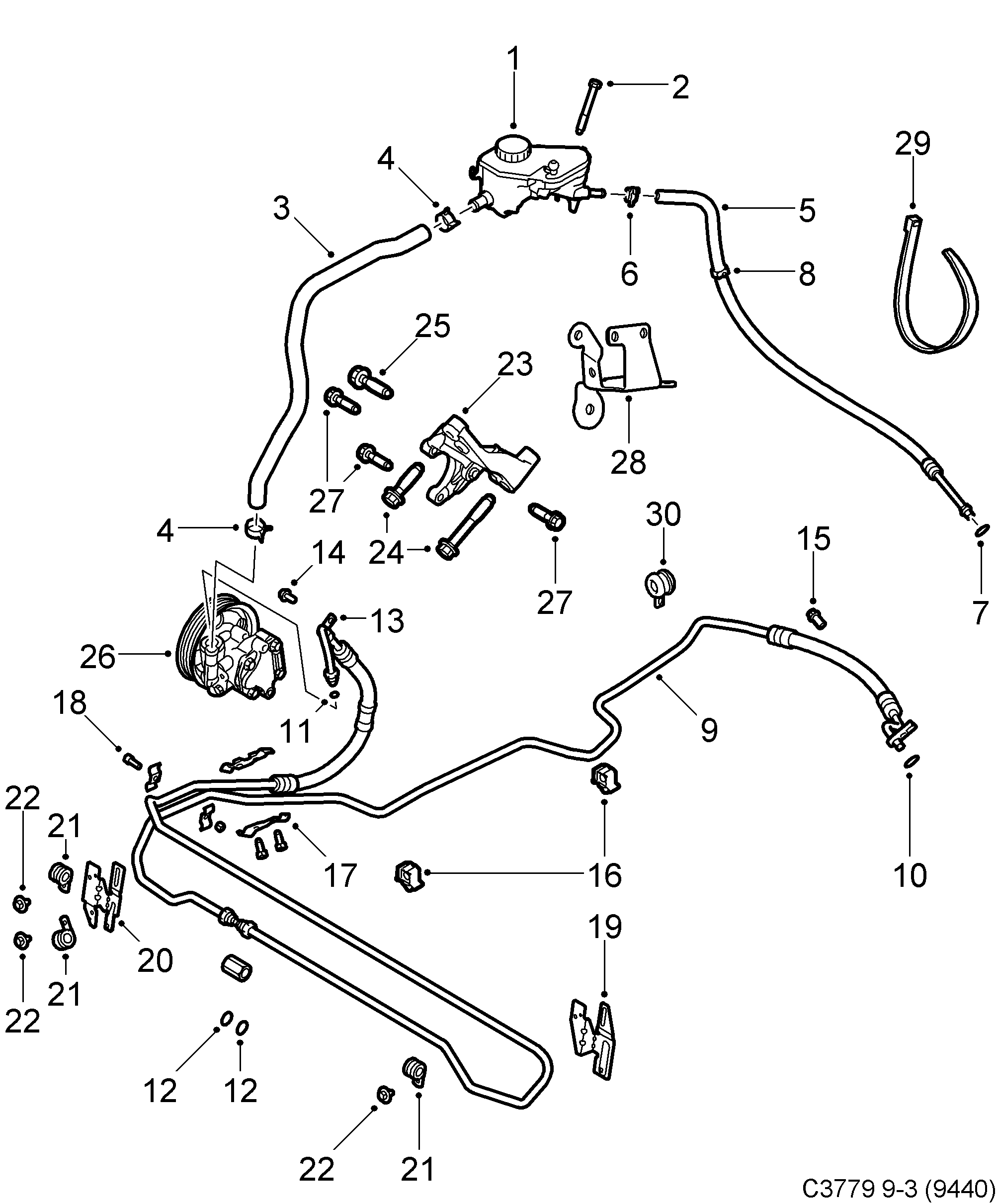

Saab 9-3 (9440) Hydraulic pump hoses diagram

Pos	Article	Part No.
1	Reservoir	12794644
2	Screw	92153209 (replaces 7982481)
2	Screw	92153209
3	Junction hose	12767435 (replaces 12765401)
3	Junction hose	12767435
4	Hose clamp	90572591
5	Return line	12767441 (replaces 12794944)
5	Return line	12767441
5	Return line	12767443 (replaces 12794945)
5	Return line	12767443
5	Return hose	12778120
5	Return hose	12778118
6	Clamp	90572588
7	O-ring	93188574
8	Clip	93181226
9	Feed line	12767437 (replaces 12794942)
9	Feed line	12767437
9	Feed line	12767439 (replaces 12794943)
9	Feed line	12767439
9	Pressure hose	12778119
9	Pressure hose	12778121
10	O-ring	93188576
12	O-ring	93188575
13	Clip	12790890
14	Screw	92153146
15	Screw	11093601
16	Clamp	12805104
17	Clamp	93188836
18	Bracket	93188837
19	Bracket	12764460
20	Bracket	12764462
21	Clamp	92152395
22	Screw	92151891 (replaces 92150090)
22	Plate screw	92151891
23	Bracket	55354828
24	Hexagon screw	92153207
25	Hexagon screw	92153208
26	Pump	12842029 (replaces 12785127)
26	Pump, hydraulic oil	12842029
26	Pump, hydraulic oil	12842030 (replaces 12780841)
26	Pump, hydraulic oil	12842030
27	Hexagon screw	92150016
27	Screw	11900368
28	Bracket	55556320
29	Tie strap	11900512
30	Clamp	92152312
	Screw	11588712
