Saab 9-3 (9440) 2006-2011 Hydraulic pump hoses

Group 6 Front wheel suspension, section 1310

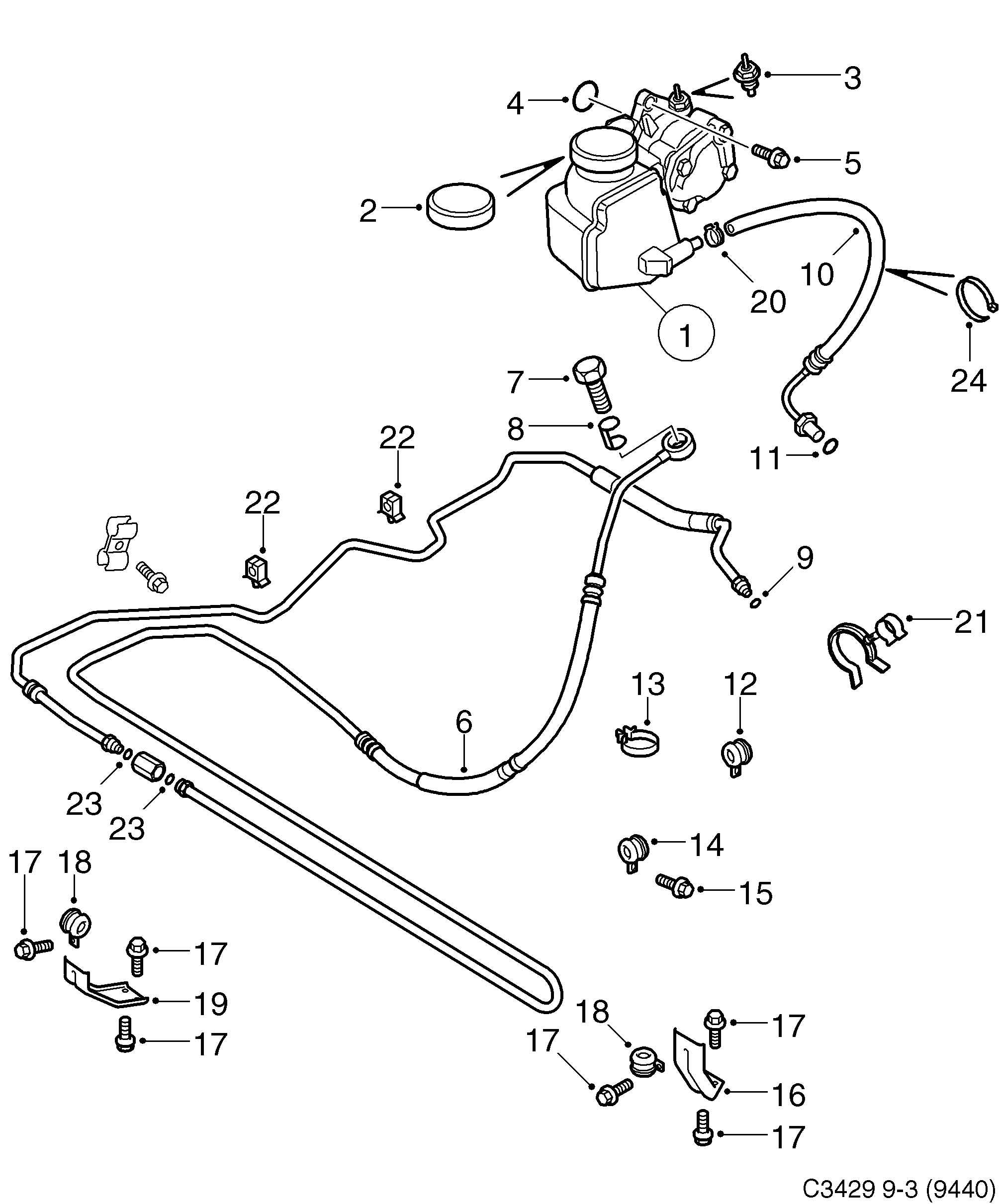

Saab 9-3 (9440) Hydraulic pump hoses diagram

Pos	Article	Part No.
1	Pump, hydraulic oil	12842028 (replaces 12785125)
1	Pump, hydraulic oil	12842028 (replaces 12773869)
1	Pump, hydraulic oil	12842028 (replaces 12782949)
1	Pump, hydraulic oil	12842028
2	Cover	12790707
3	Pressure monitor	12801789
4	Gasket	12801788
5	Screw	11518049
6	Pressure hose	12756290
6	Pressure hose	12765336
6	Pressure hose	12756291
6	Pressure hose	12765337
7	Banjo screw	92152386
7	Hollow screw	12771538
8	Sealing ring	12801792
8	Seal	12771541
9	O-ring	92152387
9	O-ring	93188576
6	Pressure hose	12778126
6	Pressure hose	12778125
10	Return hose	12785122
10	Return hose	12765338
10	Return hose	12787185
10	Return hose	12765339
10	Return hose	12778124
12	Clamp	92152312
13	Clamp	92150210
14	Clamp	92152395
15	Screw	92151943
16	Bracket	12803155 (replaces 12760456)
17	Screw	92151891 (replaces 92150090)
17	Plate screw	92151891
18	Clamp	12789349
19	Bracket	12803154
19	Bracket	12803155
20	Clamp	90469889
20	Clamp	90572588
21	Clamp	92152223
22	Clamp	12805104
24	Tie strap	11900512
