Saab 9-3 (9440) 2003-2005 Hydraulic pump hoses

Group 6 Front wheel suspension, section 1300

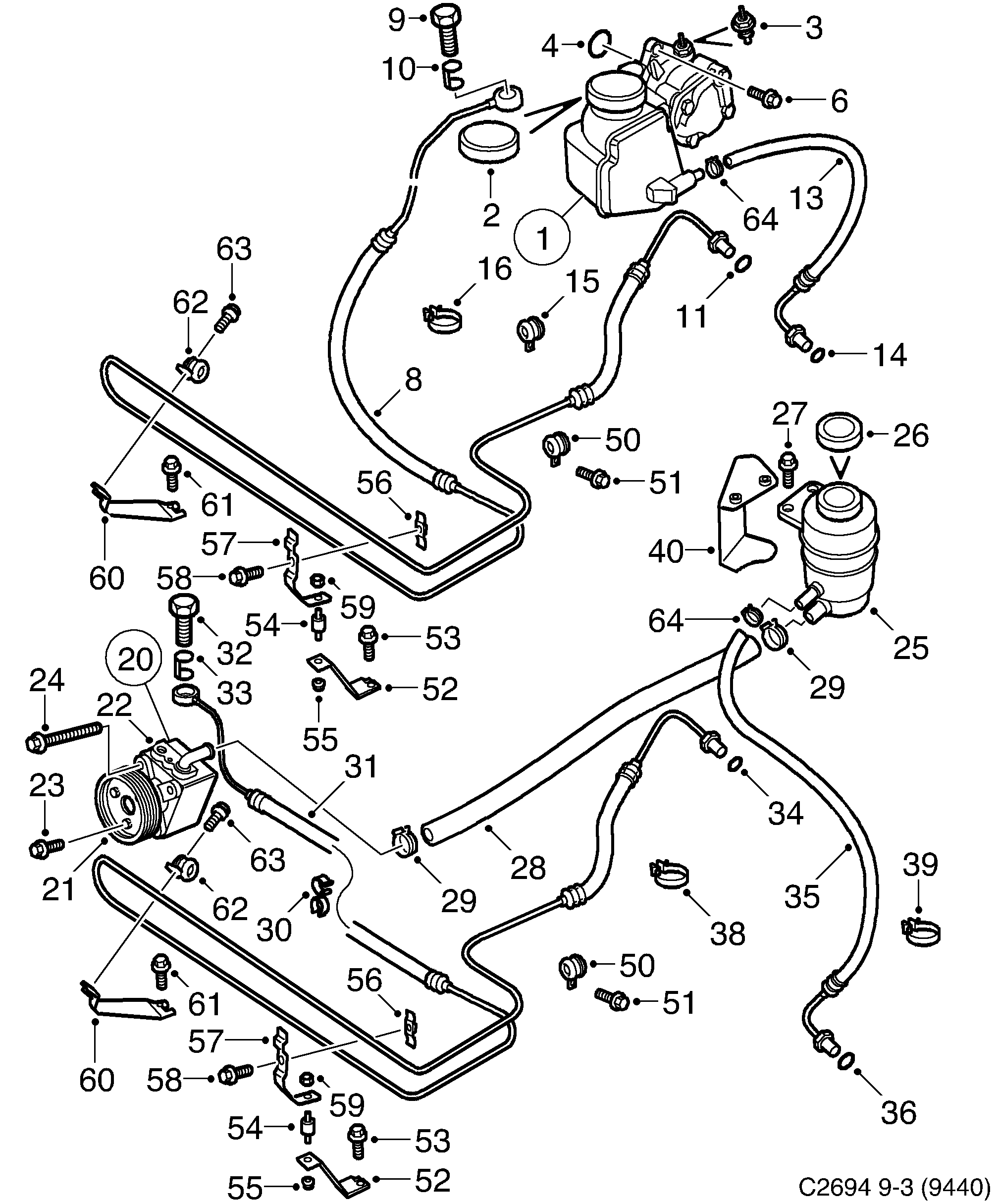

Saab 9-3 (9440) Hydraulic pump hoses diagram

Pos	Article	Part No.
1	Pump, hydraulic oil	12842028 (replaces 12785125)
2	Cover	12790707
3	Pressure monitor	12801789
4	Gasket	12801788
6	Screw	11518049
8	Pressure hose	12785130
8	Pressure hose	12756290
8	Pressure hose	12785129
8	Pressure hose	12756291
9	Banjo screw	92152385
10	Sealing ring	12801824
11	O-ring	92152387
13	Return hose	12785122
13	Return hose	12787185
15	Clamp	92152312
16	Clamp	92150210
20	Pump, hydraulic oil	13102542
22	Pump, hydraulic oil	12801790
21	Pulley	90528666
23	Screw	11097651
24	Screw	11095911
25	Reservoir	12789347
27	Screw	11900481
28	Suction hose	12785135
29	Hose clamp	90573609
30	Clamp	90305532
30	Clamp	90467678
31	Pressure hose	12785128
31	Pressure hose	12785124
32	Banjo screw	92152386
33	Sealing ring	12801792
35	Return hose	12785123
35	Return hose	12803741
35	Return hose	12787186
35	Return hose	12803742
38	Clamp	90497771
39	Clamp	11900515 (replaces 92150209)
39	Tie strap	11900515
40	Bracket	12794001
50	Clamp	12789349
50	Clamp	92152395
51	Screw	92151943
52	Bracket	12790892
52	Bracket	12803155
53	Screw	92151891 (replaces 92150090)
54	Vibration insulator	12783773 (replaces 12790893)
55	Nut	11900451
56	Bracket	12792563
57	Bracket	12792562
58	Screw	11900354
60	Bracket	12792830
60	Bracket	12803154
64	Hose clamp	90573604
