Saab 9-3 (9440) 2003-2005 Front wheel brake

Group 5 Brakes, section 90

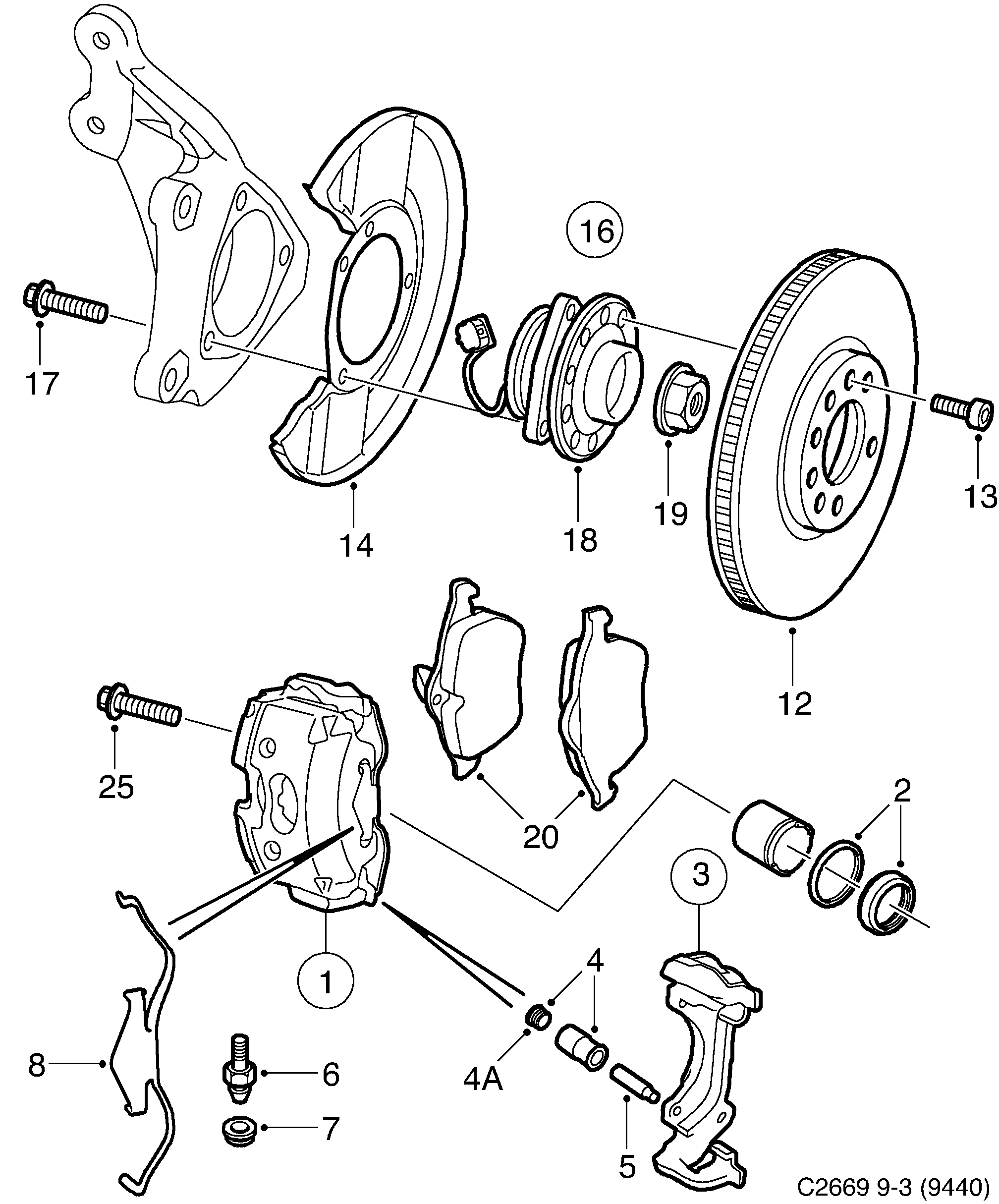

Saab 9-3 (9440) Front wheel brake diagram

Pos	Article	Part No.
1	Brake housing	93185745 (replaces 93172170)
1	Brake housing	93185745
1	Brake housing	93185746 (replaces 93172171)
1	Brake housing	93185746
1	Brake housing	93172168
1	Brake housing	93185748
1	Brake housing	93188666 (replaces 93172169)
1	Brake housing	93185749
1	Brake housing	93176375
1	Brake housing	93176376
2	Gasket kit	93185767
3	Carrier	93172173
3	Carrier	93172172
3	Carrier	93176378
4	Guide	90510227
4A	Cap	90575662
5	Guide	90297771
6	Bleed screw	93172175
7	Dust cap	90576233
7	Dust cap	93172177
8	Spring	93172176
8	Retaining spring	93185750
8	Spring	93173730
8	Spring	93195709 (replaces 93176377)
12	Brake disc	93171497
	Brake disc	9156807
12	Brake disc	93171500
	Brake disc	9191247
12	Brake disc	93175606
	Brake disc	24435132
13	Screw	90278945
14	Backing plate	12847526 (replaces 12786741)
14	Backing plate	12847526 (replaces 12802361)
14	Backing plate	13276089 (replaces 12790369)
16	Wheel hub	93186387 (replaces 12799815)
16	Wheel hub	93186387 (replaces 93175327)
16	Wheel bearing kit	93186387
17	Screw	13108188
18	Wheel hub	24413034
18	Wheel hub	12796081
19	Lock nut	90223979
20	Brake pad kit	12803551
20	Brake pad kit	93188112 (replaces 93185751)
20	Brake pad kit	12802167
20	Brake pad kit	93166943 (replaces 12765397)
20	Brake pad kit	93166941
25	Torx screw	93171511
