Saab 9-3 (9440) 2003-2011 Parking brake system

Group 5 Brakes, section 2000

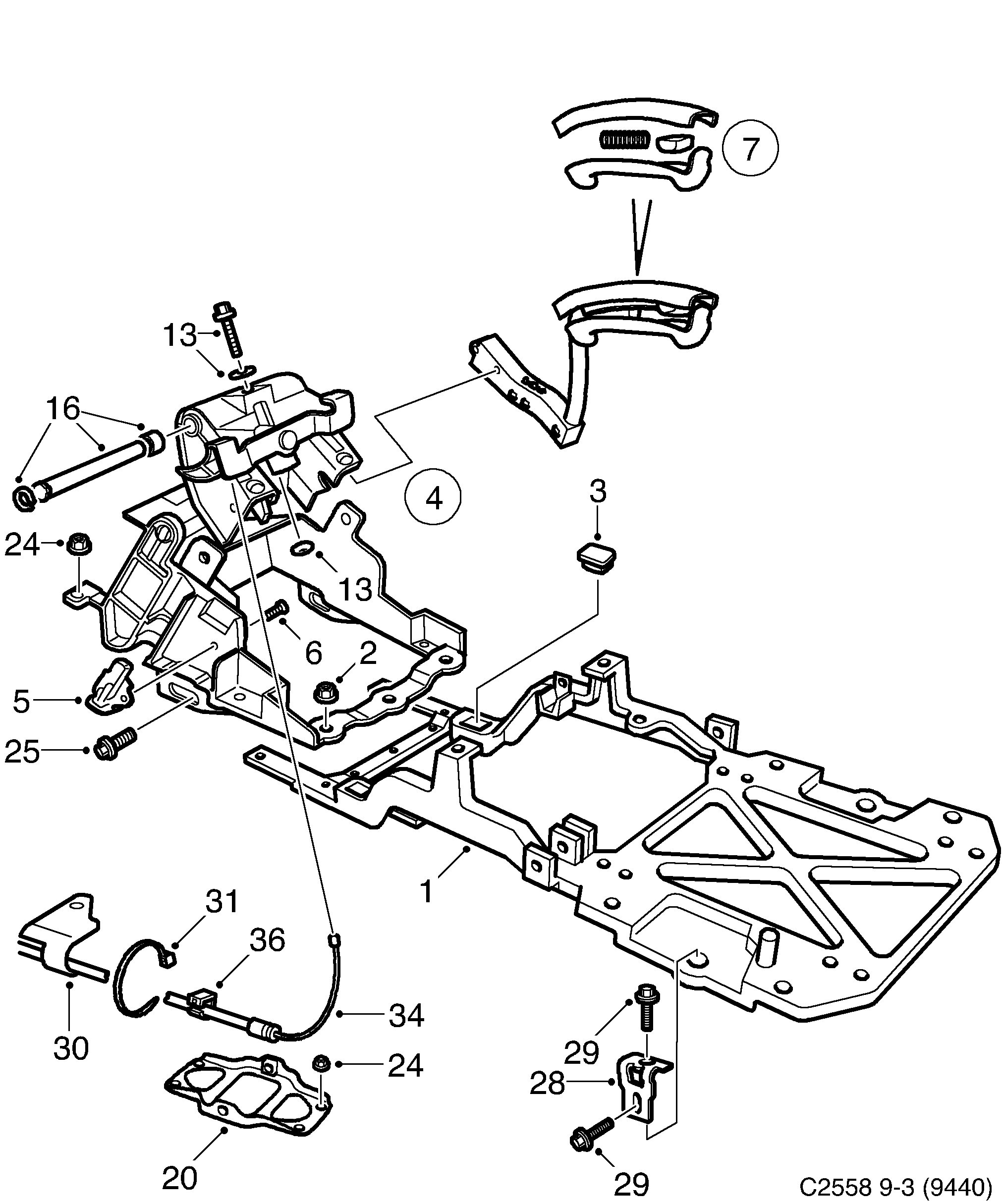

Saab 9-3 (9440) Parking brake system diagram

Pos	Article	Part No.
1	Attachment bracket	12786767
1	Attachment bracket	12804649
2	Nut	92153044 (replaces 92150142)
3	Spacer	12788227
3	Spacer	12788228
3	Spacer	12786769
3	Spacer	12788229
3	Spacer	12788226
4	Parking brake	12788215
4	Parking brake	12788216
5	Switch	90087504
6	Screw	11900378
7	Handle	12802419
13	Adjuster kit	12801143
	Screw	12794924
	Washer	12794925
	Lock washer	12794926
16	Shaft set	12801144
	Shaft	12786756
	Bushing	12794931
	Lock ring	92150818
20	Cover plate	12786770
24	Nut	92151925 (replaces 92150596)
25	Screw	55566034 (replaces 92150013)
25	Screw	92152261
28	Adjusting plate	12786773
29	Screw	92152021
30	Support	12800773
30	Support	12800774
31	Tie strap	30507607 (replaces 7593221)
34	Parking brake cable	12843729 (replaces 12801833)
34	Parking brake cable	12843729
36	Clamp	12793889
36	Tie strap	4807939
	Foam plastic piece	12794960
