Saab 9-3 (9440) 2006-2010 Master cylinder vacuum brake booster

Group 5 Brakes, section 1150

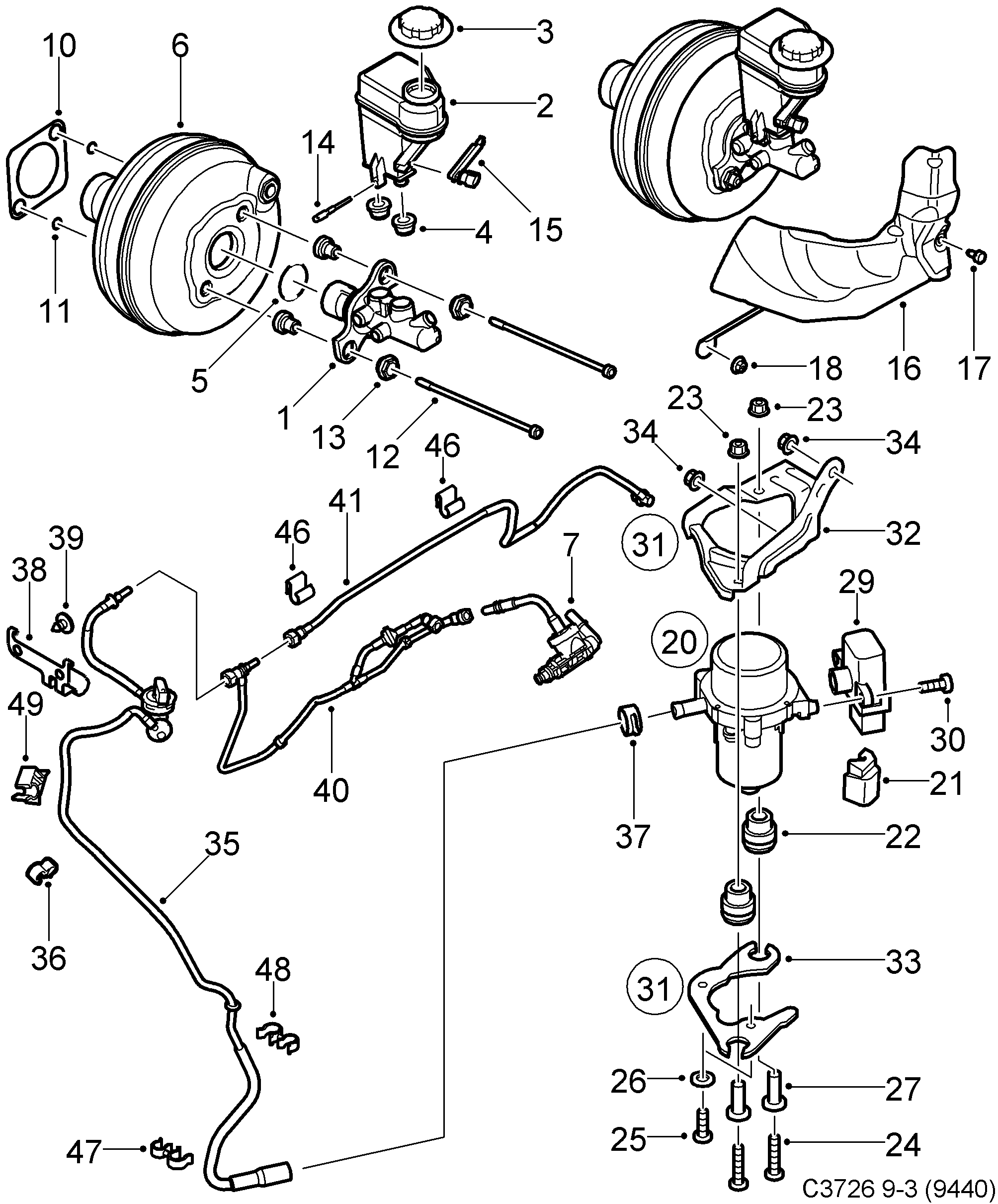

Saab 9-3 (9440) Master cylinder vacuum brake booster diagram

Pos	Article	Part No.
1	Brake cylinder	93184542
1	Brake cylinder	93184543
2	Reservoir	93172092
2	Reservoir	93172093
4	Plug	90509681
3	Cover	93189060
5	Sealing ring	90509682
6	Brake servo	93184540
6	Brake servo	93184541
7	Vacuum pipe	55556698
10	Gasket	93172095
11	Gasket	93172098
12	Screw	93172096
13	Nut	93172097
14	Hexagon screw	93170487
15	Level sensor	93175090
16	Shield	12794673
17	Screw	92151601 (replaces 92150065)
17	Screw	92151601
18	Nut	55563636 (replaces 92152033)
20	Vacuum pump	12822387 (replaces 93191598)
20	Vacuum pump	12822387
21	Insulator	12779032
22	Rubber bushing	12761845
23	Nut	11900439
24	Screw	92151827
25	Screw	92151822
26	Washer	92153032
27	Rubber bushing	12759954
29	Relay	12762936
30	Screw	12762937
31	Bracket	93188646
32	Bracket	12759958
33	Bracket	12761837
34	Nut	11089471
35	Vacuum pipe	12765264
35	Vacuum pipe	12847289 (replaces 12779036)
35	Vacuum pipe	12847289
35	Vacuum pipe	12765265
35	Vacuum pipe	12847290 (replaces 12779035)
35	Vacuum pipe	12847290
36	Clamp	90278486
36	Tie strap	90381846
37	Hose clamp	90572967
38	Bracket	12762088
39	Screw	11099381
40	Vacuum pipe	12847287 (replaces 12805915)
40	Vacuum line	12847287
40	Vacuum pipe	12806032
40	Vacuum line	12847288
41	Vacuum pipe	12794662
46	Clip	12760601
47	Clamp	92152223
48	Bracket	13194940
49	Clip	12767232
