Saab 9-3 (9440) 2003-2011 Master cylinder vacuum brake booster

Group 5 Brakes, section 1100

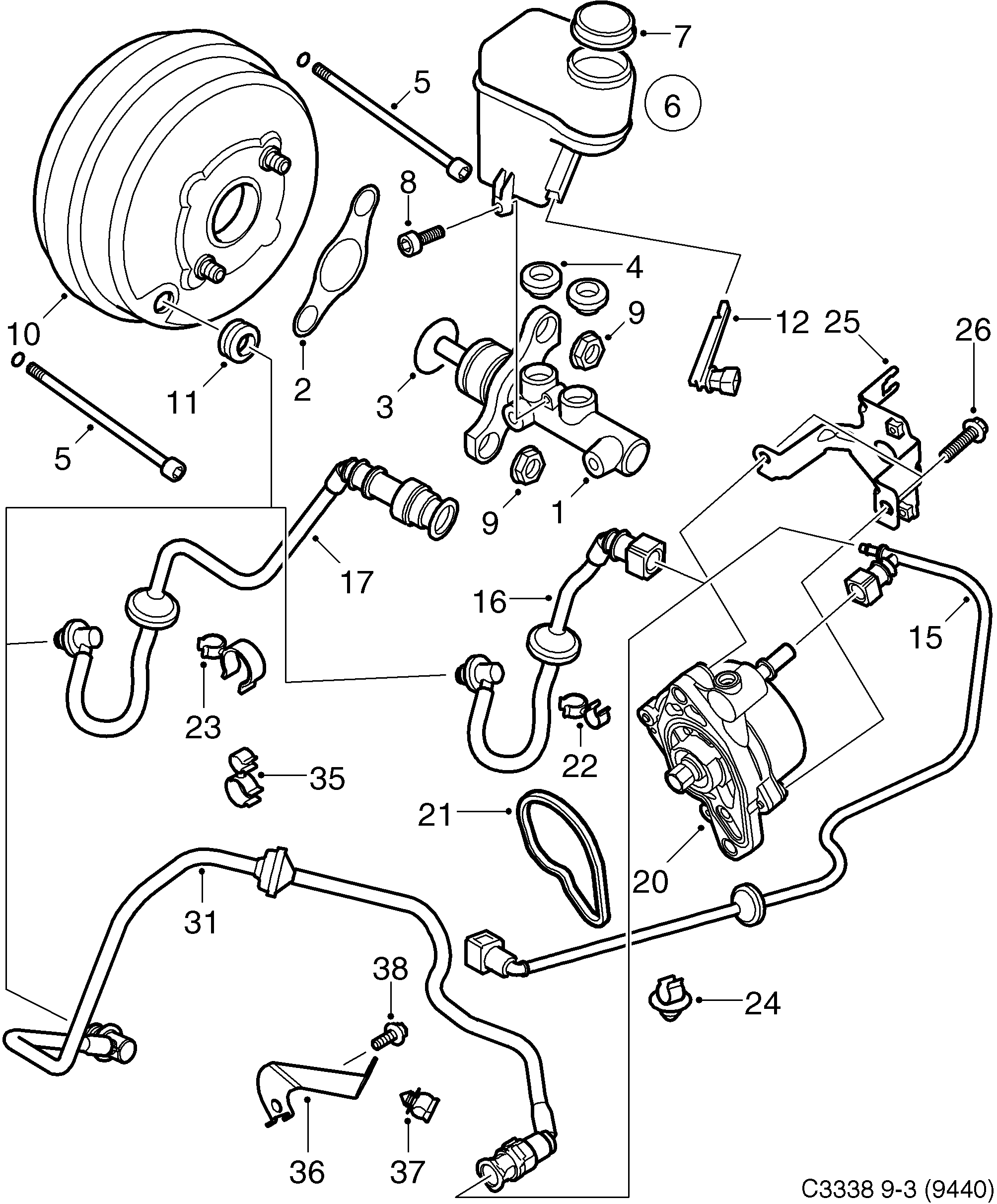

Saab 9-3 (9440) Master cylinder vacuum brake booster diagram

Pos	Article	Part No.
1	Master cylinder	93172089
1	Master cylinder	93172091
2	Gasket	93172095
3	Sealing ring	9117595
4	Plug	90509681
5	Screw	93172096
6	Reservoir	93172092
6	Reservoir	93172093
7	Cover	93189060 (replaces 93172094)
8	Hexagon screw	93170487
9	Nut	93172097
10	Brake servo	93175747 (replaces 93172086)
10	Brake servo	93175747
10	Brake servo	95507713
10	Brake servo	93175748 (replaces 93172087)
10	Brake servo	93175748
10	Brake servo	95507714
11	Grommet	90509683
11	Grommet	93174830
12	Level sensor	93175090
15	Vacuum pipe	12783806 (replaces 12789292)
15	Vacuum line	12783806
16	Vacuum pipe	12766023 (replaces 12793462)
16	Vacuum pipe	12766023
16	Vacuum pipe	12766022 (replaces 12793463)
16	Vacuum pipe	12766022
17	Vacuum pipe	12793464
17	Vacuum pipe	12793465
20	Vacuum pump	55561099 (replaces 12787696)
20	Vacuum pump	55561099
20	Vacuum pump	93190660 (replaces 93178955)
20	Vacuum pump	93190660
20	Vacuum pump	55205446 (replaces 93179221)
20	Vacuum pump	55205446 (replaces 93190766)
20	Vacuum pump	55221325
21	Seal	55561100 (replaces 55354100)
21	Gasket	55561100
21	Seal	93178956
21	Seal	93179222
22	Clip	24457009
23	Clip	92152154
24	Clip	92152171
25	Bracket	55354051
26	Screw	11089674
26	Screw	93181977
26	Screw	93179223
31	Vacuum pipe	93166703
31	Vacuum pipe	93166784
31	Vacuum pipe	12806044
31	Vacuum pipe	12806073
31	Vacuum pipe	12806045
35	Clamp	12793889
35	Clamp	92152223
35	Clip	24419235
36	Bracket	12775062
38	Screw	11093961
