Saab 9-3 (9440) 2003-2011 Hydraulic unit ABS

Group 5 Brakes, section 1000

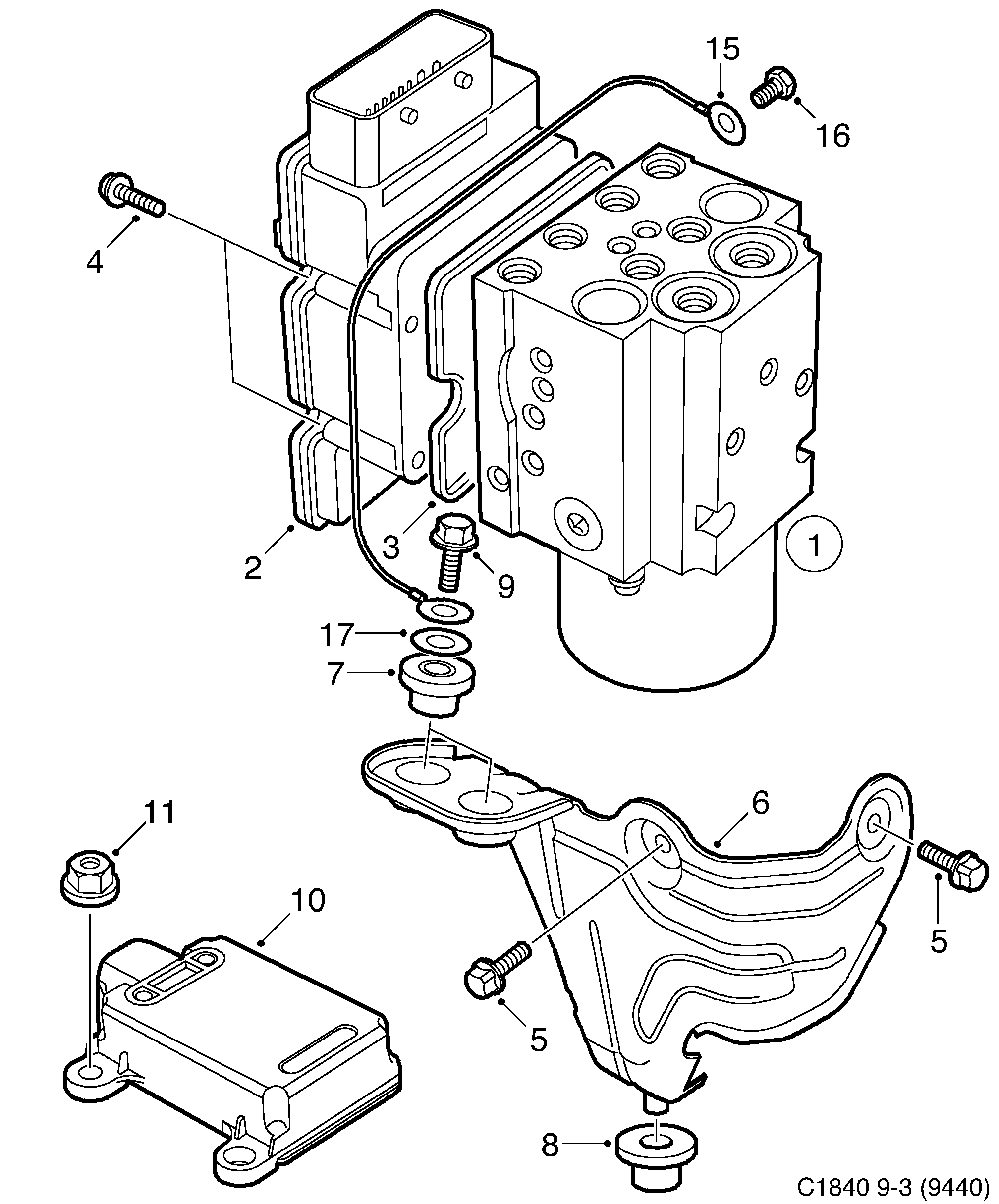

Saab 9-3 (9440) Hydraulic unit ABS diagram

Pos	Article	Part No.
1	Hydraulic unit	12794168
1	Hydraulic unit	12794169
1	Hydraulic unit	93170632
	Screw	93170479
3	Gasket	93170627
1	Hydraulic unit	93185682
2	Electronic unit	12801327 (replaces 12790842)
2	Electronic unit	12801327
2	Control unit	93196759 (replaces 93185678)
2	Control unit	93196759 (replaces 93190837)
2	Control unit	93167077
2	Control unit	93196759
3	Gasket	93170628
2	Control unit	93185680
2	Control unit	93196760 (replaces 93190838)
2	Control unit	93190839
2	Control unit	93167256 (replaces 93192721)
2	Control unit	93167256 (replaces 93167123)
2	Control unit	93167181
2	Control unit	93167256
2	Electronic unit	12801330 (replaces 12790843)
2	Electronic unit	12801330
2	Control unit	93196758 (replaces 93185677)
2	Control unit	93190836
2	Control unit	93196758
5	Screw	11588710
6	Bracket	12785189
7	Absorber	24410153
8	Absorber	24402550
9	Hexagon screw	11588726
10	Yaw rate sensor	13223930 (replaces 9184504)
10	Yaw rate sensor	13223930
10	Yaw rate sensor	13194240
11	Nut	11900451
15	Ground cable	12799677
17	Washer	92153033
