Saab 9-3 (9440) 2003-2011 5-speed

Group 4 Transmission, section 6800

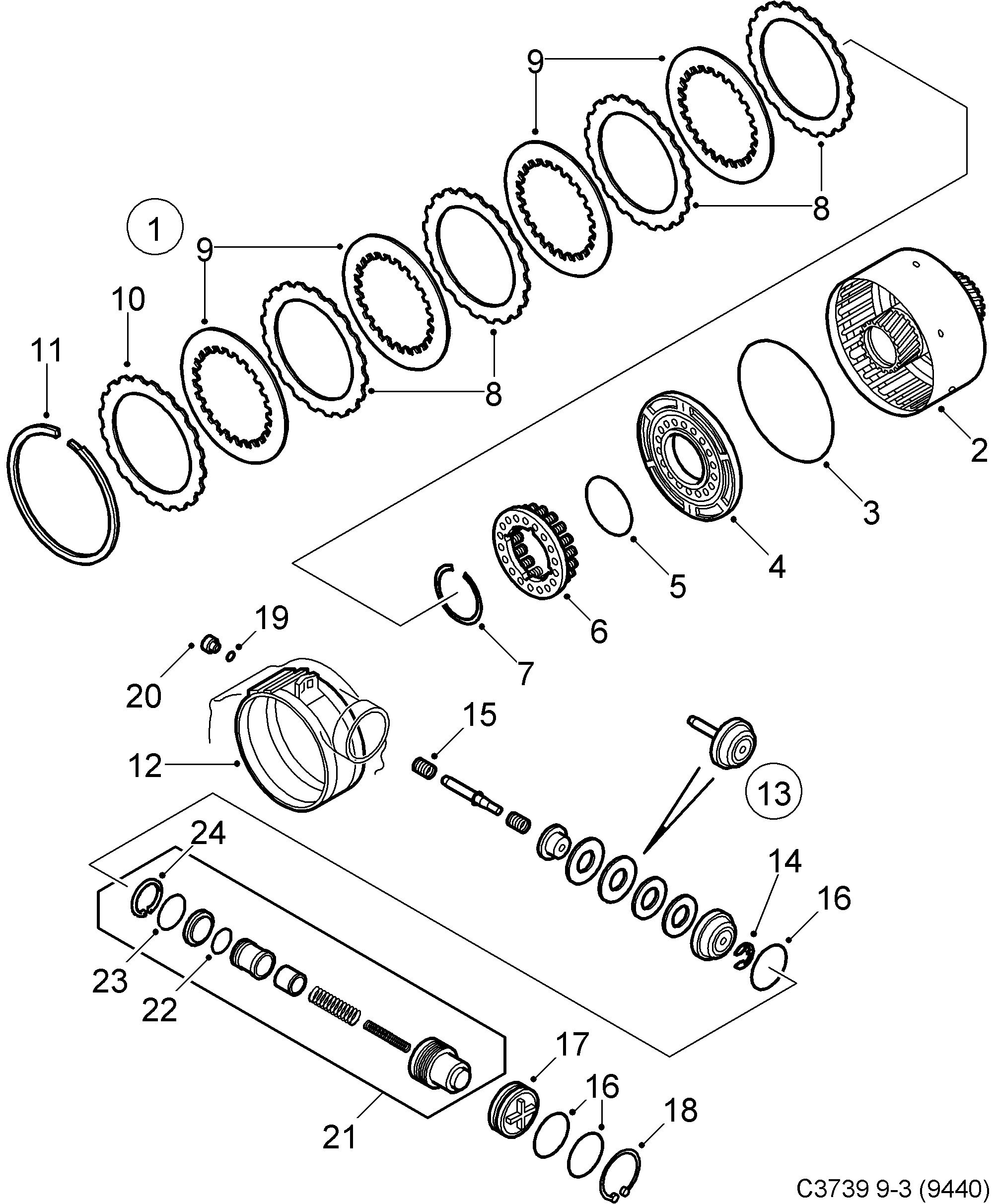

Saab 9-3 (9440) 5-speed diagram

Pos	Article	Part No.
1	Drum	93188780 (replaces 93179715)
1	Clutch	93188780
1	Clutch	93185160
2	Drum	55352300
3	O-ring	93179717
4	Plunger	55352302
5	O-ring	93178241
6	Return spring	90348847
7	Lock ring	90348849
8	Friction disc	93185161
9	Friction disc	93188775
10	Clutch disc	93179730
10	Clutch disc	93179732
10	Clutch disc	93179733
11	Lock ring	93179737
12	Brake lining	93185205 (replaces 55352308)
12	Brake lining	93185205
13	Piston	93179983
14	Lock ring	90542002
13	Piston	93179984
13	Piston	93179985
13	Piston	93179986
13	Piston	93179987
15	Compression spring	55352314
15	Compression spring	93179988
16	O-ring	90542004
17	Cover	93187000 (replaces 55354949)
17	Cover	93187000
18	Lock ring	90542006
19	O-ring	90348863
20	Plug	93185203 (replaces 90348862)
20	Screw	93185203
21	Absorber	93190077
22	O-ring	93166821
23	O-ring	93166822
24	Snap ring	93166823
