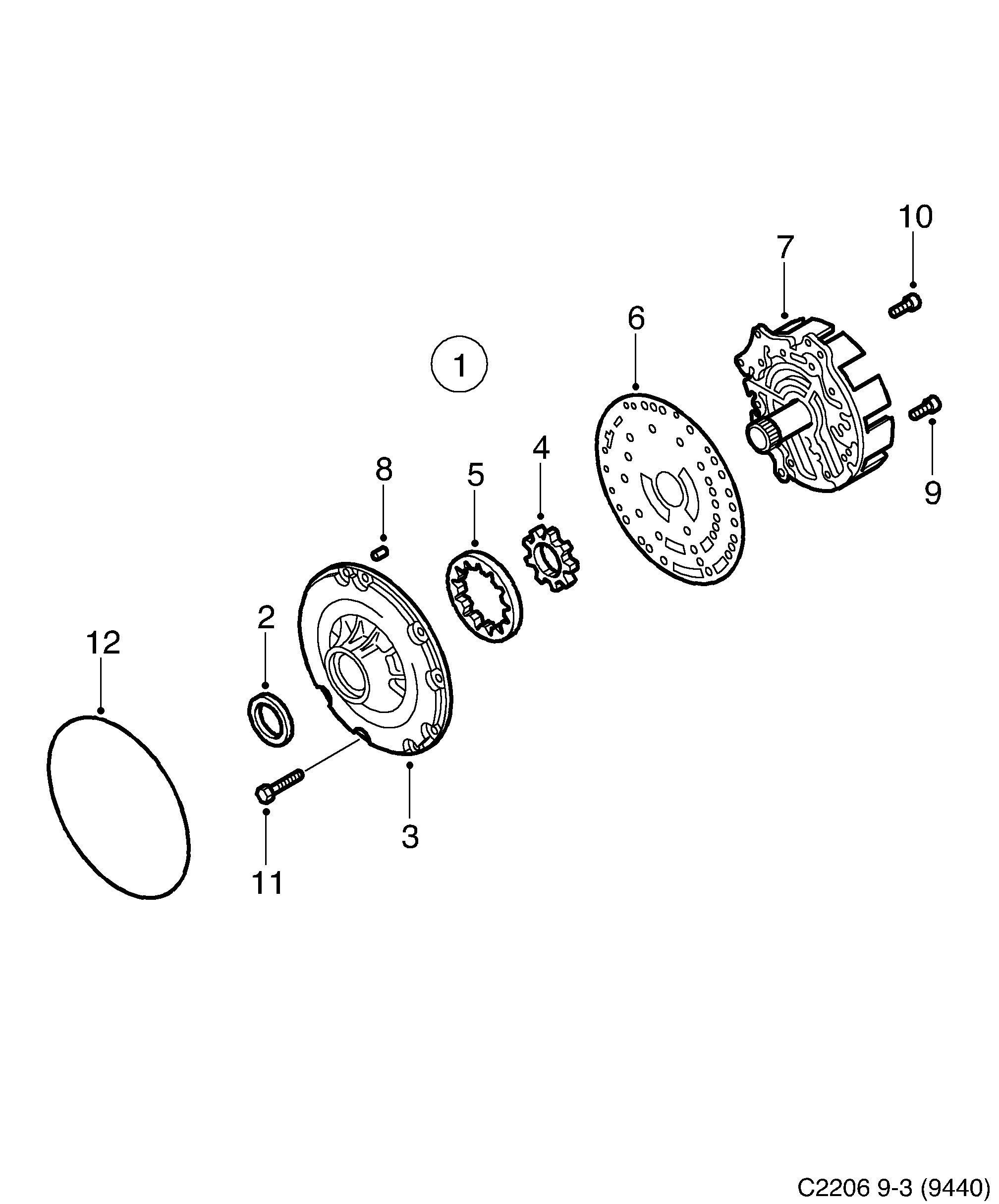

Group 4 Transmission, section 6700
| Pos | Article | Part No. |
|---|---|---|
| 1 | Oil pump | 93185068 (replaces 93178204) |
| 1 | Oil pump | 93185068 |
| 2 | Seal | 93178232 |
| 3 | Oil pump | 90348748 |
| 4 | Ring gear | 90541821 |
| 4 | Ring gear | 90541823 |
| 4 | Ring gear | 90541824 |
| 4 | Ring gear | 90541873 |
| 4 | Ring gear | 90541874 |
| 5 | Ring gear | 55352234 |
| 5 | Ring gear | 55352235 |
| 5 | Ring gear | 55352236 |
| 5 | Ring gear | 55352237 |
| 5 | Ring gear | 55352238 |
| 5 | Ring gear | 55352239 |
| 5 | Ring gear | 55352240 |
| 5 | Ring gear | 55352241 |
| 5 | Ring gear | 55352242 |
| 5 | Ring gear | 55352243 |
| 6 | Connector | 90541906 |
| 7 | Connector | 93185072 (replaces 55352244) |
| 7 | Cover | 93189301 |
| 8 | Guide pin | 90348755 |
| 9 | Screw | 93178305 |
| 10 | Screw | 90399357 |
| 11 | Screw | 90399359 |
| 12 | O-ring | 90348756 |
