Saab 9-3 (9440) 2003-2011 5-speed

Group 4 Transmission, section 6600

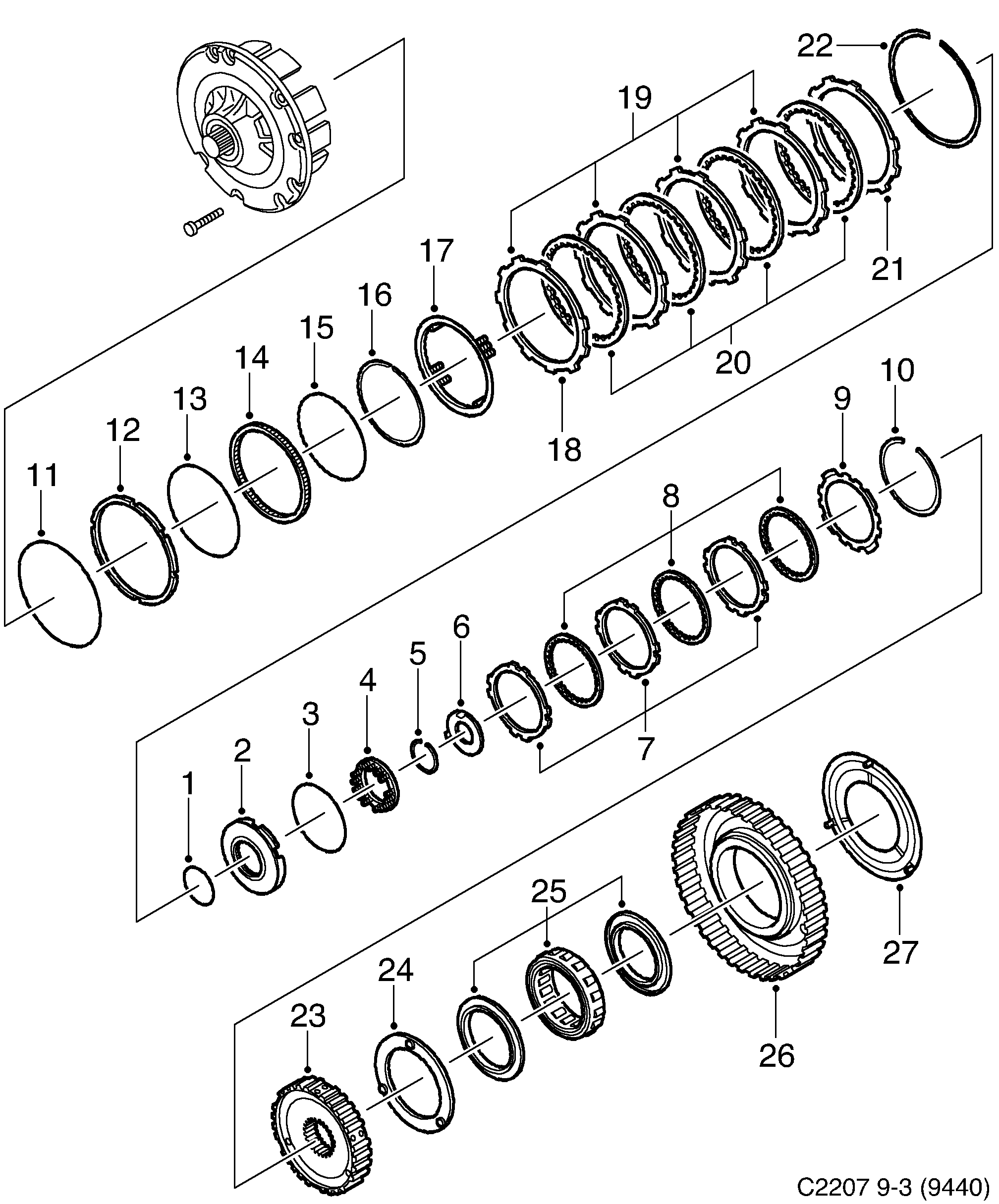

Saab 9-3 (9440) 5-speed diagram

Pos	Article	Part No.
1	O-ring	93178241
2	Piston	93178528
3	O-ring	93178242
4	Return spring	90348786
5	Lock ring	90348773
6	Clutch disc	90348789
7	Plate	90348787
8	Clutch disc	90541961
9	Clutch disc	90348788
9	Friction disc	93185072
10	Lock ring	90348777
10	Snap ring	93185073
11	O-ring	93178319
12	Piston	93178611
13	O-ring	93178605
14	Plate	93178604
14	Sleeve	93185074
15	O-ring	90510088
15	O-ring	93185075
16	Lock ring	93178610
16	Snap ring	93185076
17	Return spring	93185077
18	Clutch disc	93178745
19	Clutch disc	9119594
20	Friction disc	93166791
20	Friction disc	93185098
21	Clutch disc	93178758
21	Clutch disc	93178759
22	Lock ring	90348798
23	Hub	93178603
23	Clutch hub	93185099
24	Thrust washer	90348801
25	Roller bearing	90512050
26	Bearing race	9194965
27	Thrust washer	9194966
