Saab 9-3 (9440) 2003-2011 Gear box case, cover 5-speed

Group 4 Transmission, section 6200

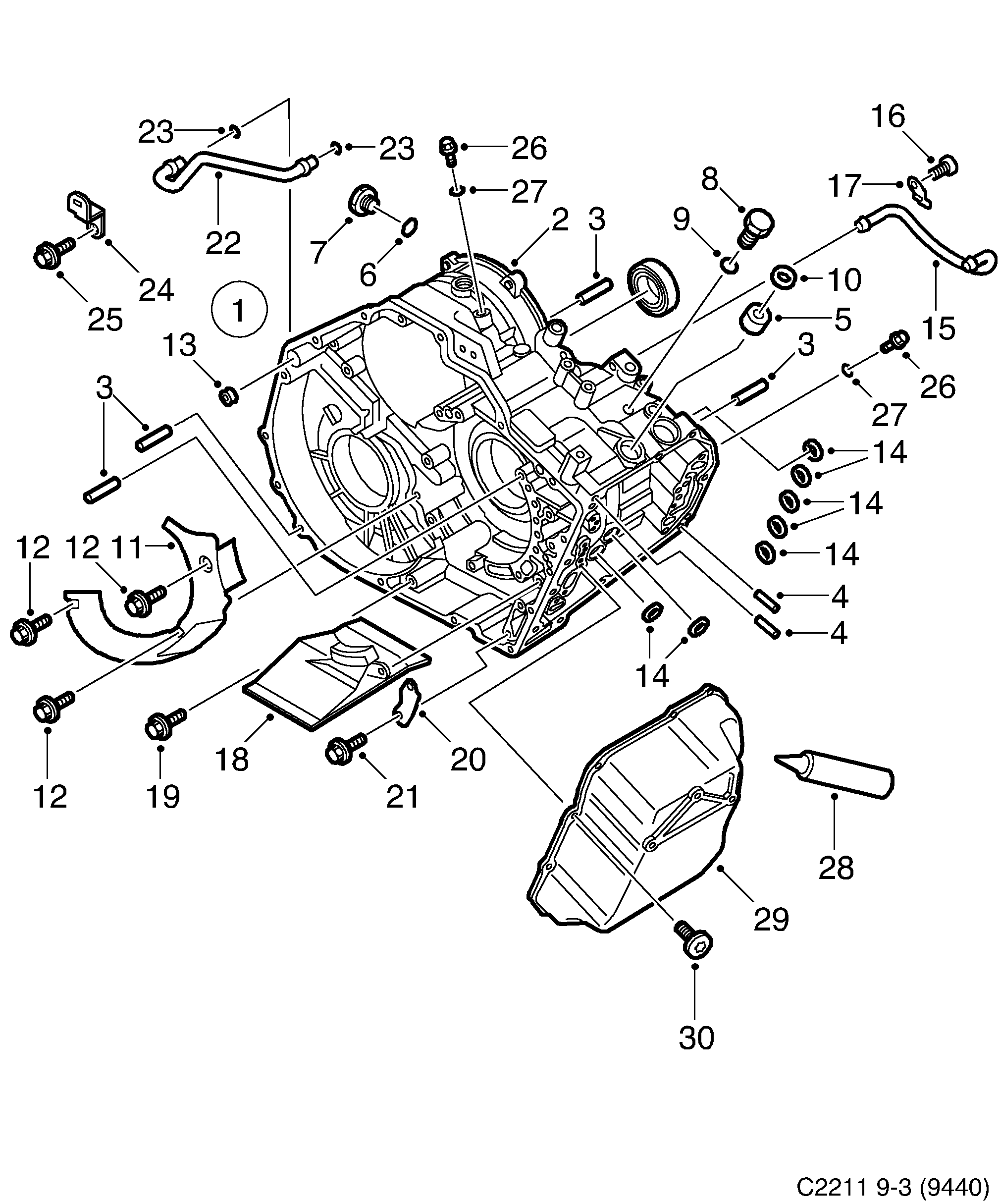

Saab 9-3 (9440) Gear box case, cover 5-speed diagram

Pos	Article	Part No.
1	Transmission housing	93177637
1	Transmission housing	93194160
2	Transmission housing	55352198
3	Guide pin	90541893
4	Guide pin	90348755
5	Needle bearing	90348717
6	O-ring	90348863
7	Plug	90541898
8	Plug	11099271 (replaces 90348712)
9	O-ring	90348713
10	Seal	90348718
11	Baffle	93177669
12	Hexagon screw	55352202
13	Gasket	90369297
14	Gasket	90348723
15	Tube	93177675
16	Screw	90399357
17	Clamp	90348727 (replaces 90487762)
17	Clamp	90348727
18	Oil strainer	93177682
19	Screw	90007930
20	Cover	55352206
22	Tube	93177764
23	O-ring	93177847
24	Clamp	55352209
26	Plug	90007874
27	O-ring	90007873
28	Flange sealant	93165267 (replaces 90369372)
29	Cover	93177986
30	Screw	93177993
