Saab 9-3 (9440) 2003-2011 Differential 5-speed

Group 4 Transmission, section 3000

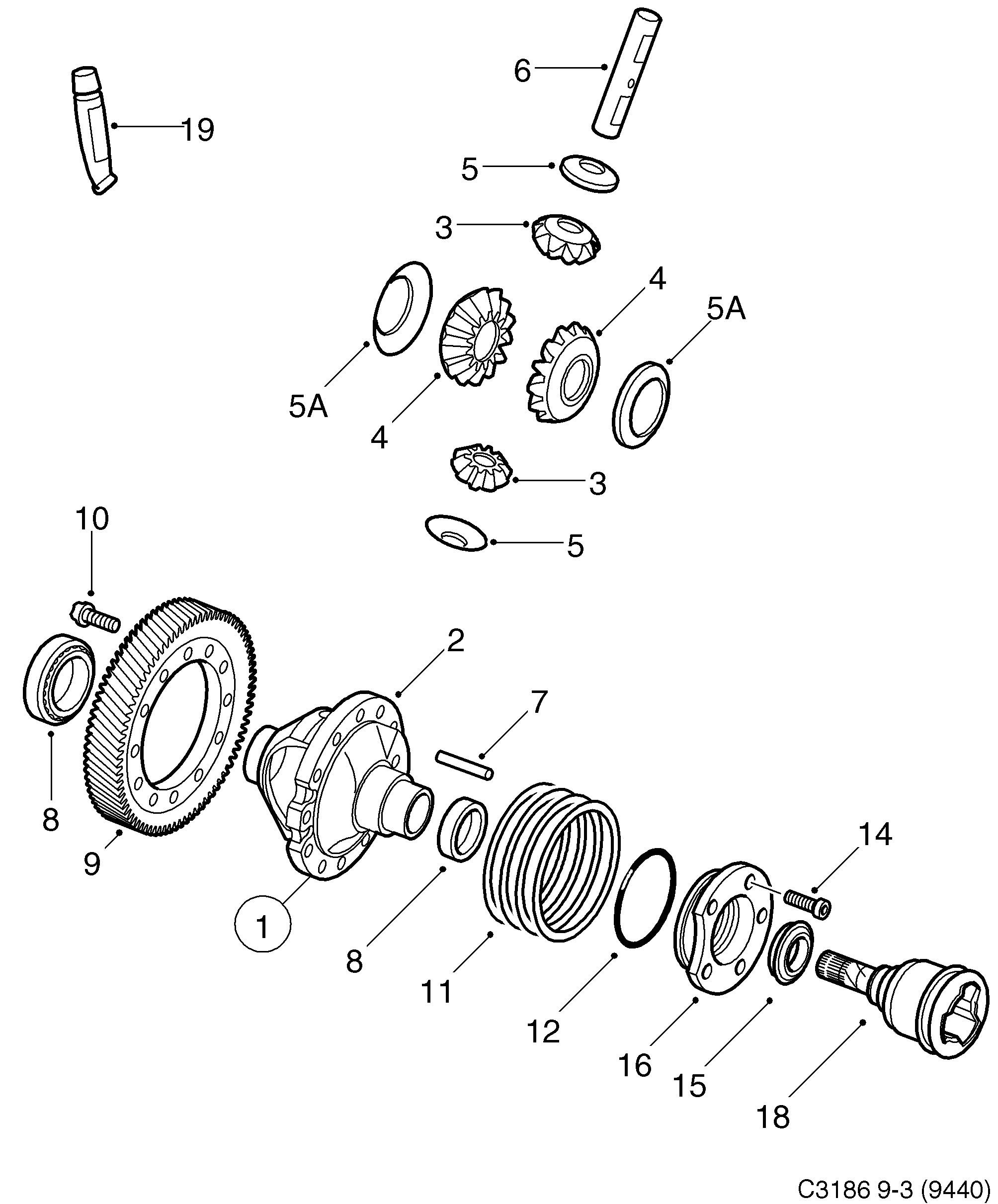

Saab 9-3 (9440) Differential 5-speed diagram

Pos	Article	Part No.
1	Differential	90490986 (replaces 90490906)
1	Differential	90490986
1	Differential	55572205 (replaces 55569883)
1	Differential	55572205
2	Differential housing	90490812
3	Differential pinion	12792574
4	Differential pinion	12792573
5	Washer	90490816
5	Washer	55560725
5A	Washer	55560724 (replaces 12755080)
5A	Washer	55560724
6	Differential shaft	12755081
7	Roll pin	30563333
8	Roller bearing	12788353 (replaces 90490865)
9	Gear	55354670 (replaces 12791539)
9	Gear	55354670
9	Gear	90490907
9	Crown wheel	55558730
10	Screw	55562646 (replaces 93176738)
10	Torx screw	55562646
11	Adjusting washer	90511232
11	Adjusting washer	90511233
11	Adjusting washer	90511234
11	Adjusting washer	90511235
11	Adjusting washer	90541204
12	O-ring	90486232
14	Screw	92151830 (replaces 90511240)
14	Screw	92151830
15	Seal	12755013
15	Seal	55353153
16	Bearing seat	90543263
19	Flange sealant	90542117
