Saab 9-3 (9440) 2004-2009 Output shaft 5-speed

Group 4 Transmission, section 2450

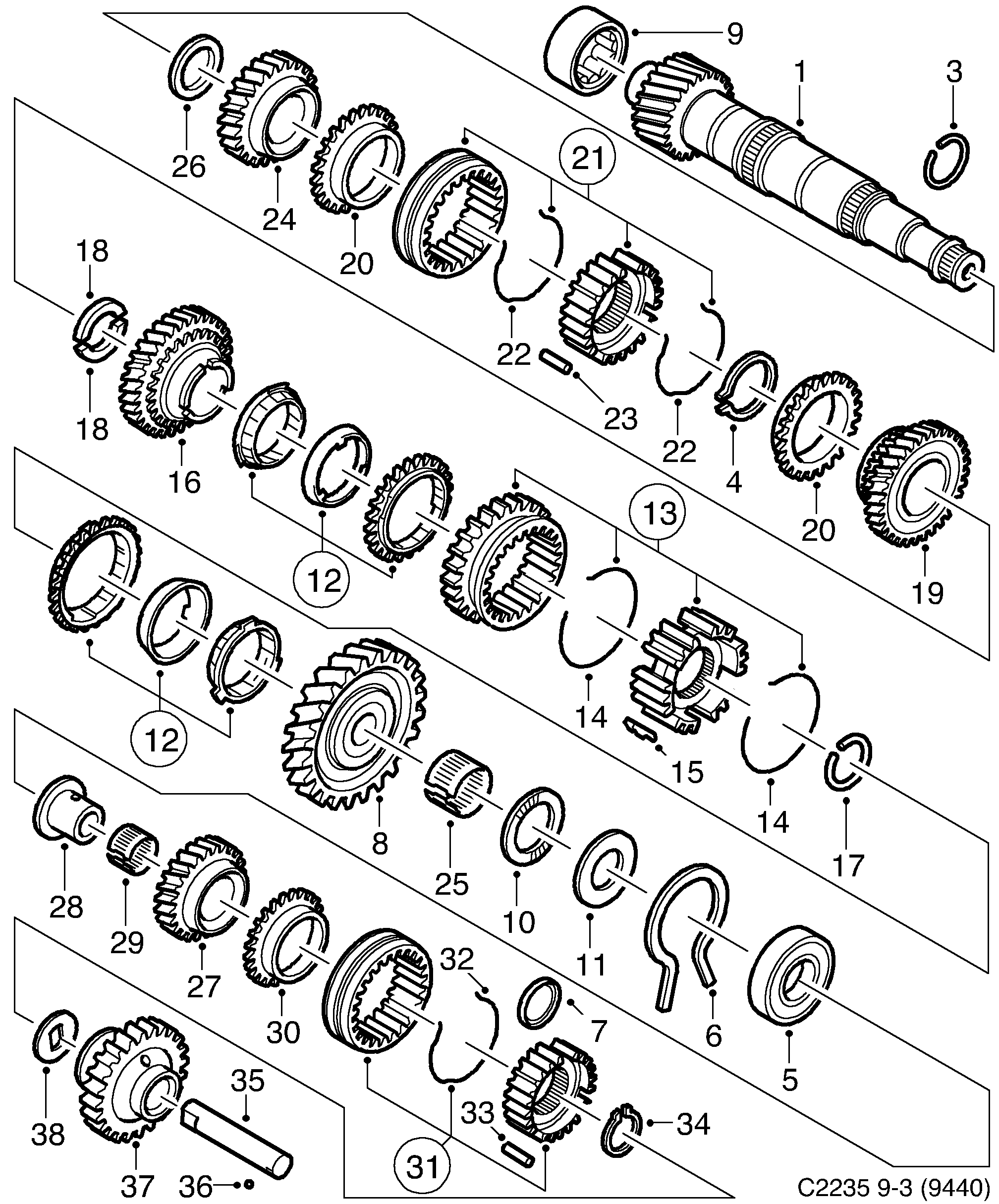

Saab 9-3 (9440) Output shaft 5-speed diagram

Pos	Article	Part No.
1	Pinion shaft	55350041
	Pinion shaft	55557085 (replaces 55350025)
	Pinion shaft	55557085
	Needle bearing	55564062 (replaces 90465913)
	Hub	55350146
3	Snap ring	90465911
3	Snap ring	90465912
4	Snap ring	90446131
4	Snap ring	90446132
5	Roller bearing	24466959
6	Snap ring	24466960
7	Washer	90465914
8	Gear	55350093
9	Roller bearing	55350152
9	Roller bearing	55565098
10	Needle bearing	24466888
	Needle bearing	55350231
11	Washer	24466890
12	Synchromesh	93174820
13	Sliding gear set	93183309
14	Companion flange	55558717 (replaces 55350155)
14	Plunger	55558717
15	Gear	55350143
16	Gear	55350097
17	Snap ring	90235914
18	Washer	90250127
18	Thrust washer	55566239
19	Gear	55350106
20	Synchromesh	55350139
21	Hub	93174558
24	Gear	55350115
26	Washer	90446142
27	Gear	55350125
28	Needle bearing	90446140 (replaces 55350153)
29	Needle bearing	90578329 (replaces 55350154)
30	Synchromesh	55350140
31	Hub	93174575
	Hub	55350149
34	Snap ring	90217444
35	Shift rail	90065212
36	Ball	11013311
37	Gear	55350137
37	Reverse gear	94718849
38	Washer	90032057
