Saab 9-3 (9440) 2003-2005 Shafts, gears Output shaft

Group 4 Transmission, section 2400

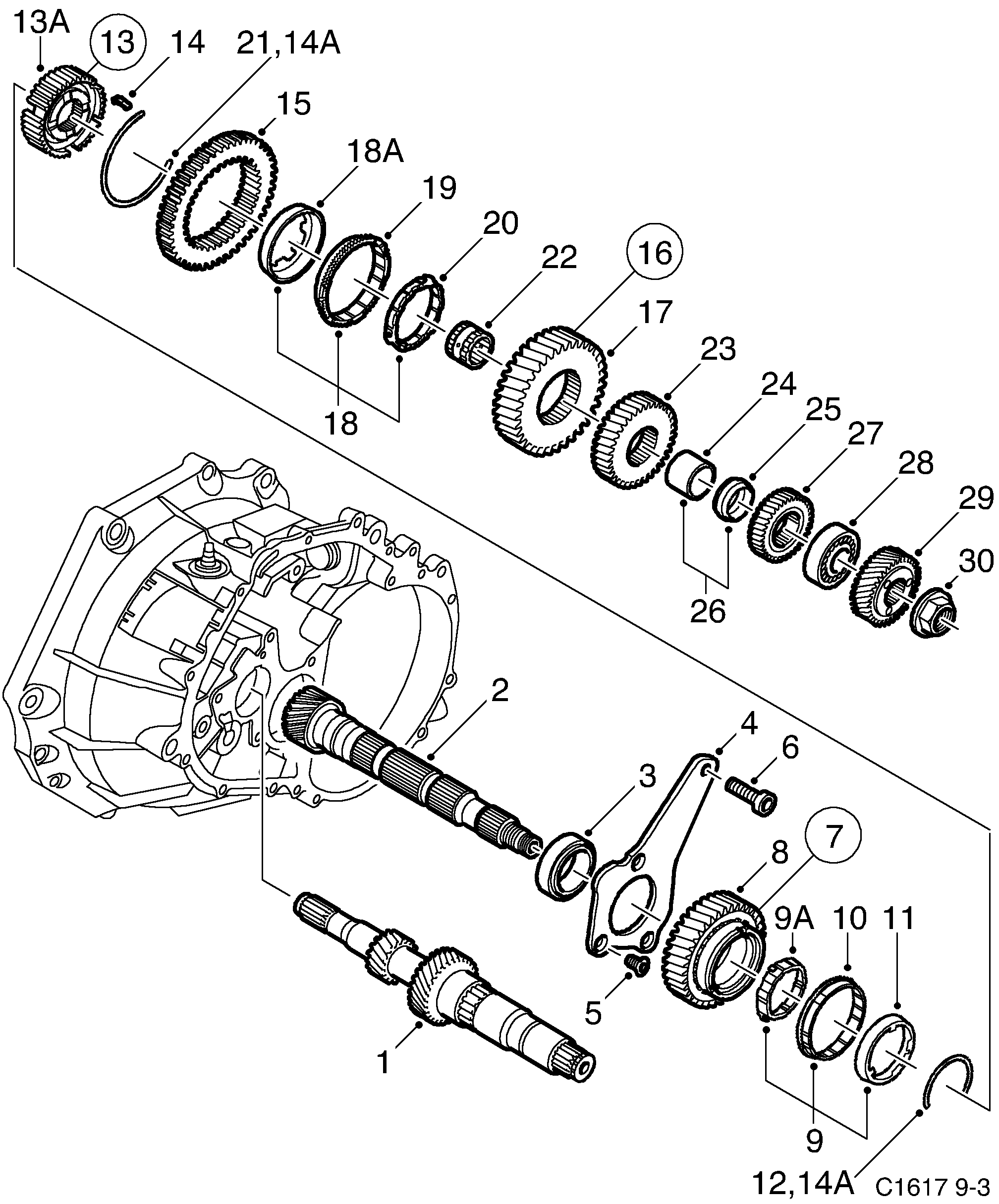

Saab 9-3 (9440) Shafts, gears Output shaft diagram

Pos	Article	Part No.
2	Pinion shaft	55354668 (replaces 12791534)
2	Pinion shaft	90490905
3	Roller bearing	90490864
4	Support	30564109
5	Screw	55561651 (replaces 90541195)
6	Screw	55561611
7	Gear	90490938
8	Gear	90490889
7	Gear	90490954
8	Gear	90490888
9	Synchromesh	90511189
9A	Synchromesh	30555110
10	Synchromesh	30555111
11	Synchromesh	90372118
12	Spring ring	90344649
13	Hub	90490823
13A	Hub	90490773
14	Companion flange	90335876
15	Sleeve	55353594 (replaces 12755196)
15	Sleeve	55353594
16	Gear	90490939
17	Gear	30546137
16	Gear	90490824
17	Gear	90490805
22	Bearing bushing	90512198
23	Gear	90511218
26	Sleeve	55352125
27	Gear	90511221
28	Roller bearing	90490871
29	Gear	90490809
30	Nut	12755195
