Saab 9-3 (9440) 2003-2011 Shafts, gears Input shaft

Group 4 Transmission, section 2300

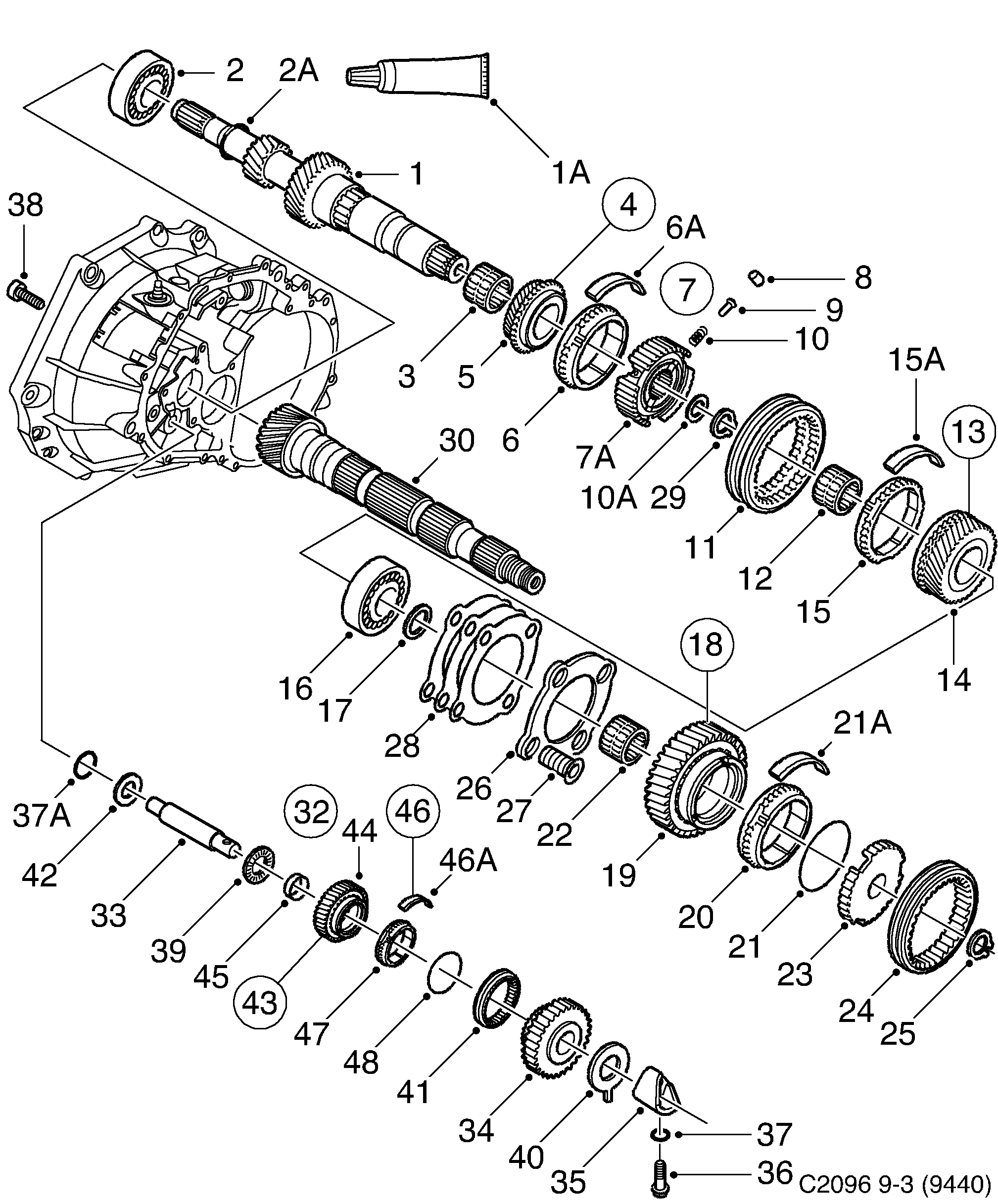

Saab 9-3 (9440) Shafts, gears Input shaft diagram

Pos	Article	Part No.
1	Shaft	90490893
1	Shaft	90490892
1A	Grease	90397024
2	Roller bearing	90490861
3	Needle bearing	90490856
4	Gear	55352414
5	Gear	90490962
6	Synchromesh	90490974
6A	Leaf spring	90490860
7	Hub	55352403
7A	Hub	90490955
8	Roller	90511265
9	Plunger	90511266
10	Compression spring	55354967
10A	Washer	90543241
11	Sleeve	12755210
12	Needle bearing	90490857
13	Gear	55352415
14	Gear	90490963
16	Roller bearing	90490868
17	Snap ring	90511077
18	Gear	55352416
19	Gear	55352084
20	Synchromesh	90490977
21	Spring ring	90511081
21A	Leaf spring	12791537
22	Needle bearing	90511083
23	Hub	93192610 (replaces 9117779)
23	Hub	93192610
24	Sleeve	93192610 (replaces 12755239)
25	Snap ring	90511085
26	Support	90511104
27	Screw	90511105
28	Adjusting washer	90511106
28	Adjusting washer	90511107
28	Adjusting washer	90511108
28	Adjusting washer	90511273
28	Adjusting washer	90511274
29	Lock ring	90511109
32	Gear	55353992
32	Gear	55352410
33	Shift rail	90541189
34	Gear	90511112
35	Support	90511113
36	Flange screw	92152408 (replaces 55354192)
36	Flange screw	92152408
37	O-ring	90541193
38	Screw	92151830 (replaces 90511240)
38	Screw	92151830
39	Needle bearing	90490855
40	Thrust washer	90511118
41	Sleeve	90490968
42	Spacer washer	90541192
43	Gear	55556488
43	Reverse gear	55352399
43	Gear	55352409 (replaces 93177722)
44	Reverse gear	90490967
44	Reverse gear	90490966
45	Bushing	30549335
46	Synchromesh	55352080
46A	Leaf spring	12791541
47	Synchromesh	90490971
48	Spring ring	90511116
