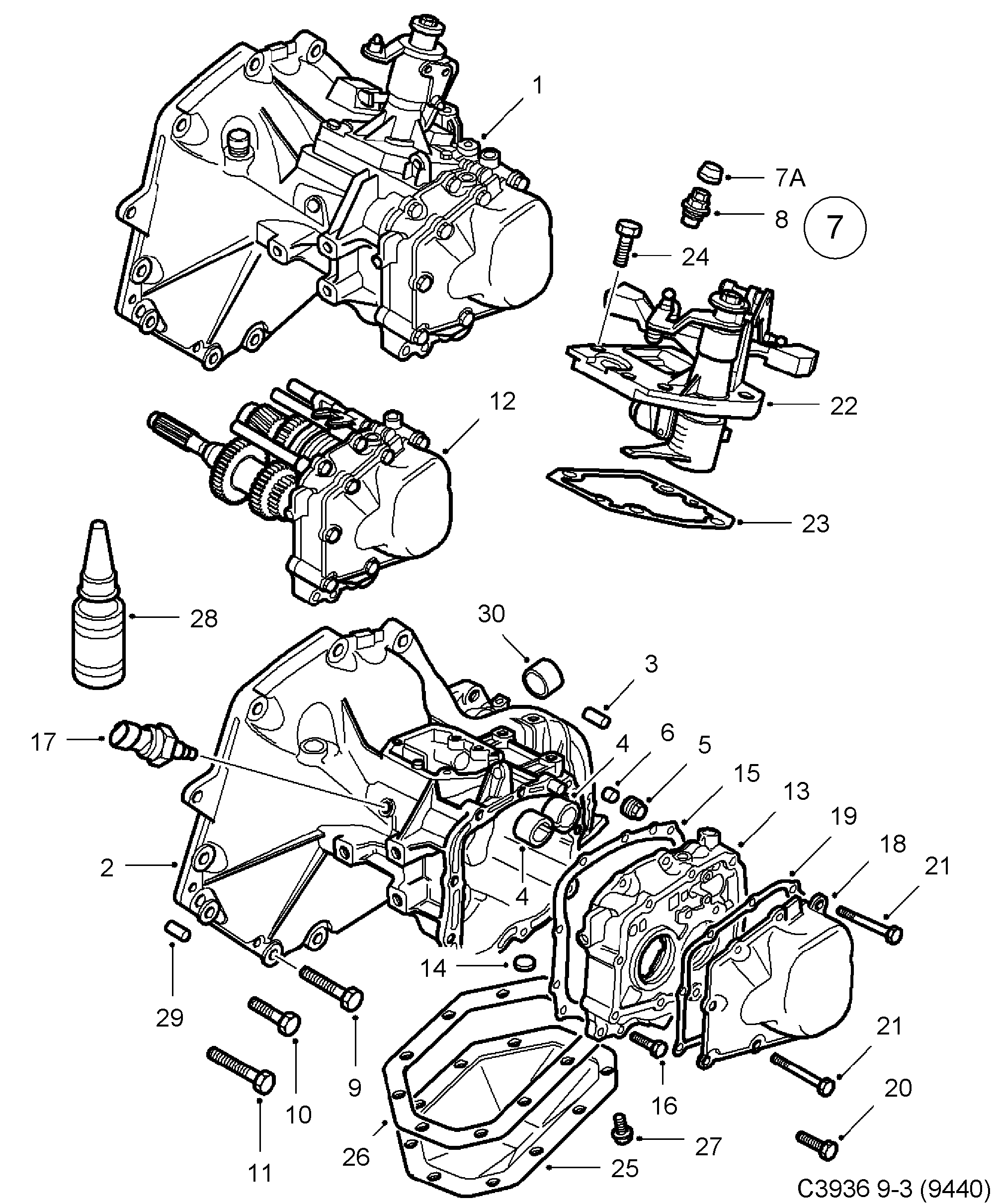

Group 4 Transmission, section 2025
| Pos | Article | Part No. |
|---|---|---|
| 2 | Bell housing | 11097631 (replaces 9117906) |
| 2 | Clutch housing | 93183221 |
| 2 | Clutch housing | 93190989 |
| 3 | Guide sleeve | 90343317 |
| 4 | Bushing | 90334359 |
| 5 | Plug | 11030004 |
| 6 | Magnet | 3449250 |
| 7 | Bleeder screw | 93182491 |
| 7A | Protective cap | 55354919 (replaces 3442140) |
| 7A | Cloth | 55354919 |
| 8 | Bleeder screw | 55354920 |
| 8 | Plug | 93182491 (replaces 90086885) |
| 9 | Screw | 11055767 |
| 9 | Torx screw | 11097631 |
| 9 | Nut | 11900441 |
| 10 | Screw | 11091693 |
| 11 | Screw | 11072762 |
| 12 | Cover | 55561817 (replaces 55350058) |
| 12 | Bearing shield | 55561817 |
| 12 | Bearing shield | 24578520 (replaces 55565081) |
| 13 | Cover | 55561811 (replaces 55350050) |
| 13 | Transmission housing | 55565361 |
| 14 | Magnet | 8957605 |
| 15 | Gasket | 90345457 |
| 16 | Screw | 11041482 |
| 17 | Switch | 12846100 |
| 18 | Cover | 90523630 |
| 19 | Gasket | 55564101 (replaces 90522082) |
| 19 | Gasket | 55564101 |
| 20 | Screw | 11029964 |
| 21 | Screw | 11098001 |
| 21 | Torx screw | 94724570 |
| 22 | Cover | 55355500 |
| 23 | Gasket | 90345458 |
| 24 | Screw | 11102861 |
| 25 | Cover | 24456249 |
| 25 | Cover | 93190842 (replaces 90199030) |
| 26 | Gasket | 90345227 |
| 27 | Hexagon screw | 90335969 |
| 28 | Flange sealant | 90542117 |
| 29 | Sleeve | 90351708 |
| 30 | Cover | 90470781 |
