Saab 9-3 (9440) 2003-2011 Connector housing etc 30-pin - 32-pin

Group 3b Electrical, connector, section 95

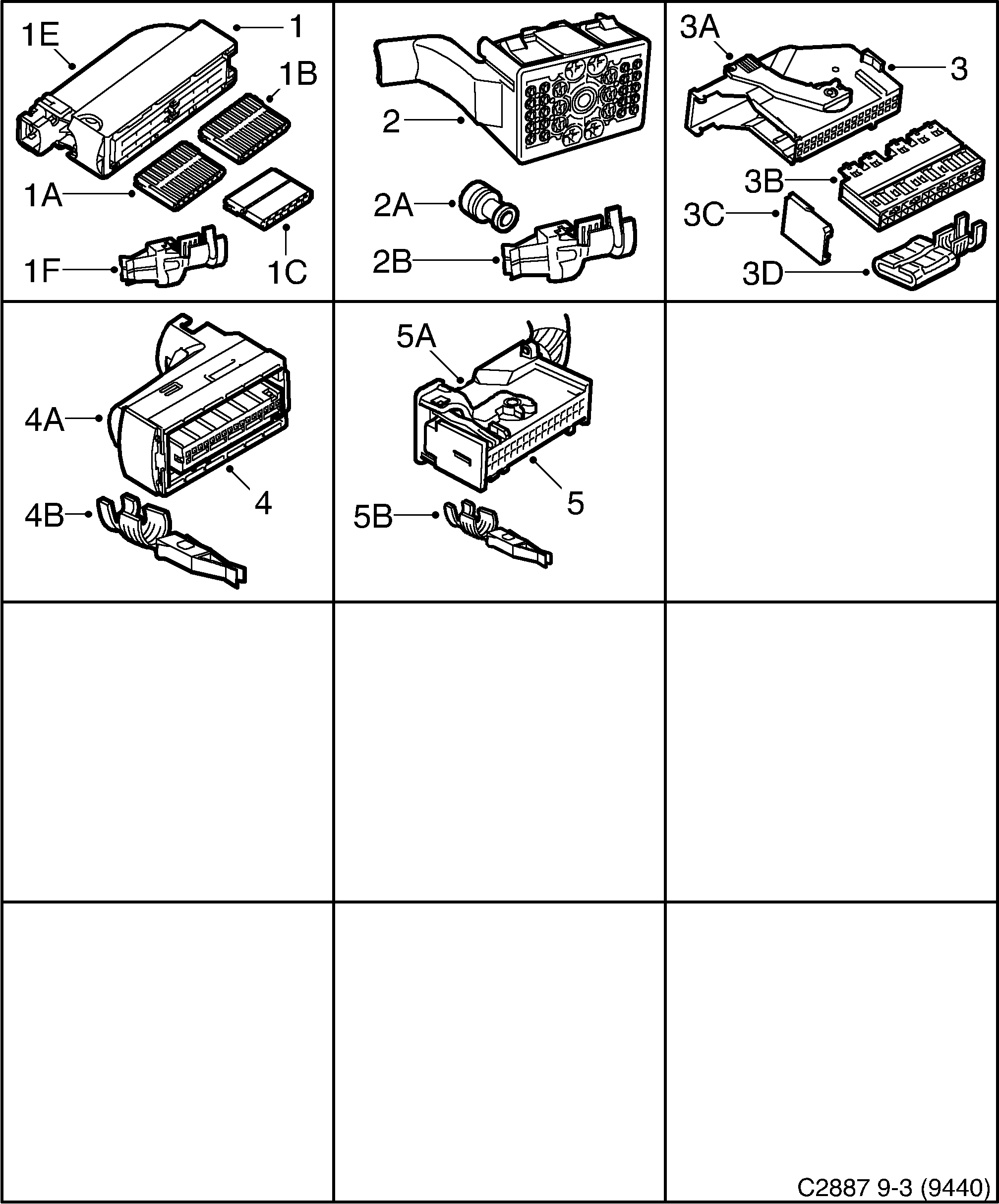

Saab 9-3 (9440) Connector housing etc 30-pin - 32-pin diagram

Pos	Article	Part No.
1	Connector housing	12789899
1A	Connector housing	12789901
1B	Connector housing	12789919
1C	Connector housing	12789902
1E	Cover	12789900
1F	Cable terminal	12790414
1F	Cable terminal	12789796
2	Connector housing	24414867
2A	Seal	12803750
2A	Seal	12798375
2A	Seal	12798378
2B	Cable terminal	12790413 (replaces 12790641)
2B	Cable terminal	12790409
2B	Cable terminal	12790414 (replaces 12790643)
2B	Cable terminal	12970428
2B	Cable terminal	12790430
3	Connector housing	12799075
3A	Cover	12799076
3B	Connector housing	12799083
3C	Locking	12799084
3D	Cable terminal	12756970
4	Connector housing	12790233
4A	Cover	12790288
4B	Cable terminal	12789765
4B	Cable terminal	12789767
5	Connector housing	12798073
5A	Cover	12798074
