Saab 9-3 (9440) 2003-2011 Connector housing etc 18-pin - 22-pin

Group 3b Electrical, connector, section 90

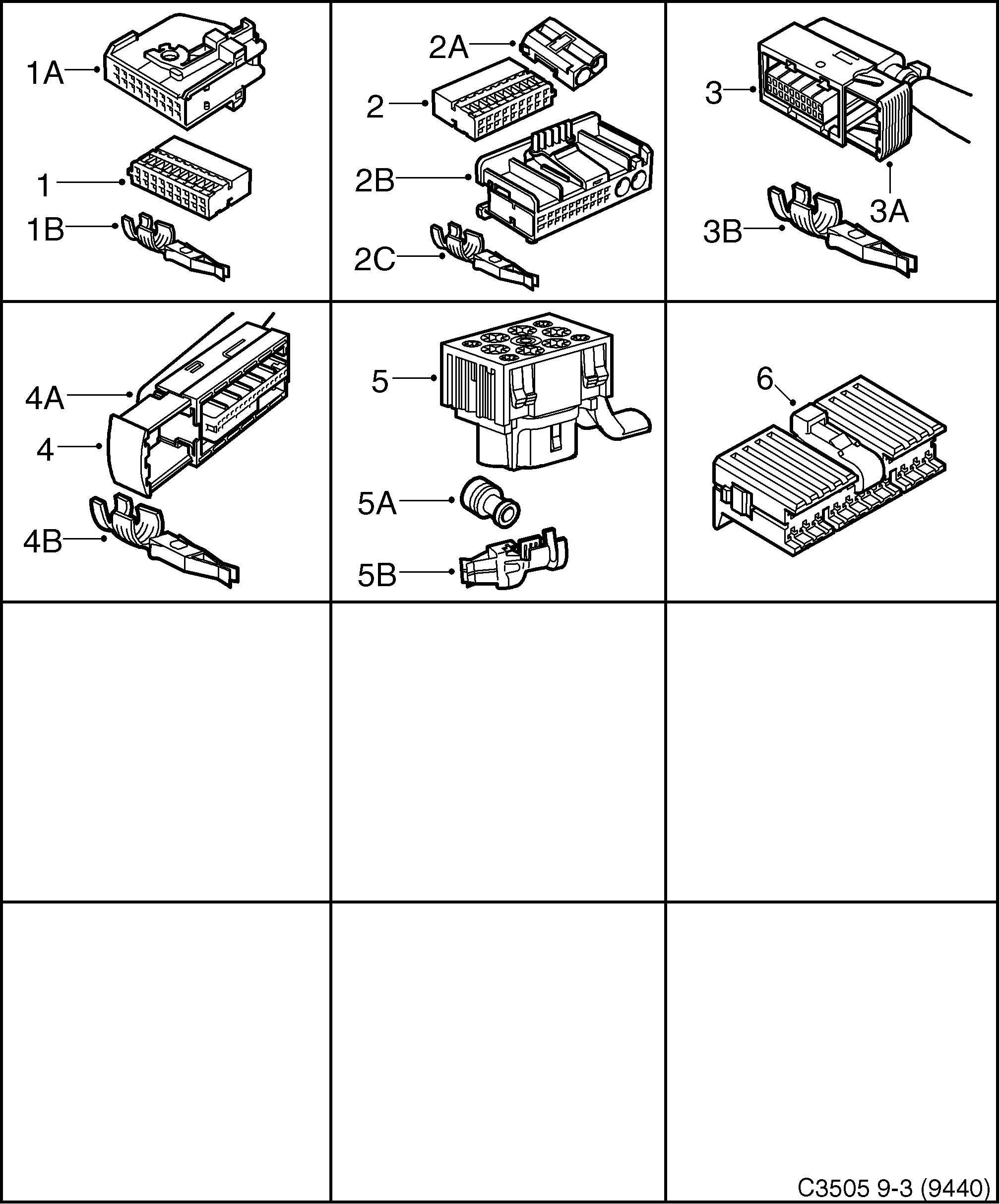

Saab 9-3 (9440) Connector housing etc 18-pin - 22-pin diagram

Pos	Article	Part No.
1	Connector housing	12789539
1A	Cover	12789540
1B	Cable terminal	12789765
2	Connector housing	12791230
2A	Connector housing	12791220
2B	Cover	12791229
3	Connector housing	12795739
3A	Locking	12795740
4	Connector housing	12790232
4A	Cover	12790287
4B	Cable terminal	12789760
4B	Cable terminal	12789767
5	Connector housing	24414869
5A	Seal	12803750
5A	Seal	12798375
5A	Seal	12798378
5B	Cable terminal	12790413
5B	Cable terminal	12790414
5B	Cable terminal	12970428
5B	Cable terminal	12790430
5B	Cable terminal	12805868
6	Connector housing	12764816
	Locking	12764817
