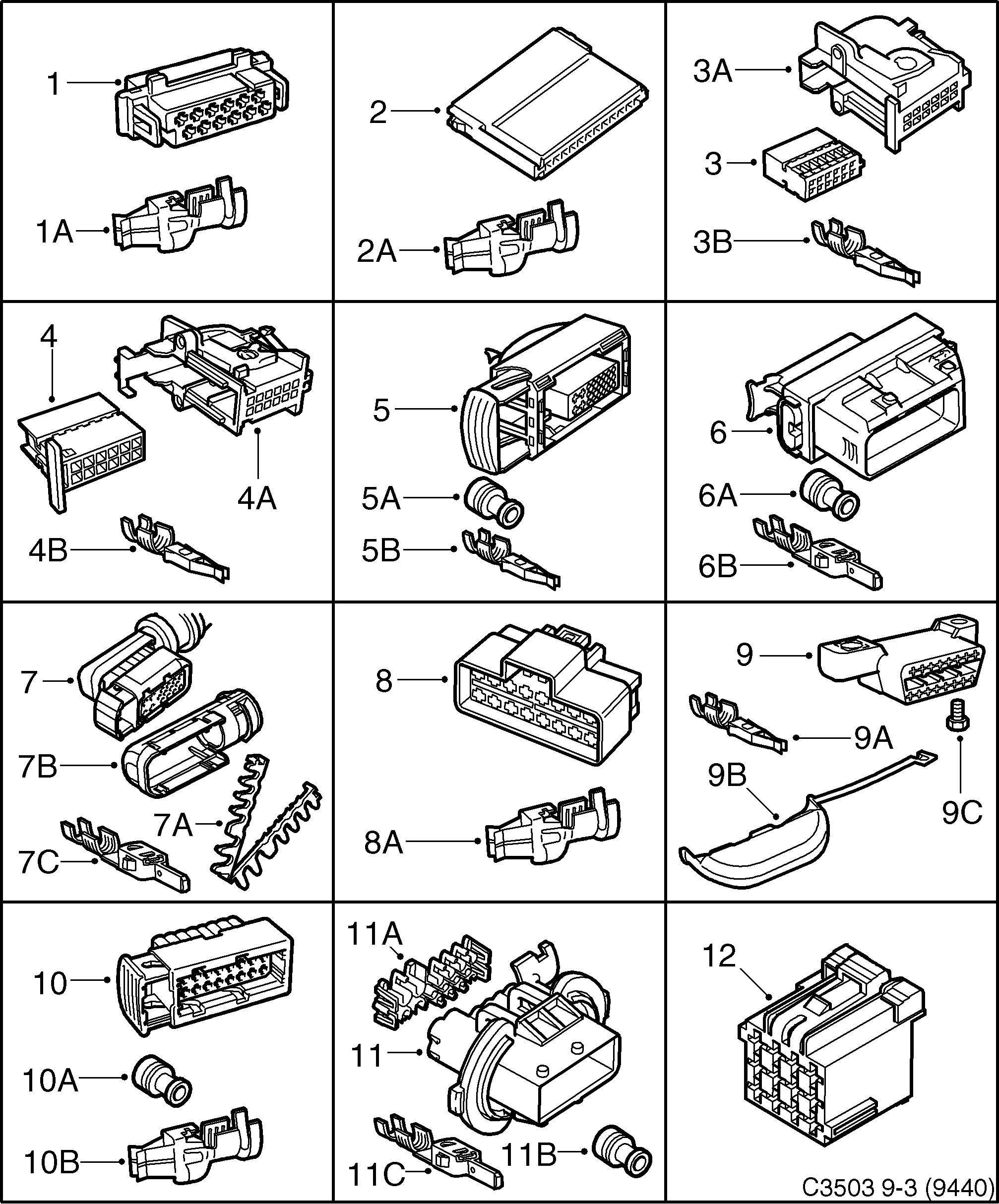

Group 3b Electrical, connector, section 80
| Pos | Article | Part No. |
|---|---|---|
| 1 | Connector housing | 12789441 |
| 1A | Cable terminal | 12789794 |
| 1A | Cable terminal | 12789796 |
| 2 | Connector housing | 12789918 |
| 2A | Cable terminal | 12789765 |
| 3 | Connector housing | 12802174 |
| 3A | Cover | 12802175 |
| 3B | Cable terminal | 12789767 |
| 4A | Cover | 12802176 |
| 5 | Connector housing | 24414857 |
| 5A | Seal | 12803750 |
| 5A | Seal | 12798375 |
| 5B | Cable terminal | 12790413 |
| 5B | Cable terminal | 12796792 |
| 6 | Connector housing | 24414931 |
| 6A | Seal | 12798372 |
| 6A | Seal | 12798370 |
| 6B | Cable terminal | 12790612 |
| 6B | Cable terminal | 12789934 |
| 7 | Connector housing | 12790000 |
| 7A | Locking | 12790001 |
| 7B | Cover | 12790002 |
| 7C | Cable terminal | 12789792 (replaces 12790605) |
| 7C | Cable terminal | 12790609 |
| 8 | Connector housing | 12788830 |
| 9 | Connector housing | 12790270 |
| 9A | Cable terminal | 12790414 |
| 9B | Cover | 12796295 |
| 9C | Plate screw | 92153220 |
| 10 | Connector housing | 12791005 |
| 10B | Cable terminal | 12789794 (replaces 12790607) |
| 11 | Connector housing | 12794556 |
| 11A | Locking | 12790005 |
| 11B | Seal | 12790006 |
| 11C | Cable terminal | 12790358 |
| 11C | Cable terminal | 12790612 (replaces 12790667) |
| 11C | Cable terminal | 12789934 (replaces 12790362) |
| 12 | Connector housing | 12770382 |
