Saab 9-3 (9440) 2003-2011 Connector housing etc 10-pin

Group 3b Electrical, connector, section 75

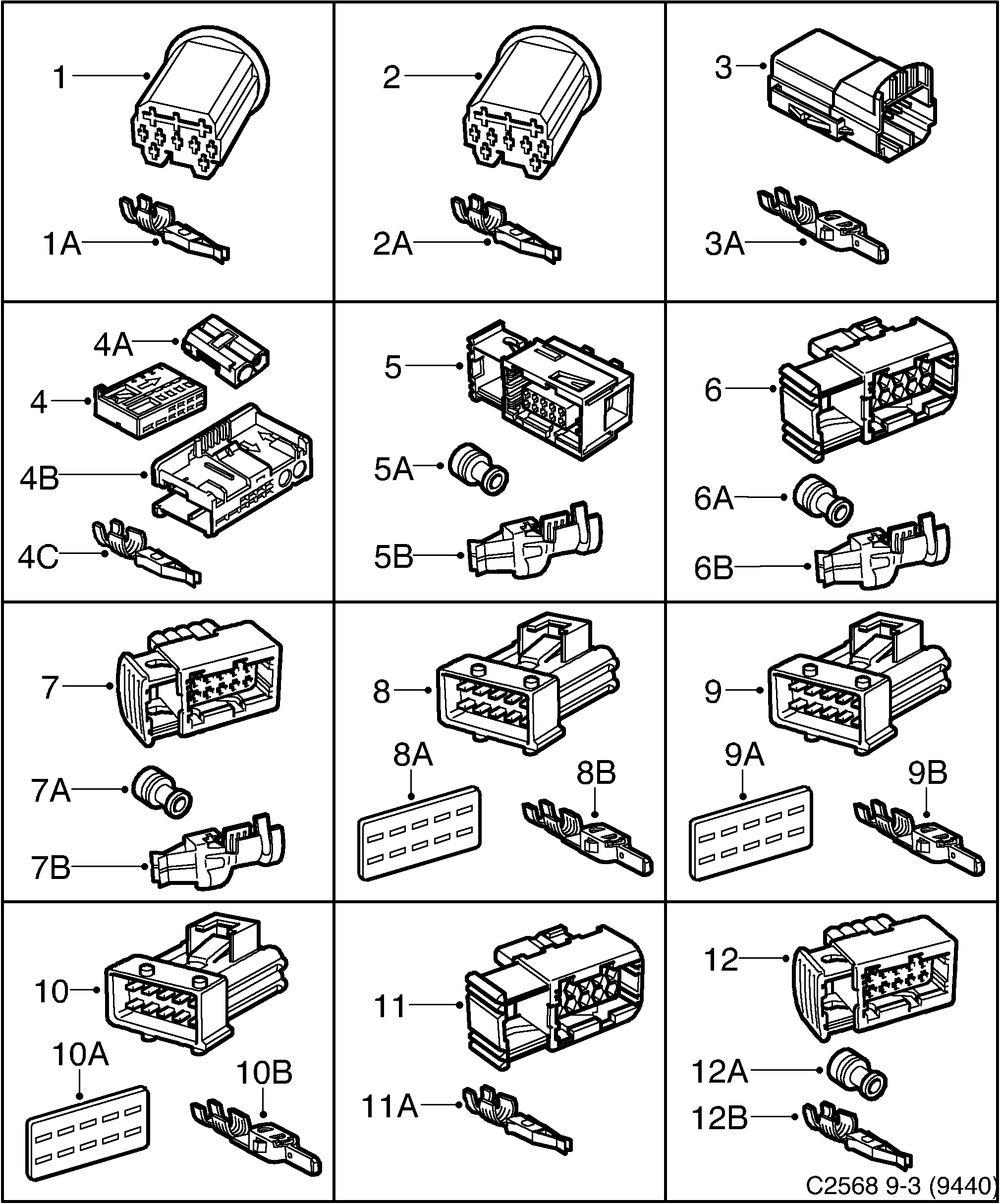

Saab 9-3 (9440) Connector housing etc 10-pin diagram

Pos	Article	Part No.
1	Connector housing	12756334 (replaces 12790260)
1A	Cable terminal	12790414
1A	Cable terminal	12789794
2	Connector housing	12756333 (replaces 12790261)
3	Connector housing	12756330 (replaces 12790336)
3A	Cable terminal	12790614
3A	Cable terminal	12789932
4	Connector housing	12791710
4A	Connector housing	12791220
4B	Cover	12791709
4C	Cable terminal	12797466
4C	Cable terminal	12797472
5	Connector housing	24414904
5A	Seal	12803750
5A	Seal	12798375
5B	Cable terminal	12790413 (replaces 12790641)
5B	Cable terminal	12790414 (replaces 12790643)
6	Connector housing	12788955
6A	Seal	12798372
6A	Seal	12798370
6B	Cable terminal	12789792 (replaces 12790605)
6B	Cable terminal	12789794 (replaces 12790607)
6B	Cable terminal	12790609
7	Connector housing	12788956
8	Connector housing	12788959
9A	Seal	12788965
9B	Cable terminal	12790358
9B	Cable terminal	12789932 (replaces 12790360)
9B	Cable terminal	12789934 (replaces 12790362)
11	Connector housing	12788954
11A	Cable terminal	12789796
11A	Cable terminal	12789792
12	Connector housing	12788957
