Saab 9-3 (9440) 2003-2011 Connector housing etc 50-pin - 110-pin

Group 3b Electrical, connector, section 110

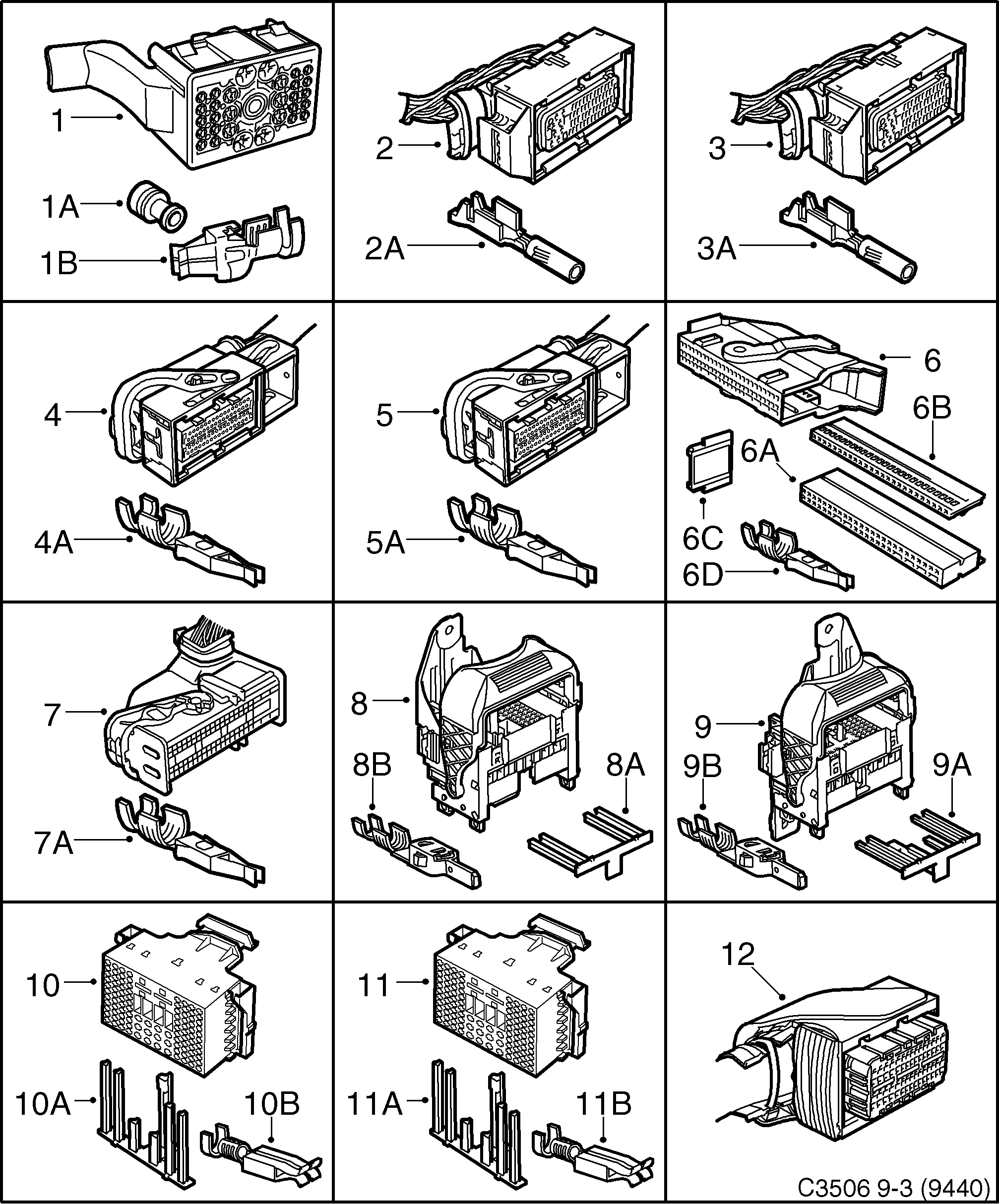

Saab 9-3 (9440) Connector housing etc 50-pin - 110-pin diagram

Pos	Article	Part No.
1	Connector housing	24414868
1A	Seal	12803750
1A	Seal	12798372
1A	Seal	12798370
1A	Seal	12798375
1A	Seal	12798378
1B	Cable terminal	12789792 (replaces 12790605)
1B	Cable terminal	12790413 (replaces 12790641)
1B	Cable terminal	12790414 (replaces 12790643)
1B	Cable terminal	12789794 (replaces 12790607)
1B	Cable terminal	12790609
1B	Cable terminal	12970428
1B	Cable terminal	12790430
2	Connector housing	5351226 (replaces 12793913)
2A	Cable terminal	12790340
3	Connector housing	5351234 (replaces 12793914)
3A	Cable terminal	12789758
4	Connector housing	90587350
4A	Cable terminal	12790409
5	Connector housing	90587351
5A	Cable terminal	12790408
6	Cover	12796586
6A	Connector housing	12796592
6B	Connector housing	12796591
6C	Locking	12799375
6D	Cable terminal	12756970
6	Cover	12796598
7	Connector housing	24414910
7A	Cable terminal	12789765
7A	Cable terminal	12789767
7A	Cable terminal	12797472
8	Connector housing	12790231
8A	Locking	12790289
8B	Cable terminal	12790612
8B	Cable terminal	12790414
8B	Cable terminal	12789934
8B	Cable terminal	12795308
9	Connector housing	12790230
9A	Locking	12790285
9B	Cable terminal	12790614
9B	Cable terminal	12790627
9B	Cable terminal	12789932
9B	Cable terminal	12804310
9B	Cable terminal	12804311
10	Connector housing	12790229
10A	Locking	12790284
10B	Cable terminal	12789794
10B	Cable terminal	12789796
10B	Cable terminal	12795309
11	Connector housing	12791150
11A	Locking	12791151
12	Connector housing	13165094
