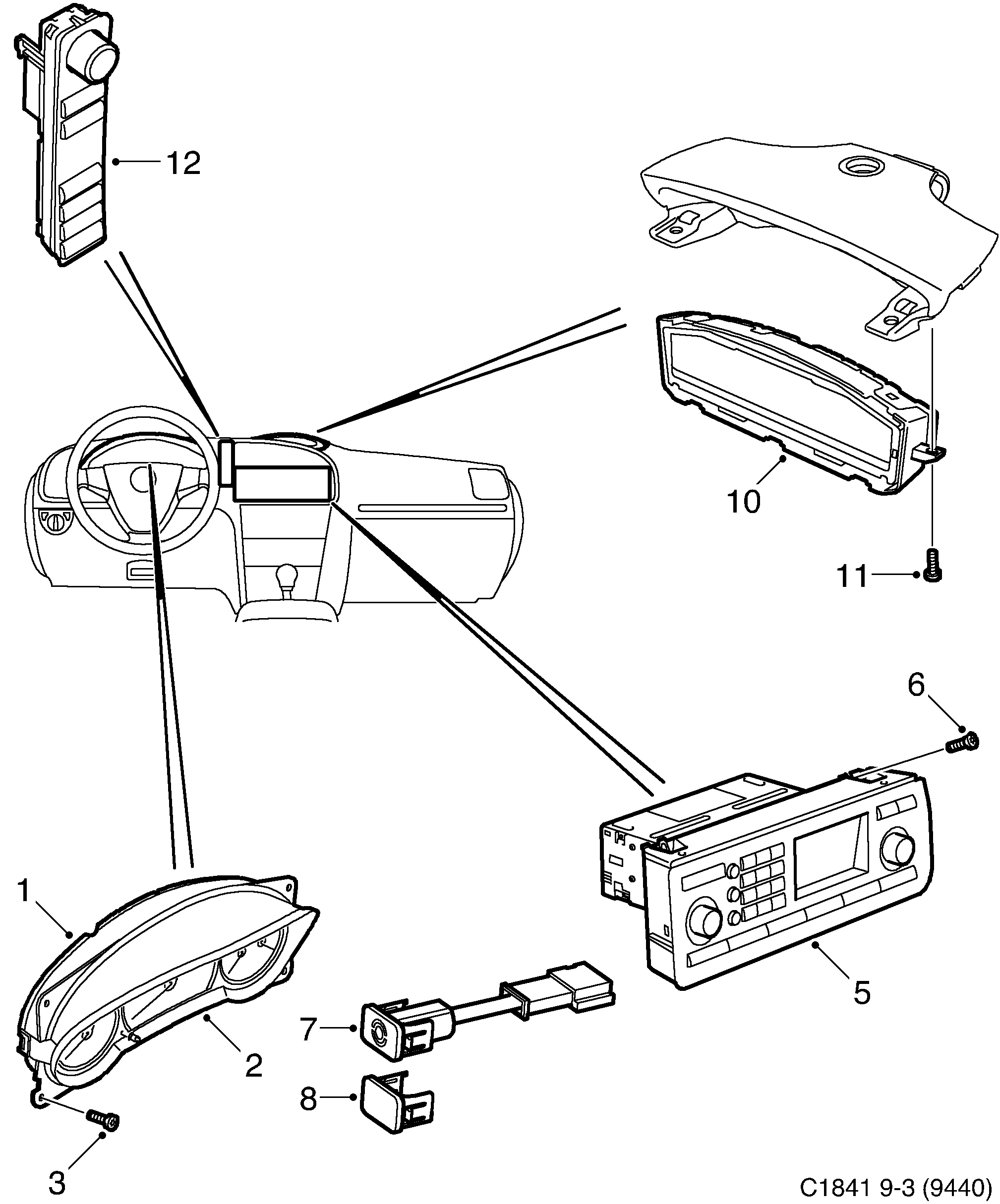

Group 3a Electrical, general, section 5000
| Pos | Article | Part No. |
|---|---|---|
| 1 | Main instrument | 12802330 (replaces 12785194) |
| 1 | Main instrument | 12800505 |
| 1 | Main instrument | 12802330 (replaces 12802917) |
| 1 | Main instrument | 12802330 |
| 1 | Main instrument | 12785195 |
| 1 | Main instrument | 12802331 (replaces 12800506) |
| 1 | Main instrument | 12802331 (replaces 12802918) |
| 1 | Main instrument | 12802331 |
| 1 | Main instrument | 12802332 (replaces 12785196) |
| 1 | Main instrument | 12800507 |
| 1 | Main instrument | 12802332 (replaces 12802919) |
| 1 | Main instrument | 12802332 |
| 1 | Main instrument | 12802333 (replaces 12785197) |
| 1 | Main instrument | 12802333 (replaces 12800508) |
| 1 | Main instrument | 12802333 (replaces 12802920) |
| 1 | Main instrument | 12802333 |
| 1 | Main instrument | 12802334 (replaces 12785198) |
| 1 | Main instrument | 12802334 (replaces 12800509) |
| 1 | Main instrument | 12802334 (replaces 12802921) |
| 1 | Main instrument | 12802334 |
| 1 | Main instrument | 12802335 (replaces 12785199) |
| 1 | Main instrument | 12802335 (replaces 12800510) |
| 1 | Main instrument | 12802335 (replaces 12802922) |
| 1 | Main instrument | 12802335 |
| 1 | Main instrument | 12768227 (replaces 12798587) |
| 1 | Main instrument | 12768227 (replaces 12800511) |
| 1 | Main instrument | 12802923 |
| 1 | Main instrument | 12768227 (replaces 12802336) |
| 1 | Main instrument | 12768227 (replaces 12756234) |
| 1 | Main instrument | 12768227 (replaces 12759333) |
| 1 | Main instrument | 12768227 (replaces 12763124) |
| 1 | Main instrument | 12759334 (replaces 12798588) |
| 1 | Main instrument | 12759334 (replaces 12800512) |
| 1 | Main instrument | 12759334 (replaces 12802924) |
| 1 | Main instrument | 12759334 (replaces 12802337) |
| 1 | Main instrument | 12756235 |
| 1 | Main instrument | 12759334 |
| 1 | Main instrument | 12768228 (replaces 12763125) |
| 1 | Main instrument | 12768229 (replaces 12790786) |
| 1 | Main instrument | 12768229 (replaces 12800513) |
| 1 | Main instrument | 12768229 (replaces 12802925) |
| 1 | Main instrument | 12768229 (replaces 12802338) |
| 1 | Main instrument | 12768229 (replaces 12756236) |
| 1 | Main instrument | 12768229 (replaces 12759335) |
| 1 | Main instrument | 12768229 (replaces 12763126) |
| 1 | Main instrument | 12768230 (replaces 12790787) |
| 1 | Main instrument | 12768230 (replaces 12800514) |
| 1 | Main instrument | 12768230 (replaces 12802926) |
| 1 | Main instrument | 12768230 (replaces 12802339) |
| 1 | Main instrument | 12768230 (replaces 12756237) |
| 1 | Main instrument | 12768230 (replaces 12759336) |
| 1 | Main instrument | 12768230 (replaces 12763127) |
| 1 | Main instrument | 12759337 (replaces 12798589) |
| 1 | Main instrument | 12759337 (replaces 12800515) |
| 1 | Main instrument | 12759337 (replaces 12802927) |
| 1 | Main instrument | 12759337 (replaces 12802340) |
| 1 | Main instrument | 12756238 |
| 1 | Main instrument | 12759337 |
| 1 | Main instrument | 12768231 (replaces 12763128) |
| 1 | Main instrument | 12768232 (replaces 12798590) |
| 1 | Main instrument | 12768232 (replaces 12800516) |
| 1 | Main instrument | 12768232 (replaces 12802928) |
| 1 | Main instrument | 12768232 (replaces 12802341) |
| 1 | Main instrument | 12768232 (replaces 12756239) |
| 1 | Main instrument | 12768232 (replaces 12759338) |
| 1 | Main instrument | 12768232 (replaces 12763129) |
| 2 | Instrument bezel | 12791463 |
| 2 | Instrument bezel | 12758611 (replaces 12758612) |
| 2 | Instrument bezel | 12787874 |
| 2 | Instrument bezel | 12758611 |
| 3 | Screw | 12780283 (replaces 92152214) |
| 5 | Control panel | 12801812 |
| 5 | Control panel | 12804425 (replaces 12799716) |
| 5 | Control panel | 12804425 |
| 5 | Control panel | 12782529 (replaces 12805507) |
| 5 | Control panel | 12782529 (replaces 12761295) |
| 5 | Control panel | 12801813 (replaces 12799717) |
| 5 | Control panel | 12801813 (replaces 12804426) |
| 5 | Control panel | 12801813 |
| 5 | Control panel | 12771910 (replaces 12805508) |
| 5 | Control panel | 12771910 (replaces 12761294) |
| 5 | Control panel | 12799617 (replaces 12799722) |
| 5 | Control panel | 12799617 (replaces 12804428) |
| 5 | Control panel | 12799617 |
| 5 | Control panel | 12804427 (replaces 12799718) |
| 5 | Control panel | 12804427 |
| 5 | Control panel | 12782527 (replaces 12805509) |
| 5 | Control panel | 12782527 (replaces 12761293) |
| 5 | Control panel | 12799618 (replaces 12799719) |
| 5 | Control panel | 12799618 (replaces 12804429) |
| 5 | Control panel | 12799618 |
| 5 | Control panel | 12771912 (replaces 12805510) |
| 5 | Control panel | 12771912 (replaces 12761292) |
| 5 | Control panel | 12799615 (replaces 12799720) |
| 5 | Control panel | 12799615 (replaces 12802382) |
| 5 | Control panel | 12799615 |
| 5 | Control panel | 12805115 |
| 5 | Control panel | 12772170 (replaces 12761291) |
| 5 | Control panel | 12799616 (replaces 12799721) |
| 5 | Control panel | 12799616 (replaces 12802383) |
| 5 | Control panel | 12799616 |
| 5 | Control panel | 12782524 (replaces 12805116) |
| 5 | Control panel | 12782524 (replaces 12761290) |
| Knob | 12775793 | |
| 7 | Switch | 12797129 |
| 8 | Cover | 12797196 |
| 10 | Information display | 12802302 (replaces 12798727) |
| 10 | Information display | 12802302 (replaces 12802403) |
| 10 | Information display | 12802302 |
| 12 | Switch | 12792587 |
| 12 | Switch | 12795205 |
| 12 | Switch | 12792588 |
| 12 | Switch | 12795206 |
