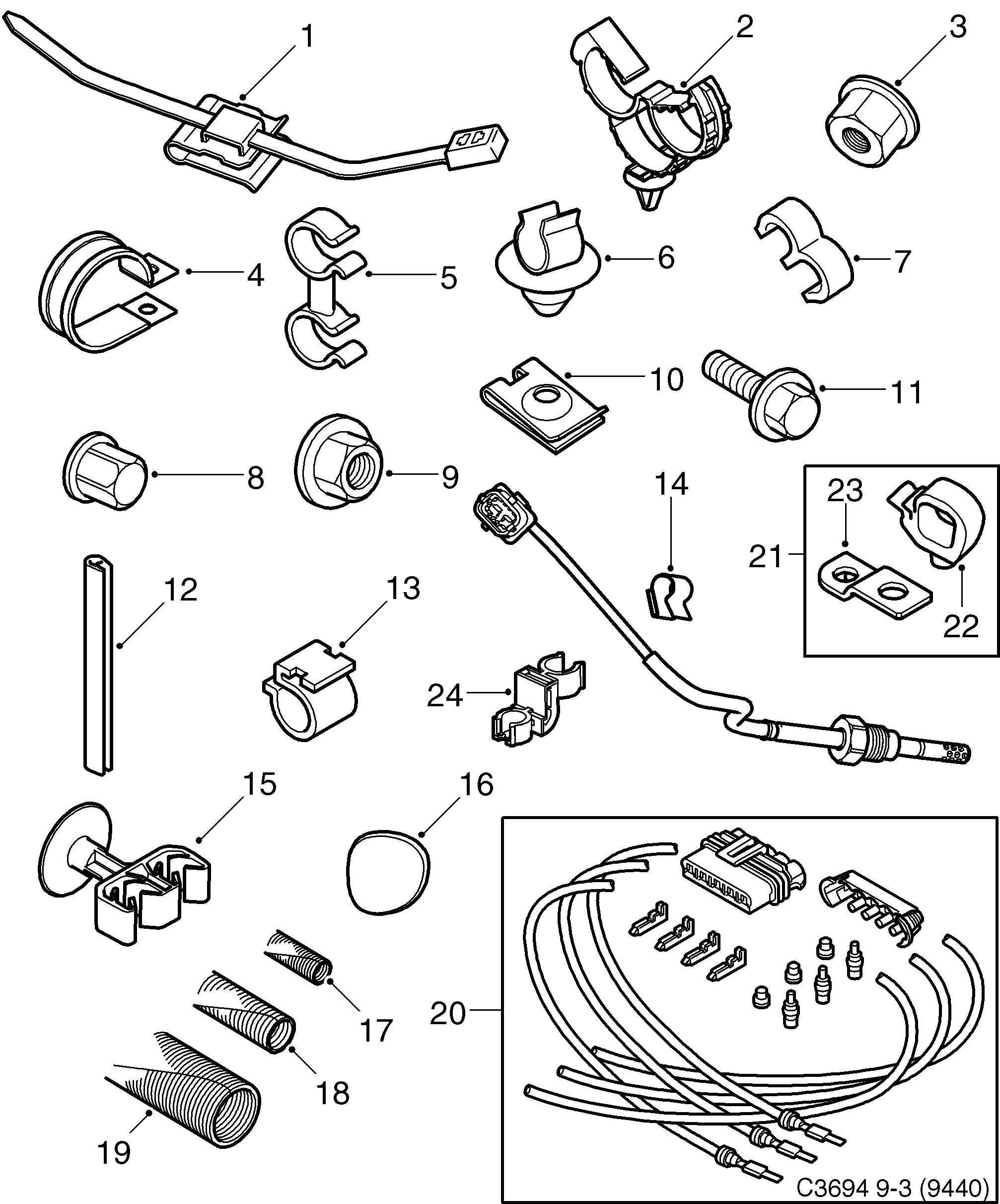

Group 3a Electrical, general, section 4000
| Pos | Article | Part No. |
|---|---|---|
| 1 | Tie strap | 12793557 |
| 1 | Retaining strap | 12846151 |
| 1 | Tie strap | 11900513 |
| 1 | Tie strap | 11900512 |
| 1 | Tie strap | 7971864 |
| 1 | Tie strap | 12757617 |
| 1 | Tie strap | 11900513 (replaces 92150191) |
| 1 | Tie strap | 55559011 |
| 1 | Tie strap | 4807939 |
| 1 | Tie strap | 13137556 |
| 1 | Tie strap | 92152311 |
| 1 | Retaining strap | 90307872 |
| 2 | Clip | 12793970 |
| 3 | Hexagon nut | 11900452 (replaces 92150134) |
| 3 | Hexagon nut | 5125984 |
| 3 | Nut | 11900451 (replaces 92150133) |
| 3 | Nut | 11900451 |
| 3 | Nut | 32026207 (replaces 11900450) |
| 3 | Nut | 11900452 |
| 3 | Nut | 11900439 |
| 4 | Clamp | 92152279 |
| 4 | Clamp | 92152417 |
| 5 | Clamp | 92152263 |
| 5 | Clip | 92152154 |
| 6 | Clamp | 12789574 |
| 7 | Clamp | 12793419 |
| 8 | Plastic nut | 90482479 |
| 8 | Cap nut | 13107553 |
| 9 | Nut | 92152037 |
| 9 | Nut | 11900445 |
| 9 | Hexagon nut | 32026207 |
| 10 | Clip nut | 92152127 |
| 10 | Hexagon nut | 92151836 |
| 10 | Nut | 92150164 |
| 11 | Screw | 11900354 |
| 11 | Screw | 11610066 |
| 11 | Hexagon screw | 11609677 |
| 11 | Screw | 11900012 |
| 11 | Screw | 92152111 |
| 12 | Protecting moulding | 12781142 |
| 13 | Clamp | 7156409 |
| 14 | Clip | 55557053 |
| 15 | Clamp | 90576283 |
| 16 | Foam plastic piece | 12794960 |
| 17 | Tube | 90443557 |
| 18 | Tube | 90443558 |
| 19 | Tube | 90443559 |
| 20 | Connector housing | 93189918 |
| 21 | Bracket | 55206887 |
| 22 | Clip | 93179327 |
| 23 | Bracket | 55206888 |
| 24 | Clip | 90539637 |
