Saab 9-3 (9440) 2006-2011 Doors

Group 3a Electrical, general, section 3240

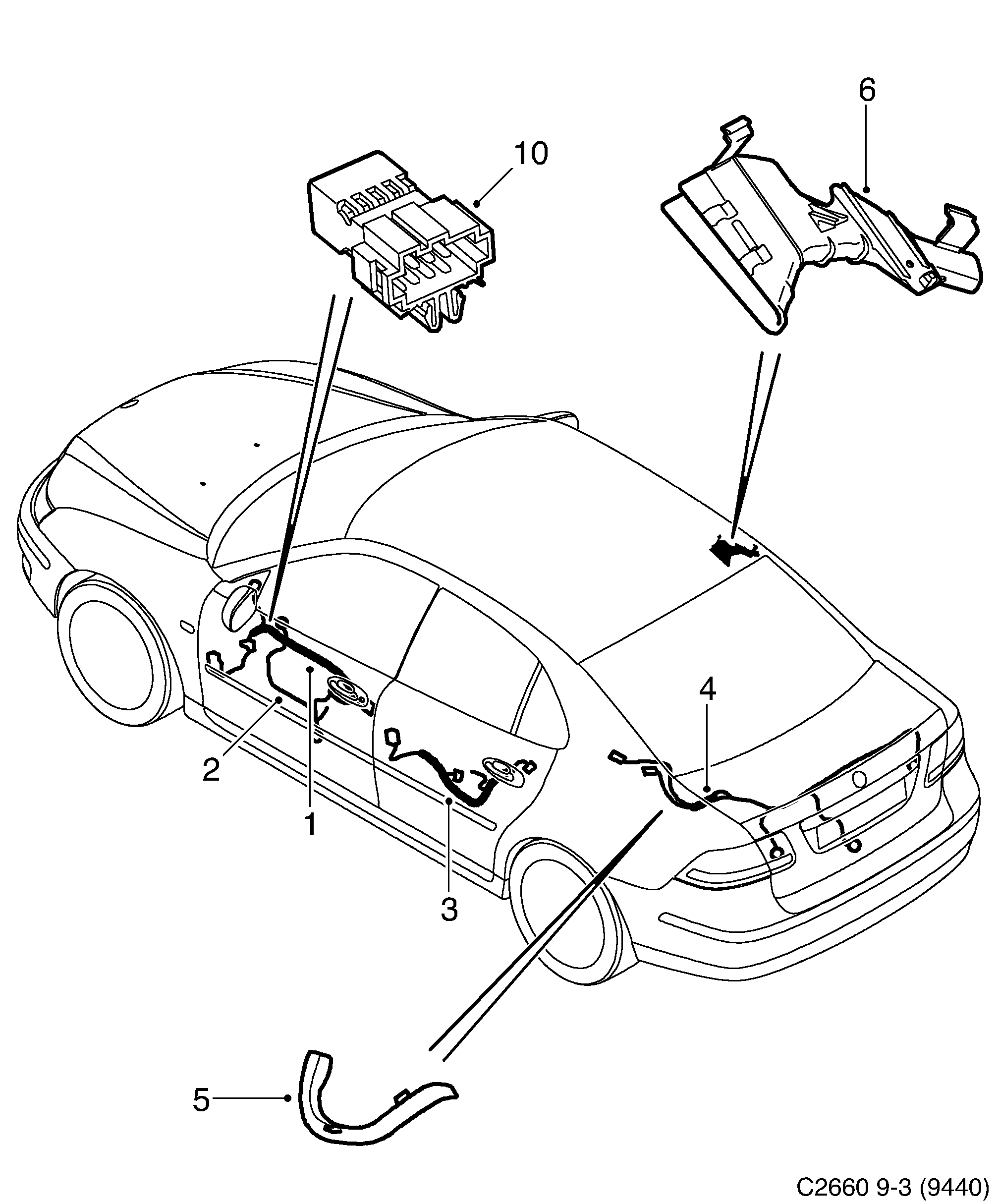

Saab 9-3 (9440) Doors diagram
PosArticlePart No.
1Cable harness12801670
1Cable harness12766781
1Cable harness12801664
1Cable harness12766777
1Cable harness12801671
1Cable harness12766782
1Cable harness12801667
1Cable harness12766778
1Cable harness12833185
1Cable harness12766818
1Cable harness12833181
1Cable harness12766814
1Cable harness12833186
1Cable harness12766819
1Cable harness12833182
1Cable harness12766815
1Cable harness12801673
1Cable harness12766784
1Cable harness12801669
1Cable harness12766780
1Cable harness12801672
1Cable harness12766783
1Cable harness12801668
1Cable harness12766779
1Cable harness12833188
1Cable harness12766821
1Cable harness12833184
1Cable harness12766817
1Cable harness12833187
1Cable harness12766820
1Cable harness12833183
1Cable harness12766816
2Cable harness12804809
2Cable harness12804808
2Cable harness12798143
2Cable harness12798142
2Cable harness12830256
2Cable harness12766834
2Cable harness12832354
2Cable harness12766835
3Cable harness12758462
3Cable harness12778194
3Cable harness12758463
3Cable harness12778195
4Cable harness12785587
4Cable harness12801832
4Cable harness12770992
4Cable harness12830206
4Cable harness12831884
5Duct12796404
6Duct12799709
10Connector housing12790204
