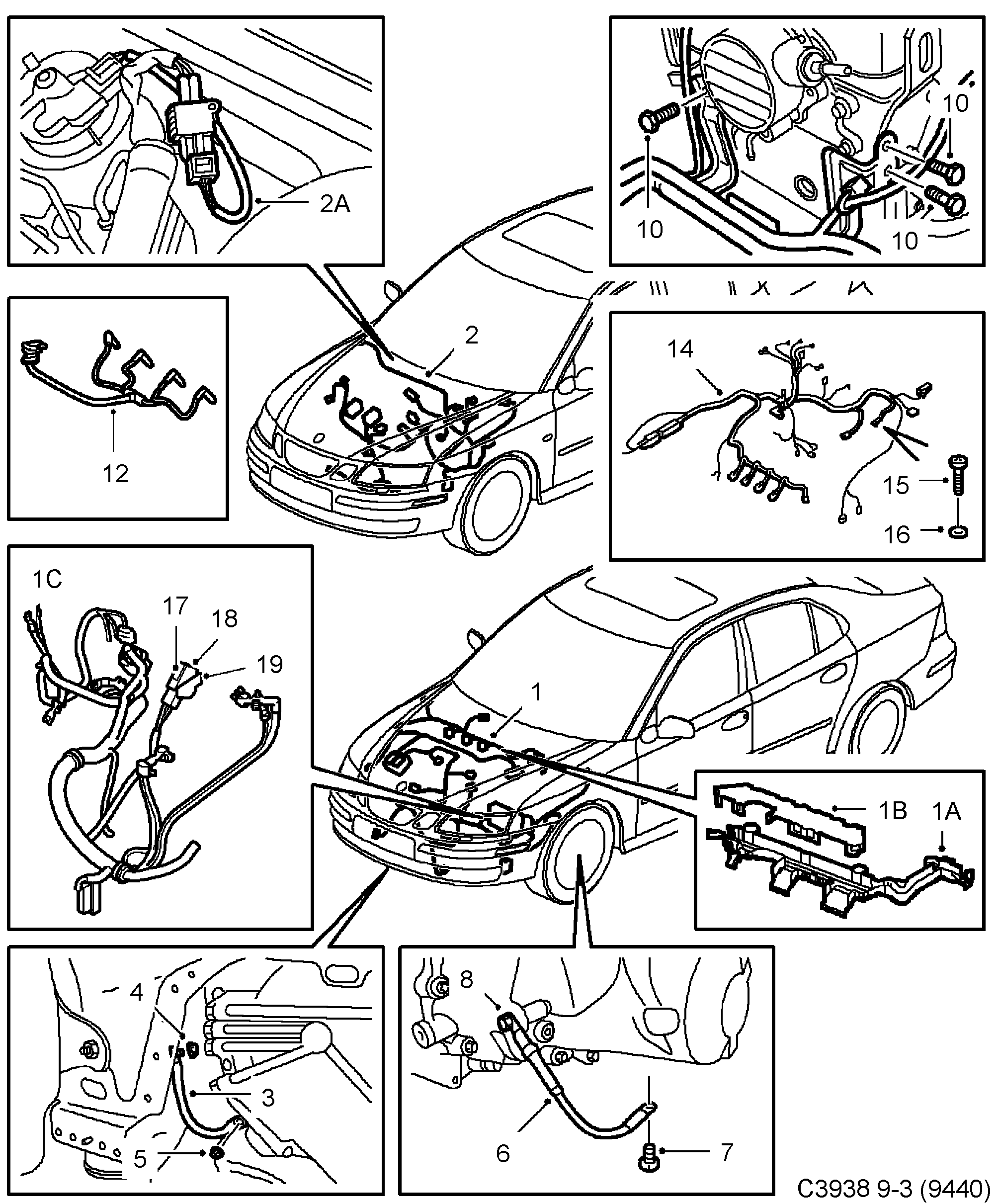

Group 3a Electrical, general, section 3160
| Pos | Article | Part No. |
|---|---|---|
| 1 | Cable harness | 12804569 |
| 1 | Engine wiring harness | 12805331 (replaces 12804568) |
| 1 | Cable harness | 12805330 |
| 1 | Cable harness | 12805331 |
| 1 | Engine wiring harness | 12757282 |
| 1 | Engine wiring harness | 12757283 |
| 1 | Engine wiring harness | 12757284 |
| 1 | Engine wiring harness | 12757285 |
| 1 | Engine wiring harness | 55352644 |
| 1A | Cable channel | 12788165 |
| 1B | Cable channel | 12791662 |
| 1C | Cable harness | 12803531 |
| 1C | Cable harness | 12758792 |
| 2 | Cable harness | 12802726 |
| 2 | Cable harness | 12804422 |
| 2 | Cable harness | 12804421 |
| 2 | Cable harness | 12803390 |
| 2 | Cable harness | 12803391 |
| 2 | Cable harness | 12760059 |
| 2 | Cable harness | 12760058 |
| 2 | Cable harness | 12760060 |
| 2A | Cable harness | 12799634 |
| 3 | Battery cable | 12785584 |
| 4 | Nut | 11900451 |
| 5 | Hexagon nut | 11900452 (replaces 92150134) |
| 7 | Hexagon screw | 11094891 (replaces 92151008) |
| 8 | Hexagon screw | 11900172 |
| 10 | Screw | 11900355 |
| 12 | Cable harness | 93184904 (replaces 93179524) |
| 12 | Cable harness | 93184904 |
| 14 | Cable harness | 93190051 (replaces 93188469) |
| 14 | Cable harness | 93190051 |
| 14 | Cable harness | 93184679 |
| Fuse holder | 24456174 | |
| 15 | Screw | 93183425 (replaces 93177360) |
| 16 | Washer | 93183425 (replaces 93177318) |
| 17 | Fuse | 5549332 |
| 18 | Fuse holder | 12804902 |
| 19 | Bracket | 12803552 |
