Saab 9-3 (9440) 2004-2011 Loudspeaker

Group 3a Electrical, general, section 2510

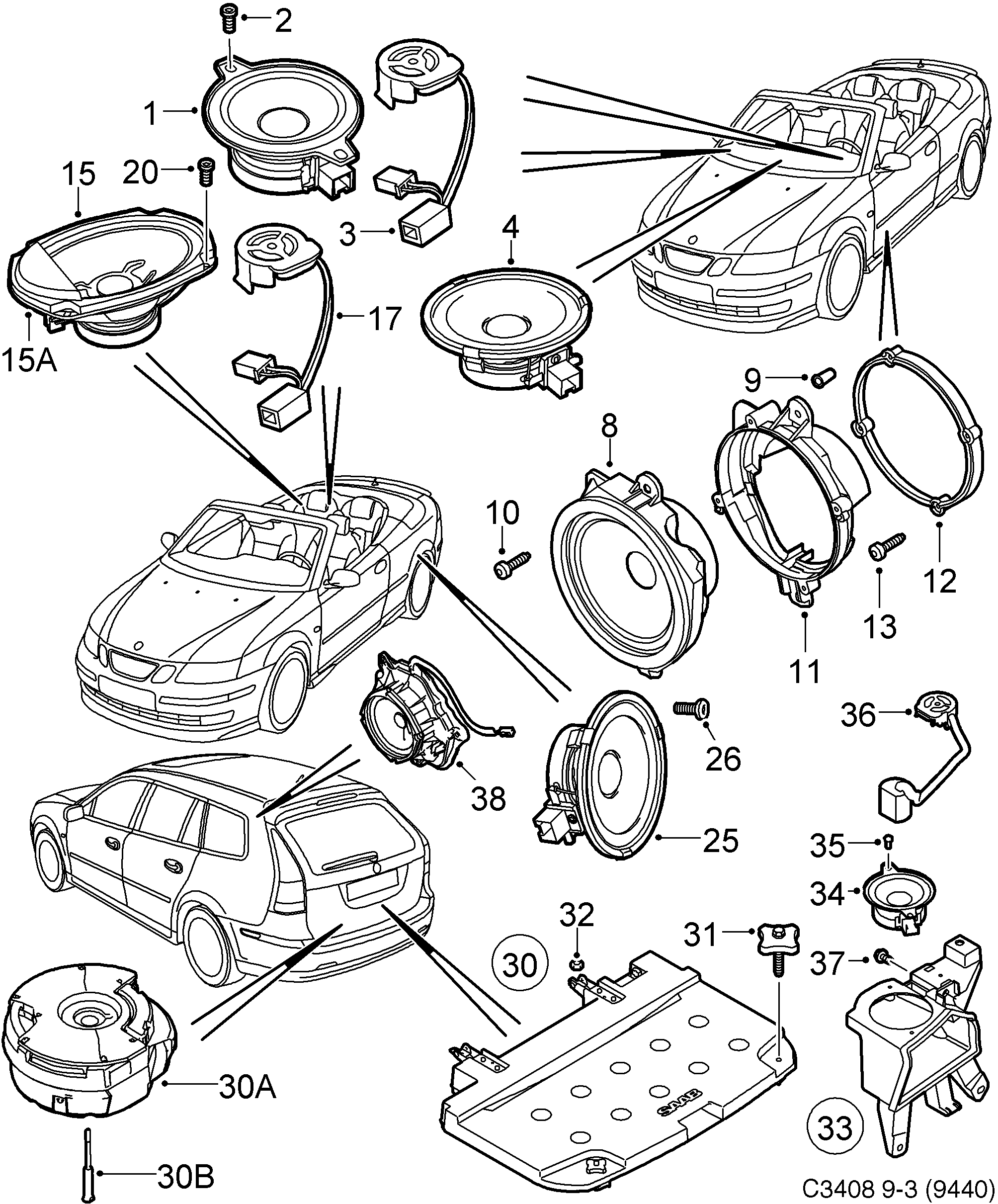

Saab 9-3 (9440) Loudspeaker diagram

Pos	Article	Part No.
1	Loudspeaker	12788054
2	Screw	12780283 (replaces 92152214)
2	Screw	12780283
1	Loudspeaker	12766126
3	Loudspeaker	12786607
4	Loudspeaker	12800757
4	Loudspeaker	12760154
8	Loudspeaker	12800321
8	Loudspeaker	12762493
8	Loudspeaker	12760155
8	Loudspeaker	12800322
8	Loudspeaker	12762494
8	Loudspeaker	12760156
8	Loudspeaker	12786609
8	Loudspeaker	12762266
8	Loudspeaker	12762267
	Foam part	12759557
	Seal	12759559
	Felt band	12759555
9	Nut	9130829 (replaces 92150375)
9	Rivet nut	9130829
10	Screw	92151601 (replaces 92150065)
10	Screw	92151603 (replaces 92150067)
10	Screw	11096471
10	Screw	92151601
10	Hexagon screw	12780621
11	Bracket	12766240
11	Bracket	12766241
12	Spacer ring	12768277
13	Screw	12771105
15	Loudspeaker	12786608
15	Loudspeaker	12762992
15A	Seal	12852811
20	Screw	92153219 (replaces 92150117)
20	Nut	11900428
25	Loudspeaker	12762991
26	Screw	12774509
30	Loudspeaker	12792505
31	Screw	12765962
32	Nut	11900451
30A	Loudspeaker	12769262
30B	Screw	12779260
33	Loudspeaker	12792504
33	Loudspeaker	12793823
33	Loudspeaker	12771488
33	Loudspeaker	12783371
33	Loudspeaker	12792902
33	Loudspeaker	12793824
33	Loudspeaker	12771489
33	Loudspeaker	12783370
35	Screw	11900491
37	Screw	92153216 (replaces 7982325)
38	Loudspeaker	12772516
38	Loudspeaker	12772517
