Saab 9-3 (9440) 2003-2011 Loudspeaker

Group 3a Electrical, general, section 2500

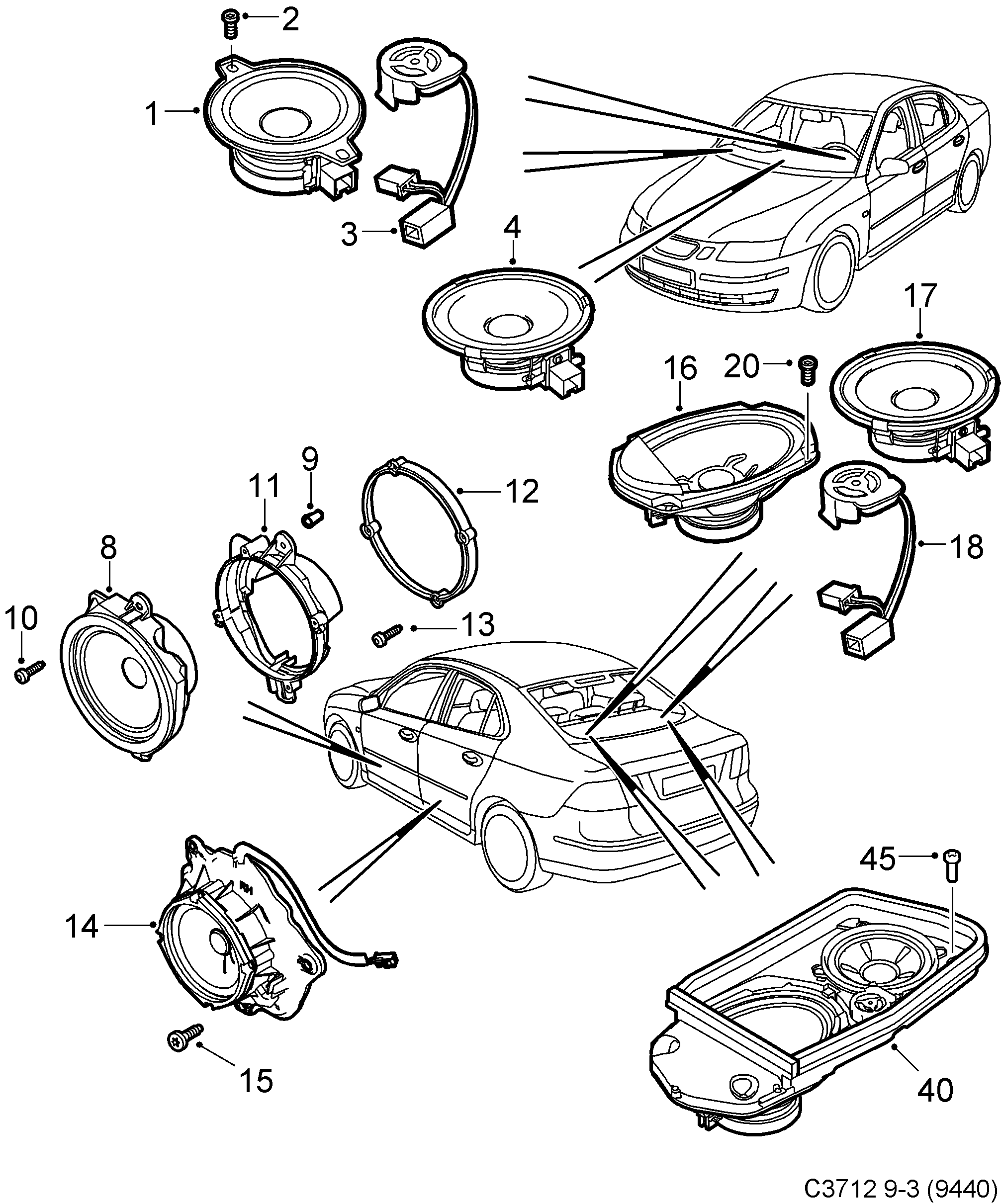

Saab 9-3 (9440) Loudspeaker diagram

Pos	Article	Part No.
1	Loudspeaker	12788054
1	Loudspeaker	12766126
2	Screw	12780283 (replaces 92152214)
2	Screw	12780283
3	Loudspeaker	12786607
4	Loudspeaker	12800757 (replaces 12786606)
4	Loudspeaker	12800757
4	Loudspeaker	12760154
8	Loudspeaker	12800321
8	Loudspeaker	12762493
8	Loudspeaker	12760155
8	Loudspeaker	12800322
8	Loudspeaker	12762494
8	Loudspeaker	12760156
9	Nut	9130829 (replaces 92150375)
9	Rivet nut	9130829
10	Screw	92151601 (replaces 92150065)
10	Screw	92151603 (replaces 92150067)
11	Bracket	12766240
11	Bracket	12766241
12	Spacer ring	12768277
13	Screw	12771105
14	Loudspeaker	12777293
14	Loudspeaker	12777294
15	Screw	92151603
16	Loudspeaker	12786608
17	Loudspeaker	12801615
20	Screw	92151596
40	Loudspeaker	12762485
40	Loudspeaker	12762486
40	Loudspeaker	12762964
40	Loudspeaker	12762966
45	Screw	92153222
