Saab 9-3 (9440) 2006-2011 Generator

Group 3a Electrical, general, section 230

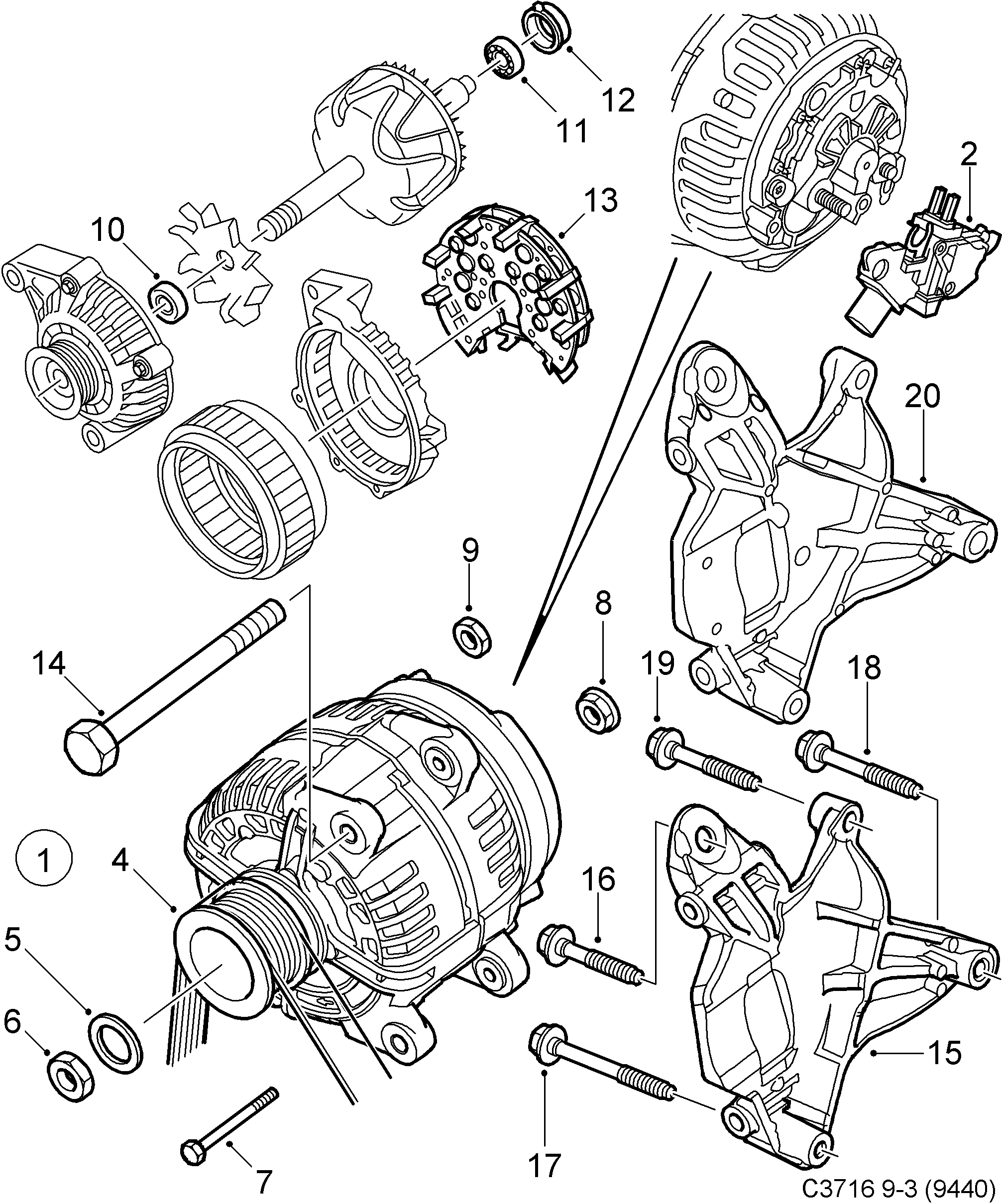

Saab 9-3 (9440) Generator diagram

Pos	Article	Part No.
1	Generator	93187415
1	Alternator	13258186
2	Voltage regulator	12793278
	Protective cap	12760887
4	Pulley	12760888
4	Pulley	93196557
7	Screw	93172430
8	Nut	93172450
9	Nut	93175984
10	Bearing	9117938
11	Bearing	9117940
12	Bearing carrier	93187675
13	Rectifier	93187685
	Cover washer	93187362
14	Screw	24447549
15	Bracket	55353631
16	Screw	55565774 (replaces 92151513)
16	Hexagon screw	11588739
17	Screw	11900022
18	Screw	92151520
19	Screw	92152433
20	Bracket	55565505
