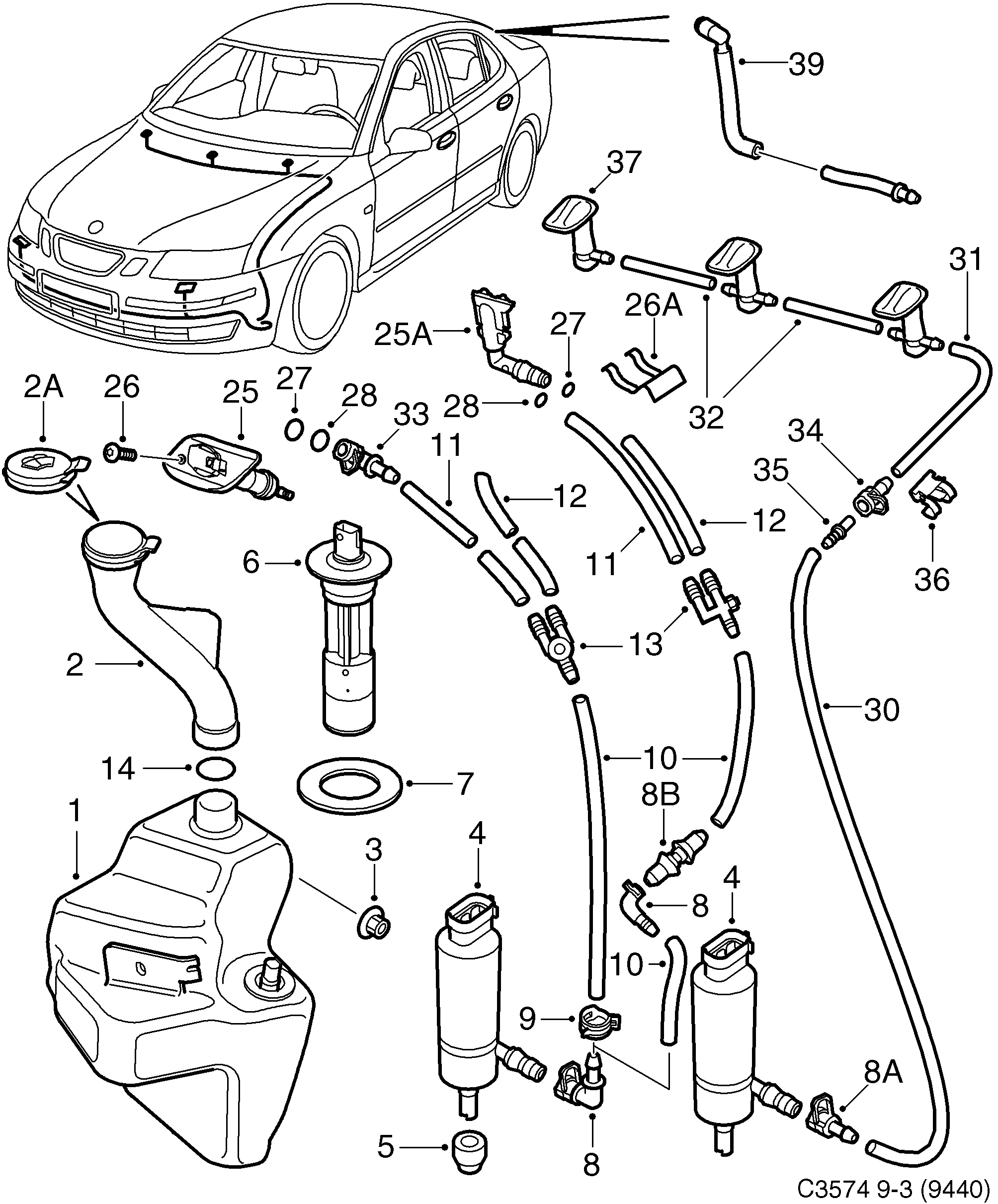

Group 3a Electrical, general, section 1800
| Pos | Article | Part No. |
|---|---|---|
| 1 | Washer fluid reservoir | 12791058 |
| 1 | Washer fluid reservoir | 12802446 |
| 1 | Washer fluid reservoir | 12802444 |
| 1 | Washer fluid reservoir | 12791689 |
| 1 | Washer fluid reservoir | 12802445 |
| 1 | Washer fluid reservoir | 12802443 |
| 2 | Filler pipe | 12788572 (replaces 12785527) |
| 2 | Filler pipe | 12801969 |
| 2 | Filler pipe | 12788571 |
| 2 | Filler tube | 12765976 |
| 2 | Filler tube | 12822891 |
| 2A | Cover | 12767700 (replaces 12788573) |
| 2A | Cover | 12767700 |
| 3 | Hexagon nut | 11089474 |
| 3 | Nut | 11609411 |
| 4 | Washer pump | 90508709 (replaces 12788695) |
| 4 | Washer pump | 12782867 (replaces 12802440) |
| 4 | Washer pump | 12782867 |
| 4 | Washer pump | 12782868 (replaces 12802439) |
| 4 | Pump | 12782868 (replaces 12763886) |
| 4 | Pump | 12782868 |
| 4 | Washer pump | 12802441 |
| 5 | Bushing | 9186037 (replaces 12787616) |
| 5 | Bushing | 12802442 |
| 6 | Level sender | 12788696 |
| 7 | Bushing | 12787615 |
| 8 | Snap-on coupling | 90582110 |
| 8 | Connection device | 90507653 |
| 8A | Snap-on coupling | 12787618 |
| 8B | Snap-on coupling | 12803974 |
| 9 | Hose clamp | 92151161 |
| Hose | 12791826 | |
| Hose | 12762220 | |
| 13 | Junction pipe | 9114696 |
| 13 | Junction pipe | 12803975 |
| 14 | O-ring | 12788574 |
| 14 | O-ring | 12802447 |
| 25 | Headlamp washer | 12785533 |
| 25A | Headlamp washer | 12803972 |
| 25A | Headlamp washer | 12803972 (replaces 12763888) |
| 25 | Headlamp washer | 12785534 |
| 25A | Headlamp washer | 12803973 |
| 25A | Headlamp washer | 12803973 (replaces 12763889) |
| 26 | Screw | 92153219 (replaces 92150385) |
| 26 | Screw | 92153219 (replaces 92150384) |
| 26A | Clip | 90508376 |
| 27 | O-ring | 12791591 (replaces 12791590) |
| 28 | O-ring | 12791591 |
| Hose | 12788576 | |
| 34 | Snap-on coupling | 12787619 |
| 35 | Snap-on coupling | 12788577 |
| 36 | Clip | 92152278 |
| 37 | Nozzle | 12778850 (replaces 12788630) |
| 37 | Nozzle | 12778850 |
| 37 | Nozzle | 12778849 (replaces 12788631) |
| 37 | Nozzle | 12778849 |
| 39 | Hose | 12767672 |
