Saab 9-3 (9440) 2003-2005 Windshield wiper

Group 3a Electrical, general, section 1701

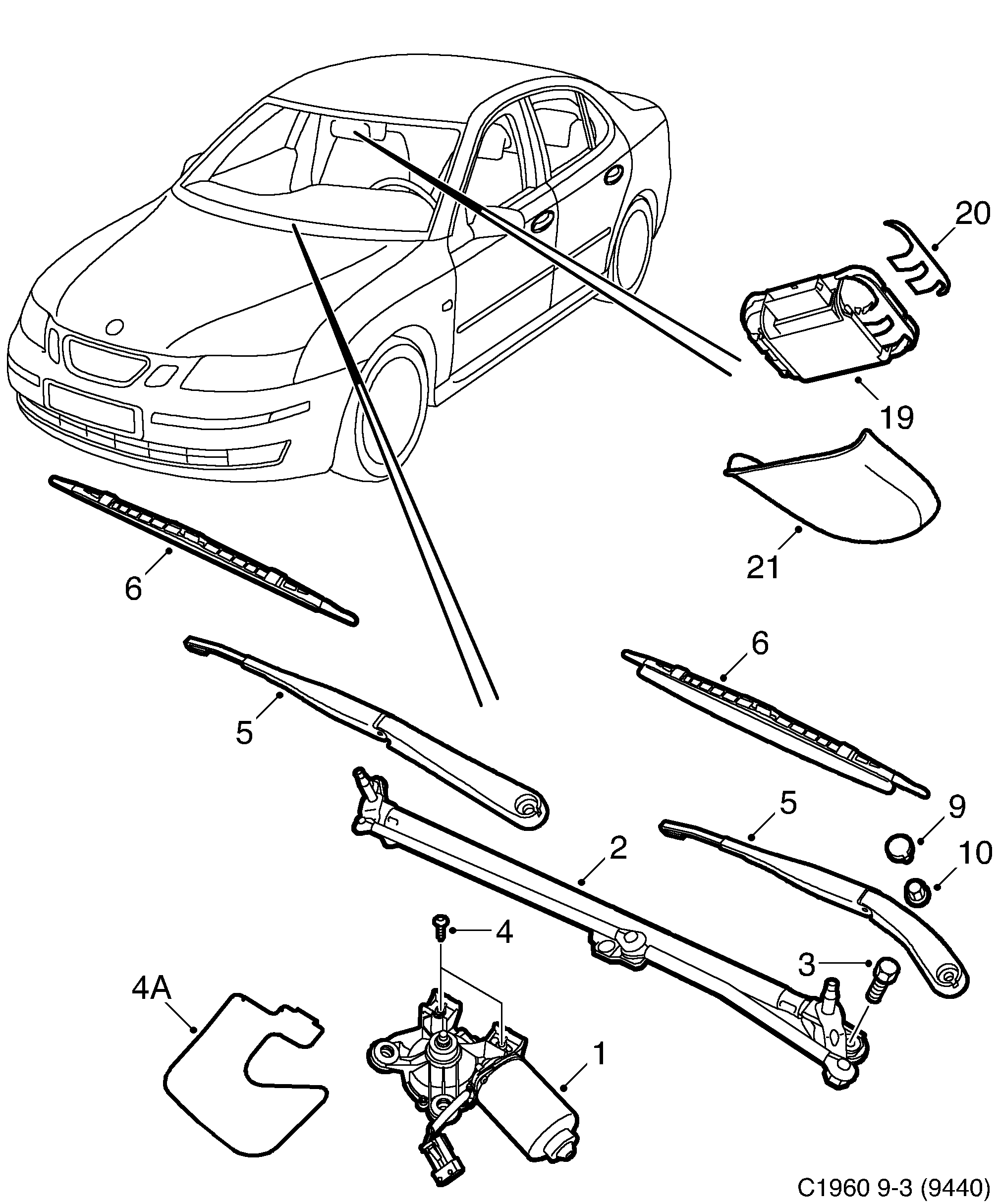

Saab 9-3 (9440) Windshield wiper diagram

Pos	Article	Part No.
1	Electrical motor	12805859
2	Spindle frame	12755304 (replaces 12785919)
2	Spindle frame	12755305 (replaces 12785932)
3	Hexagon screw	12785920
4	Screw	93171522
4A	Cover	12796162
5	Wiper arm	12755306 (replaces 12785925)
5	Wiper arm	12755309 (replaces 12802481)
5	Wiper arm	12755307 (replaces 12785933)
5	Wiper arm	12755310 (replaces 12802482)
5	Wiper arm	12755308 (replaces 12785929)
5	Wiper arm	12755311 (replaces 12802483)
6	Wiper blade	93196010 (replaces 12755312)
6	Wiper blade	93196010 (replaces 12755313)
6	Wiper blade	93196007 (replaces 12755314)
6	Wiper blade	93196007 (replaces 12755315)
6	Wiper blade	12800768
6	Wiper blade kit	93194638
6	Wiper blade kit	93194639
9	Nut cap	12785917
9	Nut cap	90347857
10	Nut	11900429
19	Sensor	12803629 (replaces 12785535)
19	Sensor	12803629
20	Latch	12799937
21	Cover	12796773
