Saab 9-3 (9440) 2003-2007 Tail light

Group 3a Electrical, general, section 1200

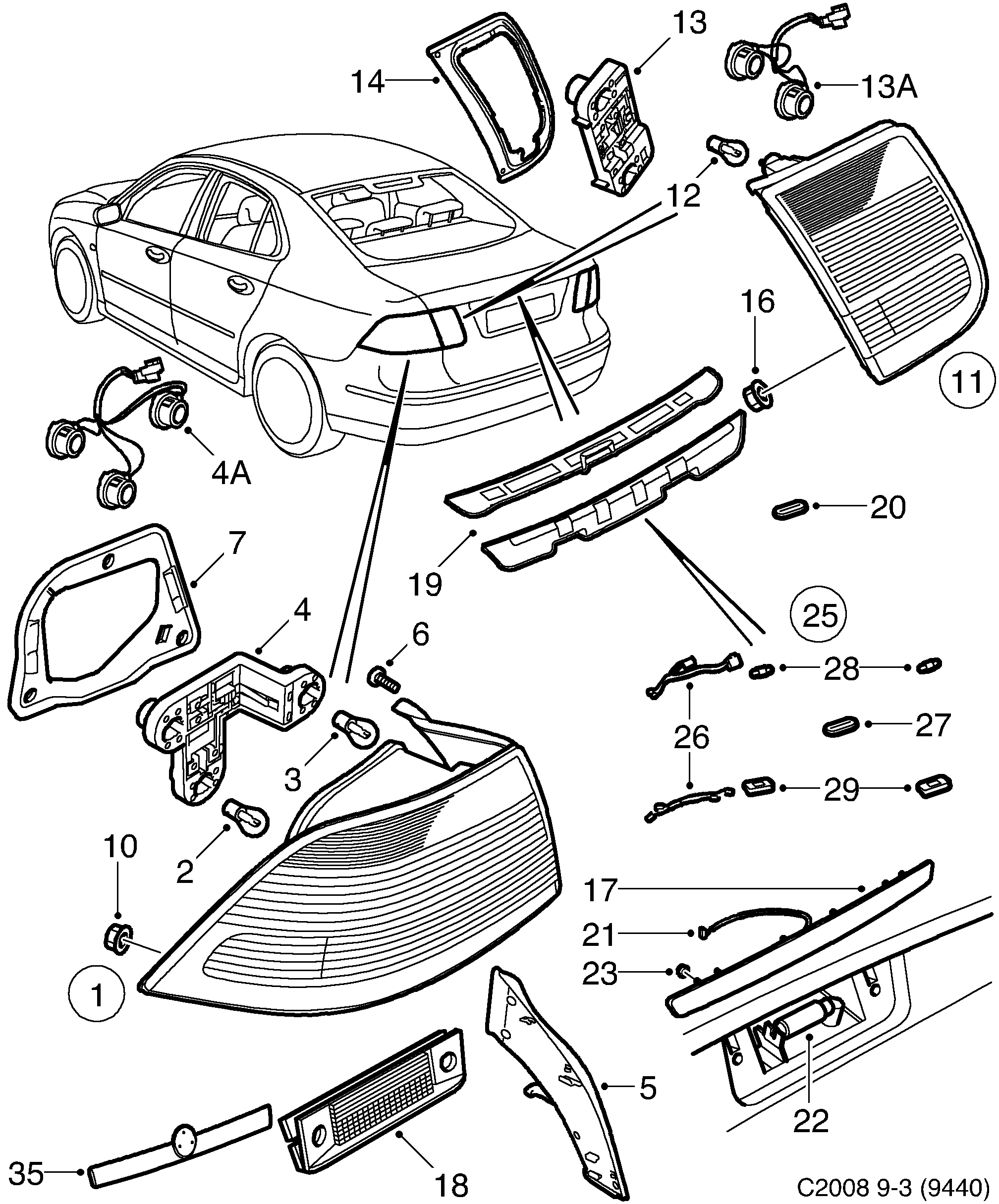

Saab 9-3 (9440) Tail light diagram

Pos	Article	Part No.
1	Tail light	12777312 (replaces 12785759)
1	Tail light	12777312
1	Tail light	12777313 (replaces 12785761)
1	Tail light	12777313
1	Tail light	12777325 (replaces 12830373)
1	Tail light	12777325
1	Tail light	12777326 (replaces 12830938)
1	Tail light	12777326
2	Bulb	93190465 (replaces 12795069)
2	Bulb	93190465
3	Bulb	93169011 (replaces 12795072)
4	Bulb socket	12788634
4	Bulb socket	12788637
4A	Cable harness	12831674
5	Cover	12833864
5	Cover	12833865
6	Screw	12833866
7	Seal	12831059
7	Seal	12788633
10	Nut	11089471
10	Hexagon nut	11089474
10	Nut	11900451
11	Lamp	12785763
11	Tail light	12785763 (replaces 12777308)
11	Lamp	12777310 (replaces 12785764)
11	Tail light	12777310
11	Lamp	12777311 (replaces 12785765)
11	Tail light	12777311
11	Lamp	12785766
11	Tail light	12785766 (replaces 12777309)
11	Lamp	12777323 (replaces 12831281)
11	Lamp	12777323
11	Lamp	12777324 (replaces 12831282)
11	Lamp	12777324
13	Bulb socket	12788641
13	Bulb socket	12798237
13A	Cable harness	12831690
14	Seal	12831687
14	Seal	12788642
14	Seal	12788645
17	Cover	12788550
18	Lens	12794597
19	Outside handle	12794599
20	Handle	12794600
21	Cable network	12803139
22	Bulb	93190473 (replaces 12795073)
25	Outside handle	12833570
	Retaining spring	12794598
	Seal	12803376
26	Cable network	12833950
35	Cover	12833569
