Saab 9-3 (9440) 2003-2011 Battery

Group 3a Electrical, general, section 100

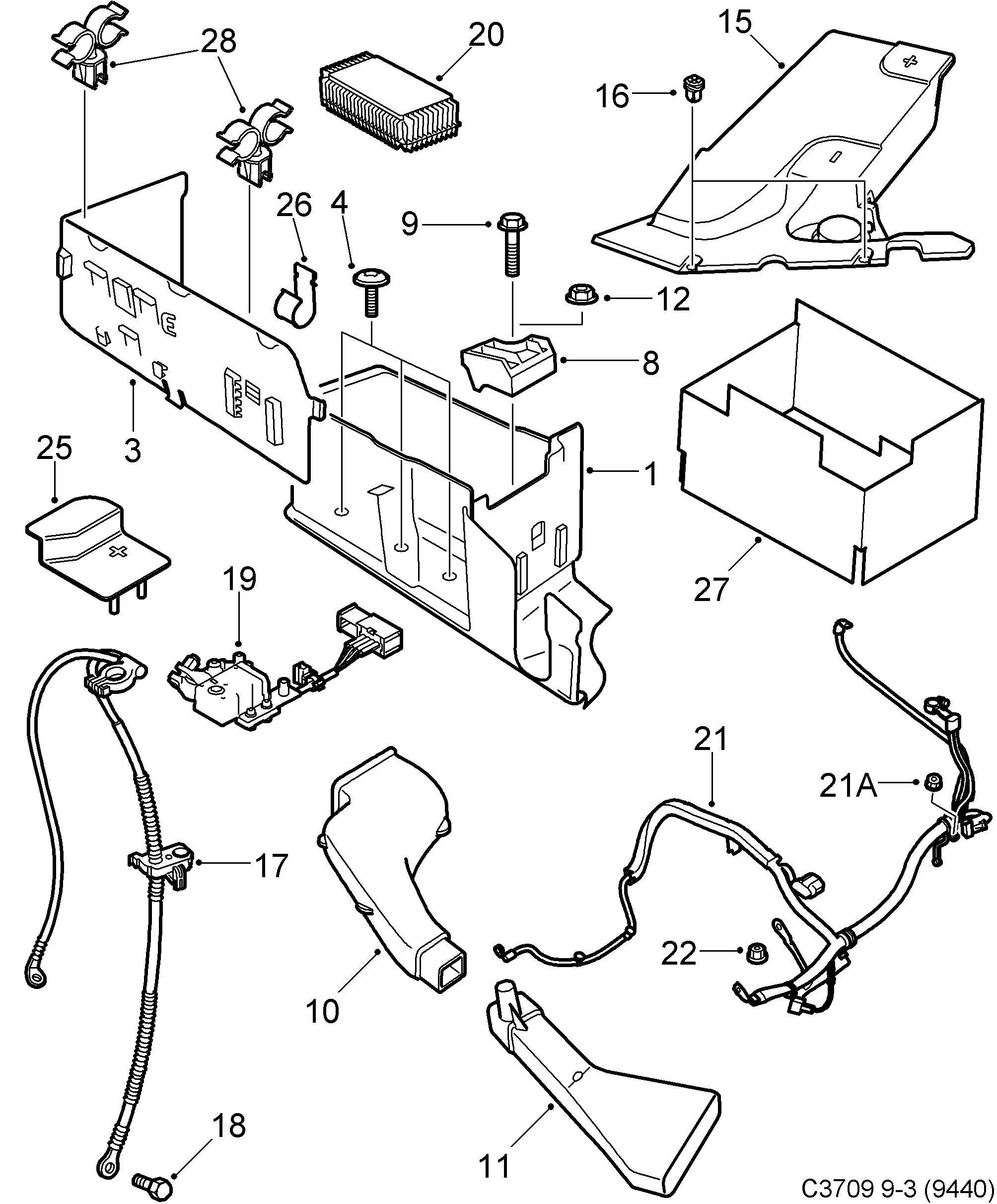

Saab 9-3 (9440) Battery diagram

Pos	Article	Part No.
1	Battery tray	12761146 (replaces 12789449)
1	Battery tray	12761146
1	Battery tray	12760209
3	Heat shield	12786705
4	Screw	92152299
8	Battery retainer	12793818
9	Hexagon screw	11900179
8	Clamp	12760512
10	Air duct	12766745 (replaces 12788923)
10	Air duct	12766745
11	Air duct	12790911
12	Nut	92153045
15	Battery cover	12789451
15	Heat shield	12771193
15	Heat shield	12766289
15	Cover	12771194
16	Hexagon nut	12792092
17	Ground cable	12804552 (replaces 12785583)
17	Ground cable	12804552
17	Ground cable	12779162
17	Ground cable	12821545
	Nut	11900452
	Hexagon nut	11104191
18	Hexagon screw	92152121
18	Hexagon screw	92153213
19	Battery main switch	12791308
20	Relay	55354141 (replaces 9132691)
21	Plus wire	12799233
21	Battery cable	55566072
21	Battery cable	55565568
21	Battery cable	12847901
21	Plus wire	55566060 (replaces 12799234)
21	Battery cable	55566060
21	Battery cable	55566073
21	Battery cable	55565567
21	Battery cable	55563072
21	Battery cable	55563382
21	Battery cable	12782139
21	Battery cable	12847900
21	Battery cable	12782138
21	Battery cable	5604020
21	Battery cable	5604012
21A	Nut	11900451
25	Cover	90053991
26	Clamp	12805557
27	Insulation	12782451
28	Clip	12781509
