Saab 9-3 (9440) 2003-2004 Crankshaft Piston

Group 2 Engine, section 960

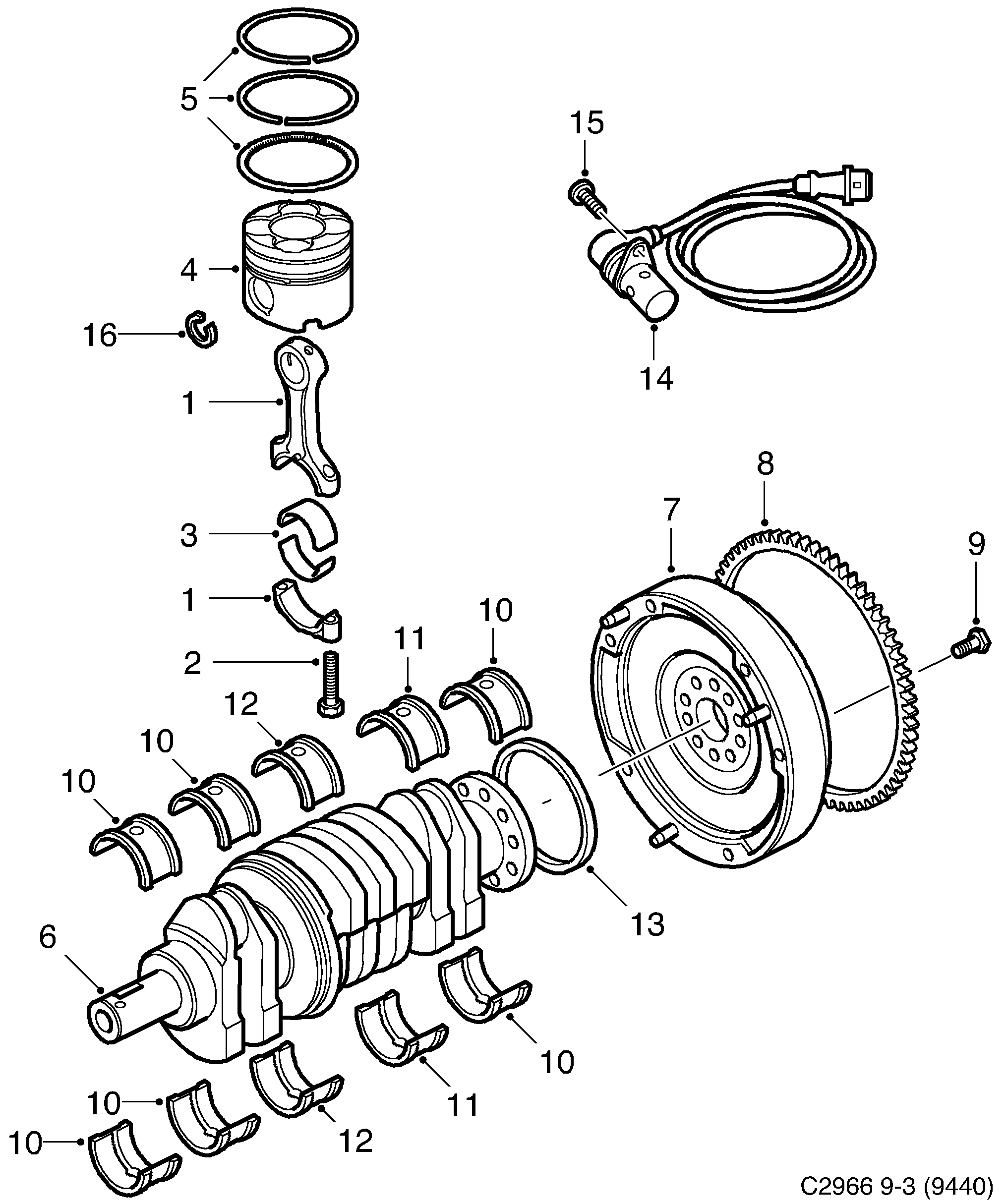

Saab 9-3 (9440) Crankshaft Piston diagram

Pos	Article	Part No.
1	Connecting rod	90528646
2	Screw	90467192
3	Con.bearing	93170296
3	Con.bearing	93170297
4	Piston	9158545 (replaces 5342266)
4	Piston	9158546
4	Piston	9158547
4	Piston	5342415
4	Piston	5342191
4	Piston	9128052
5	Piston ring kit	9196520
5	Piston ring kit	9196523
6	Crankshaft	24439871
7	Flywheel	93173058
7	Flywheel	24410096
9	Screw	9192342
9	Screw	90295195
10	Main bearing	93170278 (replaces 5342811)
10	Main bearing	93170279 (replaces 5343264)
11	Main bearing	93170284 (replaces 5343421)
11	Main bearing	93170285 (replaces 5343439)
12	Main bearing	93170320 (replaces 5343710)
12	Main bearing	93170321 (replaces 5343728)
13	Sealing ring	90570322
14	Crankshaft position sensor	90540188
15	Screw	11093881
16	Lock ring	90500815
