Saab 9-3 (9440) 2003-2011 Transmission Balance shaft

Group 2 Engine, section 800

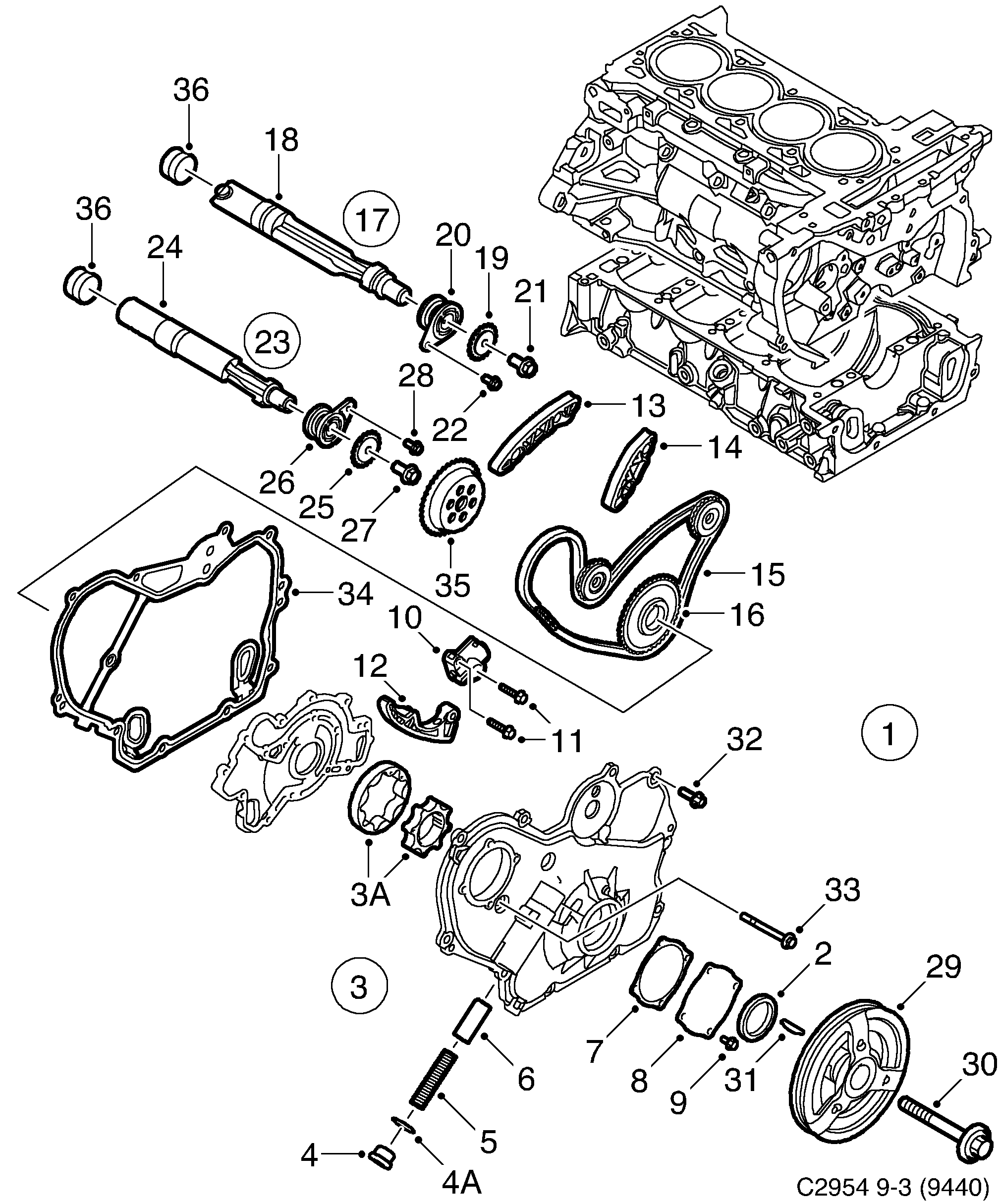

Saab 9-3 (9440) Transmission Balance shaft diagram

Pos	Article	Part No.
1	Cover	93166701
2	Seal	90571925
3	Pump kit	24434093
4	Screw plug	12582068 (replaces 90537361)
4	Screw plug	12582068
4A	Seal	11093042
5	Spring	90537371
7	Gasket	90537915
8	Cover	90537266
9	Screw	11518061
17	Balance shaft	90537565 (replaces 24433720)
17	Balance shaft	90537565
18	Balance shaft	90537560
19	Chain gear	55354439 (replaces 90537435)
19	Chain gear	55354439
20	Bearing housing	12587220 (replaces 90537456)
20	Bearing	12587220
21	Screw	11518054
22	Screw	11518449
23	Balance shaft	90537566 (replaces 24433721)
23	Balance shaft	90537566
24	Balance shaft	90537561
25	Chain gear	55354438 (replaces 90537295)
25	Chain gear	55354438
26	Bearing housing	12587219 (replaces 90537455)
26	Bearing	12587219
29	Pulley	55355289 (replaces 12787628)
29	Pulley	55355289
29	Absorber	55563981
30	Screw	11589123 (replaces 90537363)
30	Hexagon screw	11589123
31	Woodruff key	24424855
32	Screw	11518075
33	Screw	11518057
34	Gasket	24435052
36	Bearing	90537903 (replaces 90537559)
36	Bearing bushing	90537903
36	Bearing	12581395
