Saab 9-3 (9440) 2005-2010 Transmission

Group 2 Engine, section 775

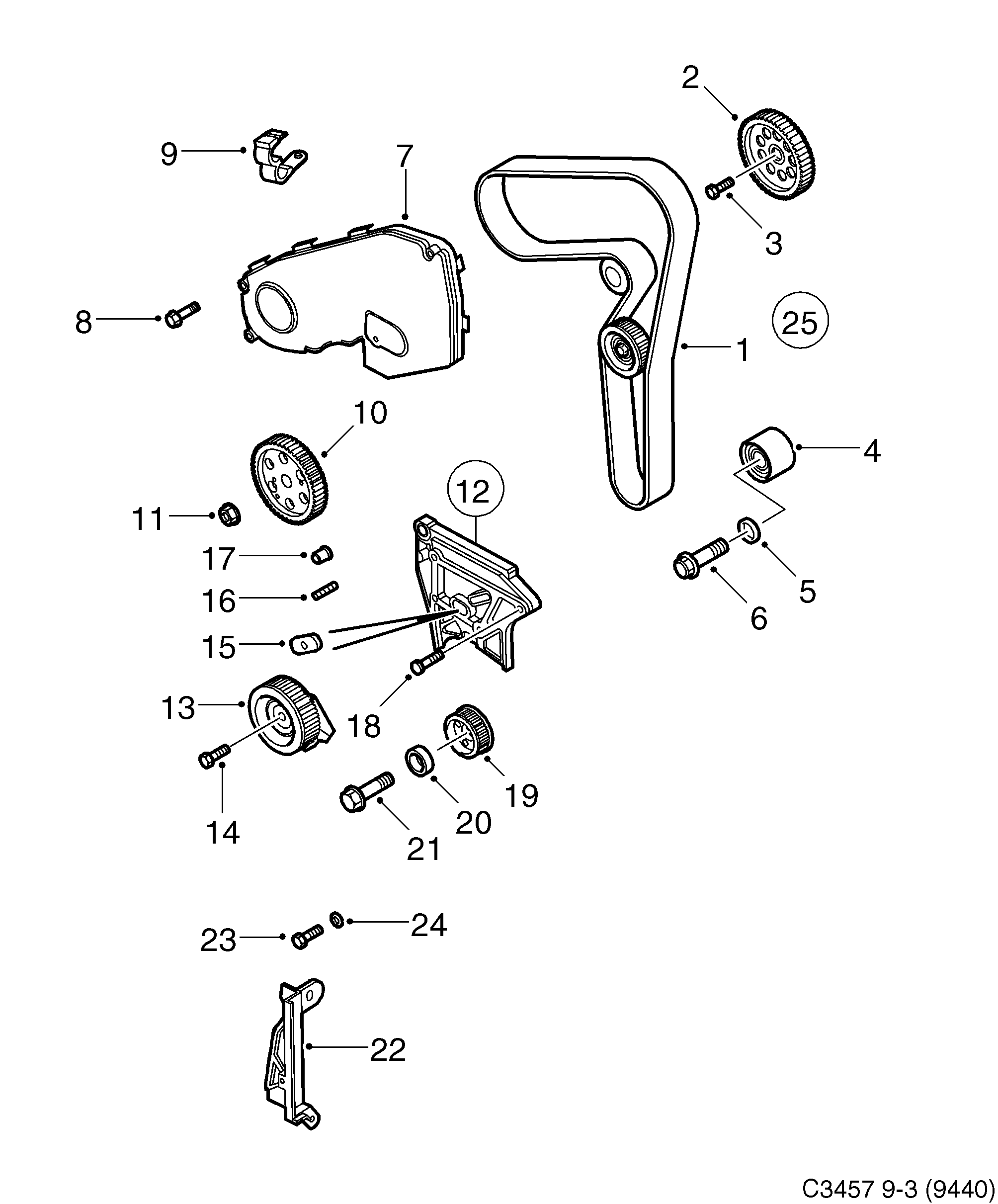

Saab 9-3 (9440) Transmission diagram

Pos	Article	Part No.
1	Tooth belt	93185336 (replaces 93178811)
1	Tooth belt	93185336
2	Chain gear	93178379
3	Screw	93177298
4	Guide roller	93178807
5	Washer	93178972
6	Screw	93178810
7	Timing gear casing	93194303 (replaces 93178830)
7	Cover	93194303
8	Screw	93177417
9	Bracket	93181853
10	Chain gear	93178822
11	Nut	93178824
12	Bracket	93180601 (replaces 93178825)
12	Bracket	93180601
13	Belt tensioner	55212159 (replaces 93181966)
13	Tension pulley	55212159 (replaces 93186866)
14	Screw	93178814
15	Nut	93178813
16	Screw	93178973
17	Spacer ring	93178974
18	Screw	93178829
19	Crankshaft gear	93178820
20	Spacer ring	93178818
21	Screw	93178819
22	Bracket	93178834
23	Screw	93178832
23	Screw	55203150
23	Screw	93178833
24	Washer	93178831
25	Engine timing parts, kit	93191277
	Screw	93183423
