Saab 9-3 (9440) 2004-2009 Transmission

Group 2 Engine, section 750

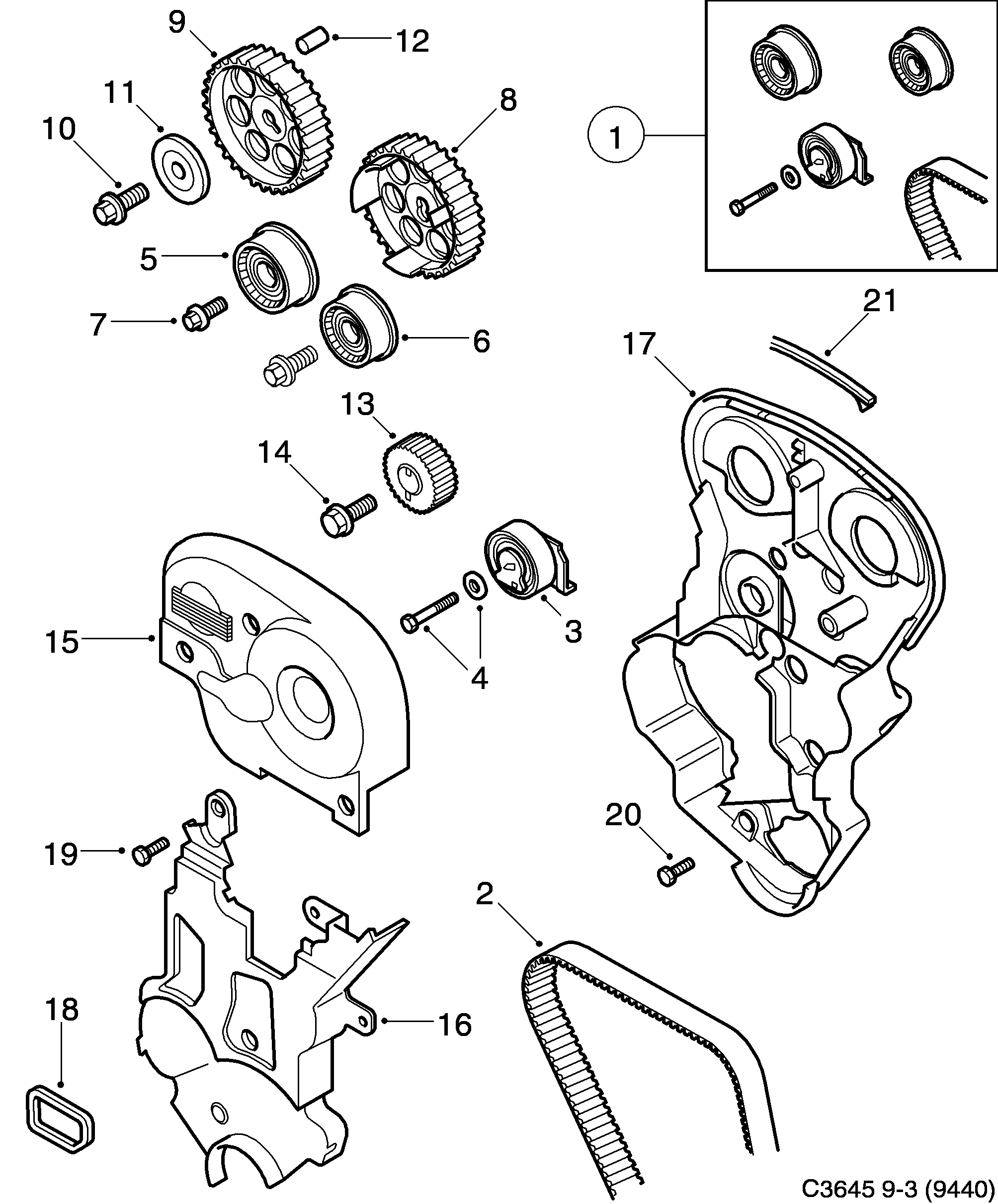

Saab 9-3 (9440) Transmission diagram

Pos	Article	Part No.
1	Engine timing parts, kit	93185845
2	Tooth belt	24451895
3	Belt tensioner	55567191 (replaces 24426500)
4	Screw	24447883
5	Idler pulley	55350580
6	Idler pulley	55352713
7	Screw	11093601
8	Chain gear	90528768
9	Chain gear	90536058
10	Screw	11095031
11	Thrust washer	90108392
12	Pin	11055129
13	Chain gear	9129207
14	Screw	24447224
15	Timing gear casing	90530913
16	Timing gear casing	24455145
17	Timing gear casing	90530912
18	Seal	90530915
19	Screw	11093881
20	Screw	9158567
21	Seal	90412966
